GEZE Powerturn Installation Manual page 7
Mechanism for integrated closing sequence control
Hide thumbs
Also See for Powerturn:
- Installation manual ,
- Wiring diagram (98 pages) ,
- Installation and service instructions manual (56 pages)
Advertisement

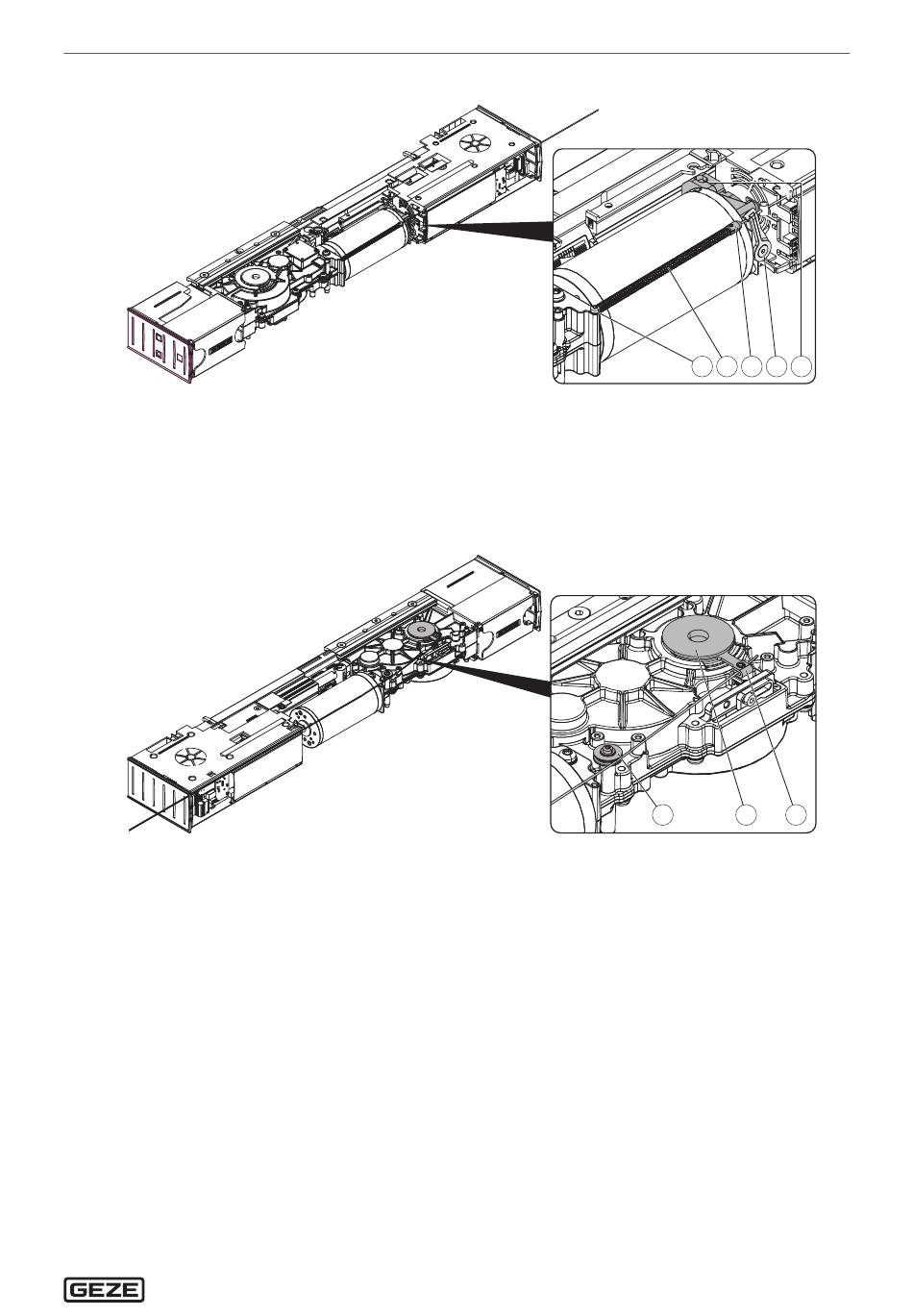

Powerturn mechanism for integrated closing sequence control
6.2.5 Active leaf drive transom installation opposite hinge side DIN right
1
Brake unit
2
Setting lever
3
Wire cable tensioner
4
Tension spring for tautening the wire cable
5
Spring attachment
6.2.6 Passive leaf drive transom installation opposite hinge side DIN left
1
Rocker for integrated closing sequence control
2
Wire cable guide roller
3
Integrated closing counterpiece
Product description
5
4
3
2
1
2
3
1
7
