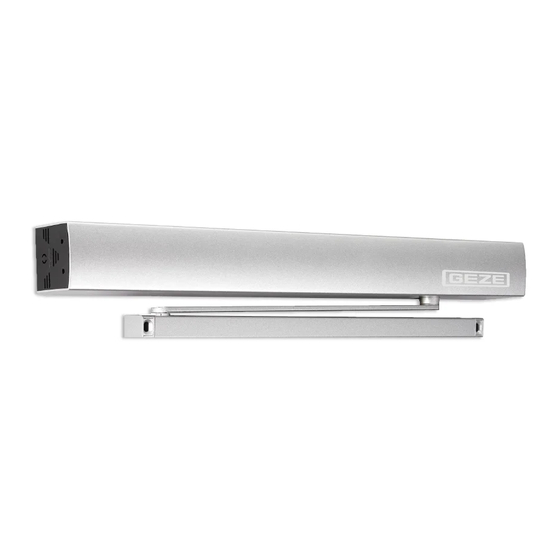

  • Page 1 ECturn GB Wiring diagram...

  • Page 2: Table Of Contents

    ECturn Table of contents Symbols and means of representation ......................4 Warnings ..........................................4 Further symbols and means of representation ............................4 Validity ..................................4 Product liability ................................4 Notes ....................................5 Important safety instructions ..................................5 Installation notes ......................................5 Safety-conscious working ....................................5 Inspection of installed system ..................................5 Disposal of the door system..................................6...
  • Page 3 Commissioning the drive with GC 338 ..............................27 Parameter menu ..............................28 20.1 Value table for service LEDs and display programme switch ......................30 Fault messages ..............................31 ECturn system ................................ 33 22.1 Transom installation ..................................... 33 22.2 Door leaf installation ....................................33 22.3...

  • Page 4: Symbols And Means Of Representation

    Symbols and means of representation ECturn Symbols and means of representation Warnings In these instructions, warnings are used to warn against material damage and injuries. Always read and observe these warnings. Observe all the measures that are marked with the warning symbol and warning word.

  • Page 5: Notes

    à Only specialists authorised by GEZE are permitted to carry out installation, commissioning and maintenance work. à If unauthorised changes made to the system, GEZE cannot be made liable in any way whatsoever for any resulting damages. à GEZE is not liable if products from other manufacturers are used with GEZE equipment. In addition, only origi- nal GEZE parts may be used for repair and maintenance work.

  • Page 6: Disposal Of The Door System

    Please return waste batteries and rechargeable bat- teries to a communal collection point or retailer. Following use, you may return any batteries or rechargeable batteries received from us by post. The address is: GEZE GmbH, Incoming Goods, Reinhold-Vöster-Str. 21-29, 71229 Leonberg/Germany. Abbreviations Wire colours...

  • Page 7: Supply Terminals

    ECturn Supply terminals Supply terminals RS485 RS4 8 5 - B T ST RS4 8 5 - A 2 4 VSENS 2 4 V PA1 B P E1 PA1 A 2 4 V 24VTOE 2 4 VSENS T ST 2 4 VSENS...

  • Page 8: Safety Sensor Opening And Closing

    Safety sensor opening and closing ECturn Safety sensor opening and closing à At detection the output of the sensors is open (GND is applied to the SIS or SIO input). Check function and correct setting of the sensors when putting into service and when servicing the assembly.

  • Page 9: Safety Sensor Gc 334

    ECturn Safety sensor opening and closing 6.1.2 Monitoring opening à Sensor for monitoring the opening of the door. Mount on the hinge side of the door leaf. Connection of the GC 338 sensor as for "opening and closing", but the second sensor strip (S and E) is not ap- plicable.
  • Page 10 Safety sensor opening and closing ECturn 6.2.1 Monitoring opening and closing Set the parameters: à 13 (safety closing) to for "SIS" or to for "SIS and K". à 14 (safety opening) to for "SIO". à 15 (testing) to for "testing with GND"...

  • Page 11: Safety Sensor Gc 335

    ECturn Safety sensor opening and closing Safety sensor GC 335 à GC 335 master module, mat. no. 128074 GC 335 Extension kit (slave module with accessories), mat. no. 128072 à Follow mounting instructions à Accessories: à GC 332 adapter, mat. no. 124035 à Spotfinder, mat. no. 112321 Use the test specimen, mat. no. 120190, to set the sensing field.

  • Page 12: Contact Sensor Authorised

    Contact sensor authorised ECturn 6.3.2 Monitoring opening Set the parameters: GC335 à Set 13 (safety closing) to for "no SIS". Slaves à Set 14 (safety opening) to for "SIO". à Set 15 (testing) to for "testing with 24V". 60mA 24VSENS...

  • Page 13: Contact Sensor

    ECturn Contact sensor Contact sensor à The K input is only active in the AU mode of operation. à The contact sensor function can also be actuated via the radio module WRB-5, Channel 1 (see chapter 10.1.1, “Radio channel FK1”).

  • Page 14: Push Button (Potential-Free Contact)

    Push And Go ECturn Push button (potential-free contact) à Plastic elbow switch, white, mat. no. 114078 à Plastic elbow switch, stainless steel, mat. no. 114077 4VSENS à Stainless steel elbow switch, mat. no. 119899 à Stainless steel elbow switch LS 990, surface-mounted, mat.

  • Page 15: Radio Control

    ECturn Radio control Radio control Observe the installation and service instructions of the GEZE Automatic Wireless Programme, mat. no. 135193. à Radio reception board WRB-5, mat. no. 135170 à 1-channel wireless transmitter WTH-1, mat. no. 131209 WRB-5 STAT à 2-channel wireless transmitter WTH-2, mat. no.

  • Page 16: Configurable Input

    Configurable input ECturn Configurable input PE is a configurable input. The function can be set via the service menu (see chapter 20, “Parameter menu”). 11.1 Sabotage à The configurable input PE can be used as a sabotage input e.g. for monitoring a contact sensor authorised with sabo- tage contact.

  • Page 17: Stop

    ECturn Programmable output 11.4 Stop à The configurable input PE can be used as the stop input. à When the stop switch is actuated, the contact is closed (24 V applied to the PE input). à The door stops immediately as soon as the switch is acti- vated.

  • Page 18: Fault

    Programmable output ECturn 12.2 Fault Set the parameters: à Set 10 (configurable output) to for the PA1B "fault" function. à The output contact closes as soon as the con- PA1A trol detects a system fault. At the same time the...

  • Page 19: Further Functions

    à LEDs (1) for mode of operation display an error code if a fault occurs (see chapter 21, “Fault messages”). à The mode of operation shop closing-time is not available with ECturn. à OF, NA, AU, DO modes of operation Follow installation instructions, mat.

  • Page 20: Mains Connection

    Mains fuse provided on site Main switch provided on site (optional) Earth-pin power socket (provided on site) ECturn door drive 14.3 Door leaf installation à Door transmission cable ECturn, mat. no. 135307 DCU702 GN/YE GN/YE Mains fuse provided on site...

  • Page 21: Motor

    Set the operating mode to OFF. Switch off the drive at the power switch or unplug the earth-pin power plug from the mains socket. Remove the rechargeable battery plug at the DCU700 control. à DCU700 ECturn battery, mat. no. 131473 AKKU AKKU 19,2 V à...

  • Page 22: Control

    Opening of the control and removal of the control circuit board DCU700 as well as connection of the PCB DCU702 to the power pack of the control may only be carried out by GEZE-authorised personnel. à Connection board DCU702, mat. no. 132444 The connection board DCU702 is located in the side cap of the drive.

  • Page 23: Low-Energy Operation - Automatic Operation

    "1-leaf single-action door with guide rail, low-energy operation" (factory setting). à or to for "1-leaf single action door with link arm, low-energy operation". The range of application of the ECturn is limited to: à Leaf weight < 120 kg à 0.6 m < Leaf width < 1.1 m This limiting case is used for the presetting of low-energy operation.

  • Page 24: Automatic Operation

    Low-energy operation – automatic operation ECturn 18.1.1 Optimising of the speeds in low-energy operation Higher speeds can be set for lighter and/or narrower door leaves. The diagram shows the maximum speeds al- lowed depending on the leaf width and leaf weight.

  • Page 25: Closing Torque And Door Closing Function

    ECturn Commissioning and service 18.3 Closing torque and door closing function A constant closing torque in the range of 0 to 14 Nm can be set using parameter 22 . This closing torque then acts constantly in the closed position and if the door is opened manually (Push And Go deactivated).

  • Page 26: Service Buttons S1 And S2

    Reset the values to the factory settings Set parameter 24 (factory settings) to 19.3 Pre-conditions for commissioning à Installation is complete (see installation instructions ECturn, mat. no. 134078). à Electrical installation is complete. à Sensors are correctly programmed and aligned.

  • Page 27: Commissioning The Drive With Gc 338

    ECturn Commissioning and service End learning: à With S1, S2: Press button S1 for 2 s. à With DPS: Press the  button. A confirmation signal will sound. The opening angle of the door is now known to the control.

  • Page 28: Parameter Menu

    Parameter menu ECturn Parameter menu No. DPS Service LEDs Parameters Encoding Value ○ ○ ○ ● Opening speed 01 02... 10 9°/s, 18 °/s, ..., 90°/s ○ ○ ● ○ 01 02... 10 9°/s, 18 °/s, ..., 90°/s Closing speed ○...
  • Page 29 ECturn Parameter menu No. DPS Service LEDs Parameters Encoding Value ** ○ ○ ○ ● No function Power failure in Open and switch off Close and switch off Battery operation 15 min ** ○ ○ ● ○ 01 ... 04 ...

  • Page 30: Value Table For Service Leds And Display Programme Switch

    Parameter menu ECturn 20.1 Value table for service LEDs and display programme switch Service LEDs ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ○ ○ ○ ● ○ ○ ○ ○ ● ● ○ ○ ● ○ ○...

  • Page 31: Fault Messages

    ECturn Fault messages Fault messages Service LEDs Error group Cause Behaviour of the drive 5 4 3 2 1 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ – Operating Drive is switched off. voltage ○ ○ ○ ○...
  • Page 32 Fault messages ECturn Service LEDs Error group Cause Behaviour of the drive 5 4 3 2 1 ○ ○ ● ● ● * ● ○ ● ○ Motor ro- No pulse from the rotary Door leaf is braked by the motor and...

  • Page 33: Ecturn System

    ECturn ECturn system ECturn system 22.1 Transom installation ECturn 22.2 Door leaf installation ECturn...

  • Page 34: System Key

    22.3 System key Abbreviations Mains voltage, mains fuse 10 A, power 75 W Safety sensor strip Door transmission (supplied by GEZE, sensor strip) Door opener with deadbolt contact Programme switch, external (TPS) Key operated push button for TPS Contact sensor K (e.g. button)
  • Page 35 ECturn Symbols and means of representation...
  • Page 36 E-Mail: finland.se@geze.com Tel. +49 (0) 7930-9294-0 www.geze.com Fax +49 (0) 7930-9294-10 Baltic States Iberia E-Mail: sk.de@geze.com GEZE GmbH Baltic States office GEZE Iberia S.R.L. Scandinavia – Denmark E-Mail: office-latvia@geze.com E-Mail: info@geze.es GEZE Danmark www.geze.com www.geze.es E-Mail: danmark.se@geze.com GEZE GmbH www.geze.dk...
