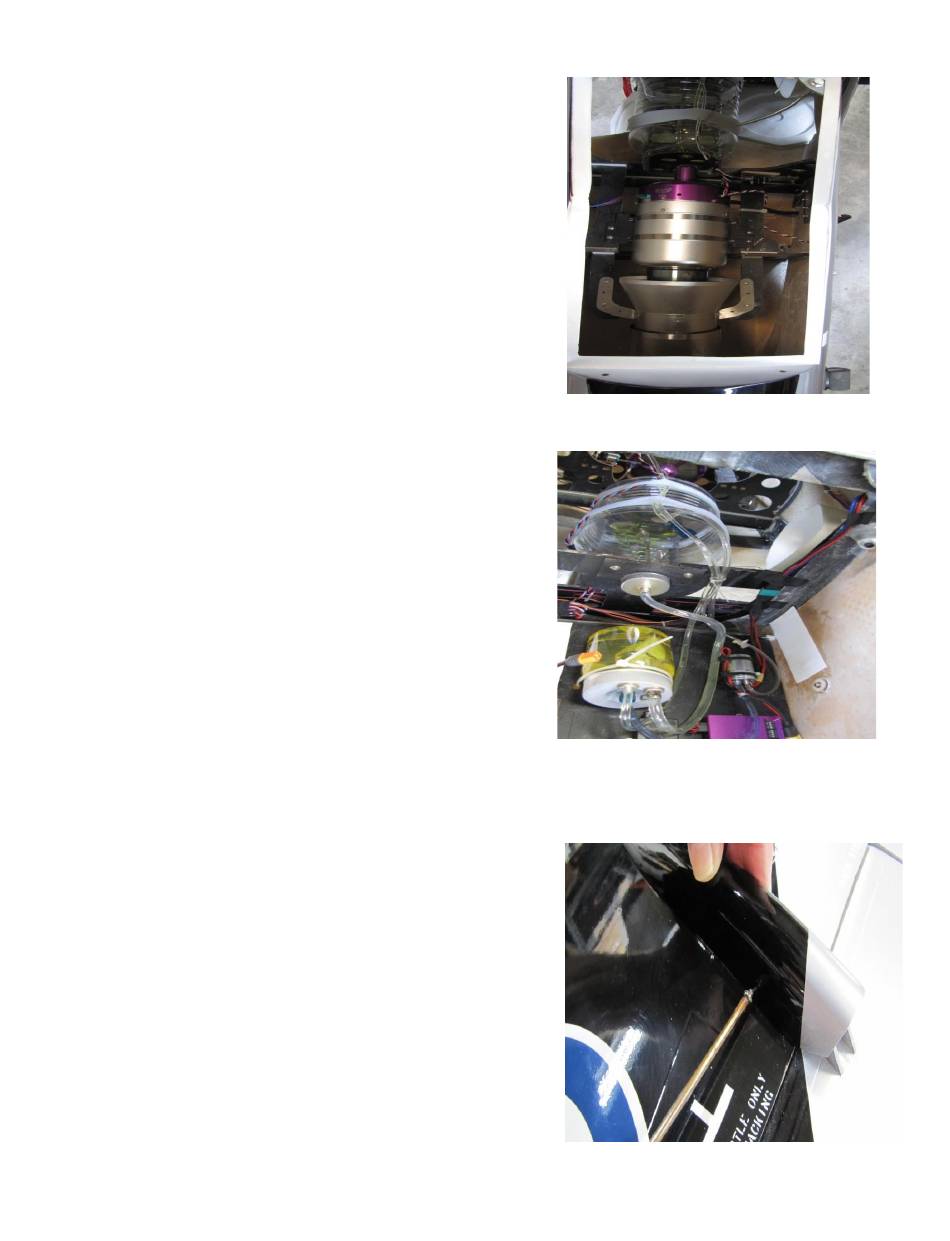

Turbine Mounting

The BVM Demo Hawk uses a T-22 Turbine with 49lbs
of thrust. On our demo model we had to make spacers
to fit between the rails. You may or may not have to do
this.
Center your engine L/R and Up and Down in the Tail
pipe. BVM recommends that you follow your specific
Turbine Manufactures mounting instructions.
On our Demo model the Turbine tail cone sits 1 inch
from the start of the Tail Pipe not the start of the Bell
mouth

Fuel Pump and ECU Mounting

There are 2 spots on the board to mount your Fuel
pump one on the left and one on the right. We used the
left side. However there is plenty of room in the Aircraft
and you can mount the pump to what is convenient for
you. .
Like your fuel Pump you can mount your ECU where it's
easiest for you. Our T-22 has the ECU in the Engine so
you will not see it in the picture.

Wing Preparations

Aileron linkage covers

The wing has a fair amount of Scale covers and will
take a little time to get them on. This procedure will be
for the left and right wing.
The Aileron Covers are held to the wing with 4 small
self tapping screws. You will need a small Philips screw
driver for this step. There are 2 screws per side on
each cover. There is also a trailing cover that is glued
onto the Aileron.
