Hawk 100

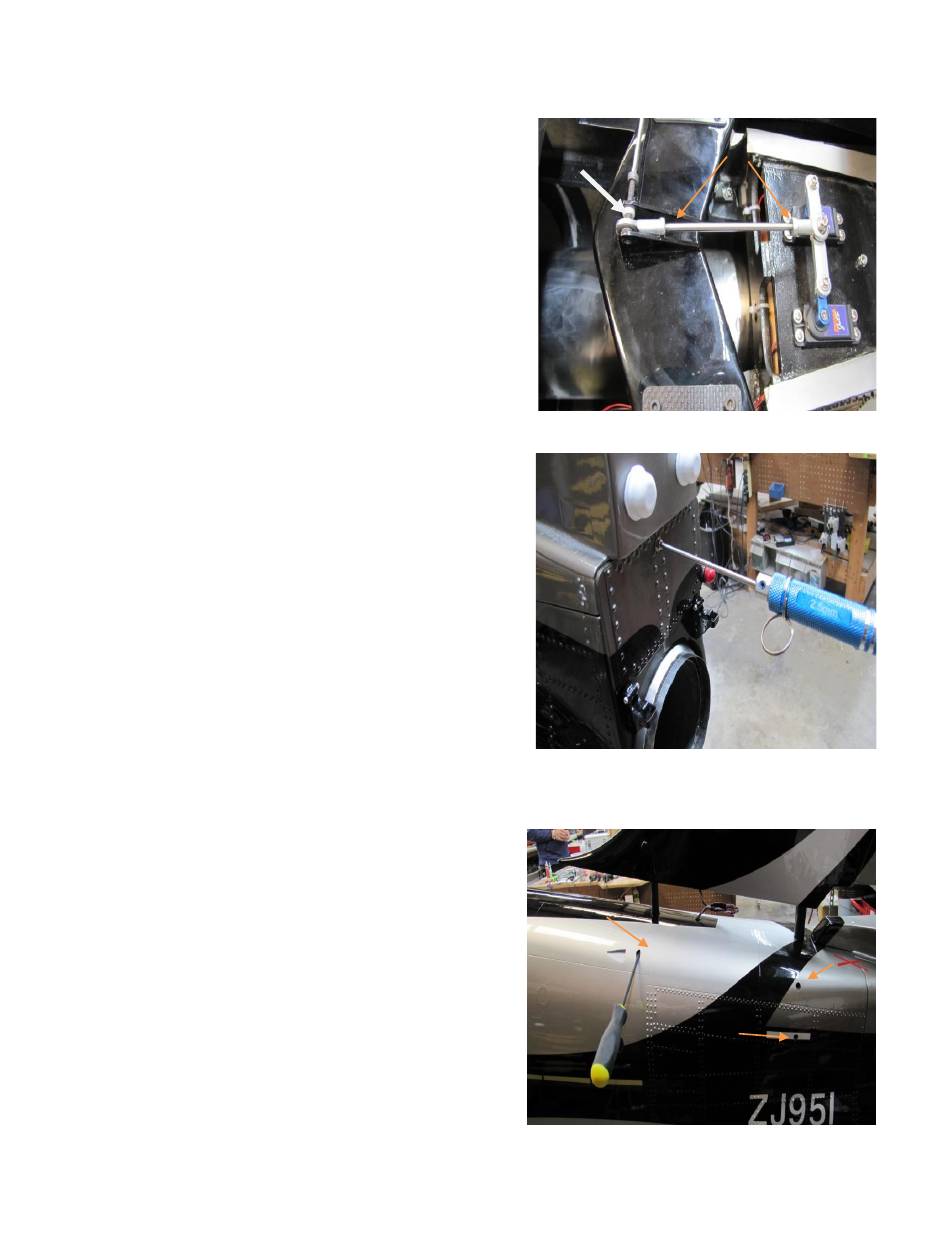

Stabilator linkage

The Stab linkage is very straight forward. You have
a 4mm bolt passing through the Stab Arm with a
washer on either side of the Ball Link to center the
Link and a 4mm Lock Nut on the outside. You will
need a 3mm wrench and a Nut Driver for this step.
Note: Once you have your linkage adjusted a
small amount of wicking Loctite should be used.
The Orange arrows point to where this goes.
Re Install the Top Cap and hook up the Led wire to
complete this step. Your Stabilator mounting is now
done and you are ready to move to the next step.

Mounting The Vertical Fin

The Vertical Fin has 1 Servo wire connection and 2
clamping brackets. There are a total of 3 bolts you
need to tighten to secure it in place.
The Orange arrows point at the access holes.
NOTE: You can apply some BVM Dry Lube on
the carbon tubes to ease installation.
BVM ©2023 11 4/2023
