Hawk 100

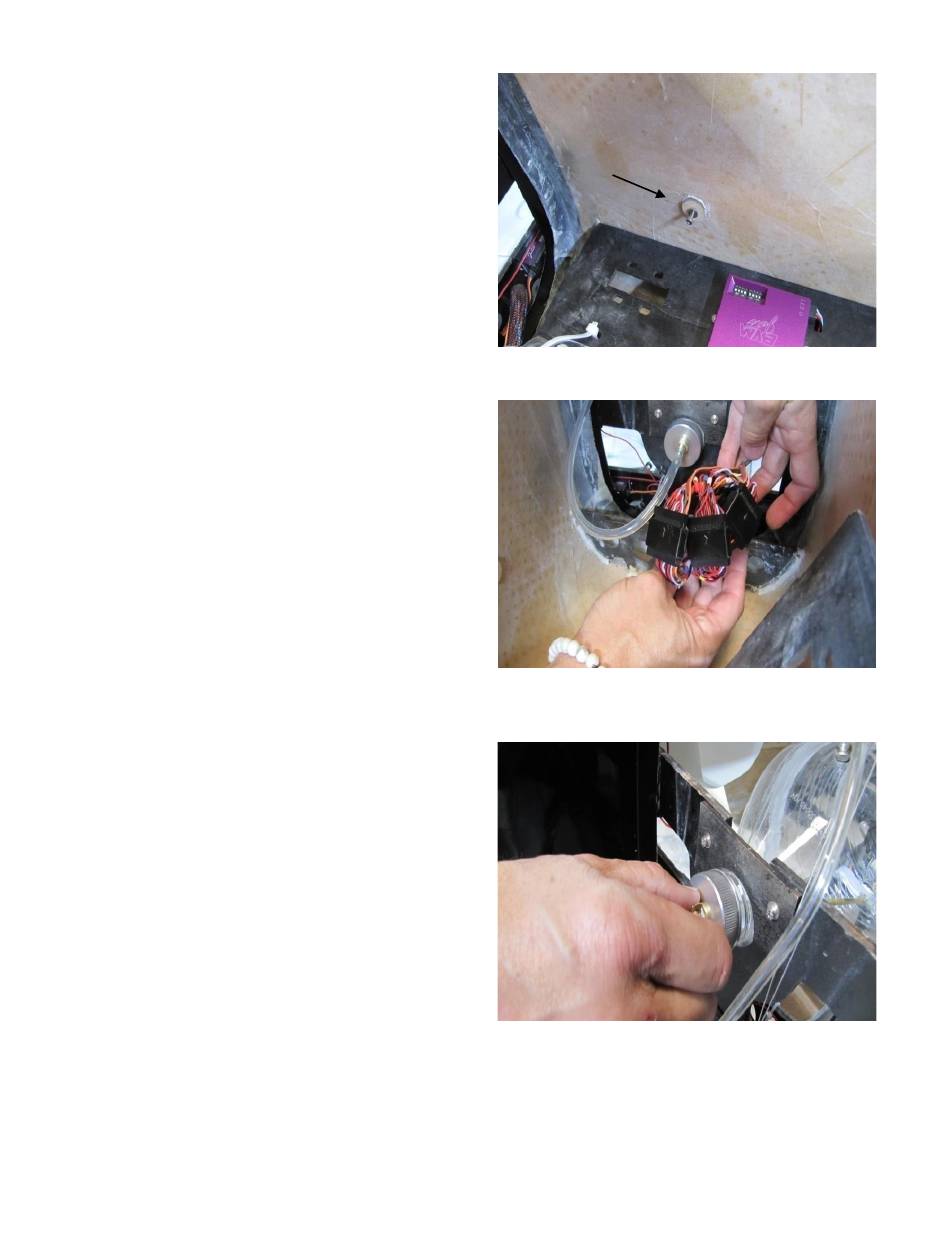

This picture shows the Front duct screw. There
is one on both sides.
There are 3 sets of servo connections to join.
You must be sure that the colors on the wires
match the corresponding connector. This
completes joining of the 2 haves.
Fuel system Check
The fuel system is very simple and easy to
access. Unscrew the Aluminum cap and pull
the assembly out. At this point you will be able
to Safety wire the clunk tubing to the cap and
the Clunk.
The BVM demo Hawk uses all stock tubing
supplied with the Aircraft.
BVM ©2023
7
4/2023
