Hawk 100

Mounting The Stabilator

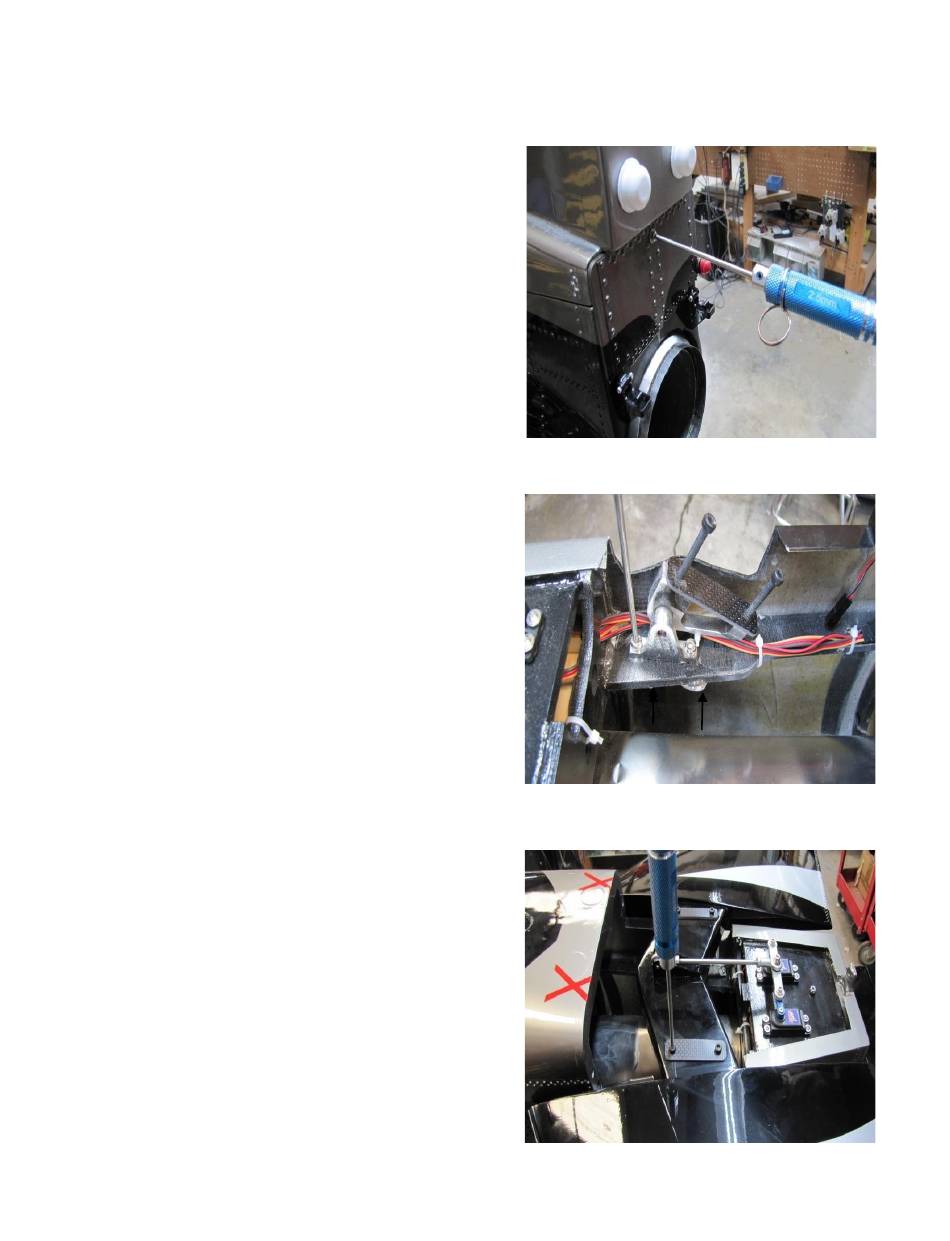

Remove the single 3mm bolt from the rear fuse.
This will allow removal of the Top Cap that covers
the Stab mechanism. You will need a 2.5mm
wrench to complete this step.
.NOTE: There is a single LED wire under the
Top Cap.
After the Top Cap is removed you will access to
the Mounting Brackets. There are 4 bolts, 2 on
each side that hold the Bracket in place. Remove
one at a time and apply Z-42 Loctite to each bolt
and re assemble. You will need a 3mm wrench to
complete this step. .
You can now mount the Stabilator to the brackets.
Remove the 4 Bolts and Carbon Doubler that will
hold the Stabilator in place. Apply a small dab of
Z-42 Loctitie to each bolt. The Carbon Doubler sits
on top of the Stabilator.
Your Stabilator is now mounted to the Aircraft

Note: Check these periodically for tightness

BVM ©2023 10 4/2023
