Hawk 100

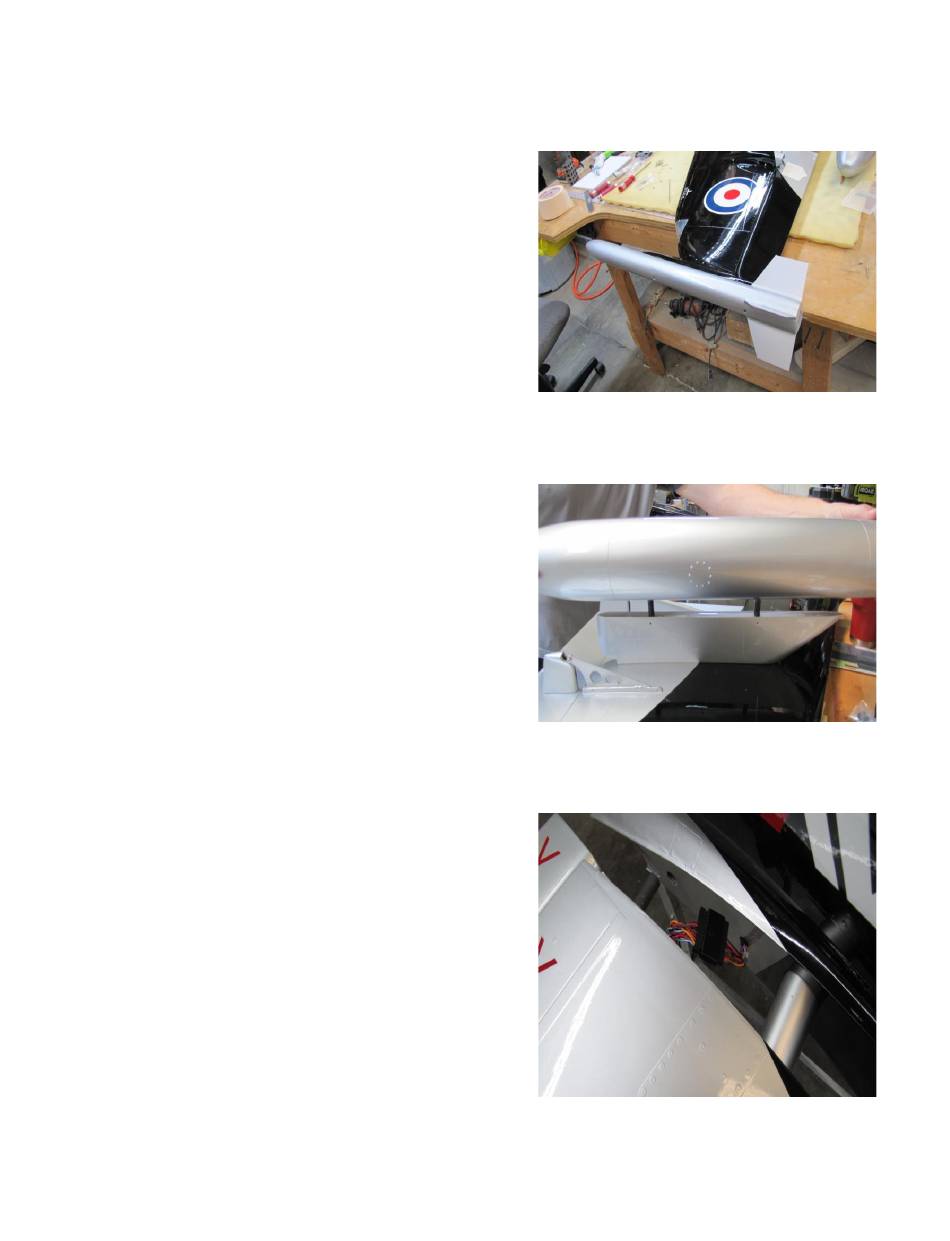

Mounting the Missiles

The Missiles are held to the Rail with 2 self tapping
screws in each missile

Mounting the Drop Tanks

The Drop Tanks are held to the Pylons with 2 self
tapping screws per tank. The Carbon rods are
inserted into the Pylons and the screw passes
through from the side.

Mounting the wings and Servo wires

The wing is held to the fuse with the Main wing tube
and clamping brackets. The clamping Brackets are
at the leading edge and trailing edge of the wing. A
9/64 Ball driver is used to tighten the clamps. There
is also a servo connection block that joins all the
wires.
BVM ©2023
16
4/2023
