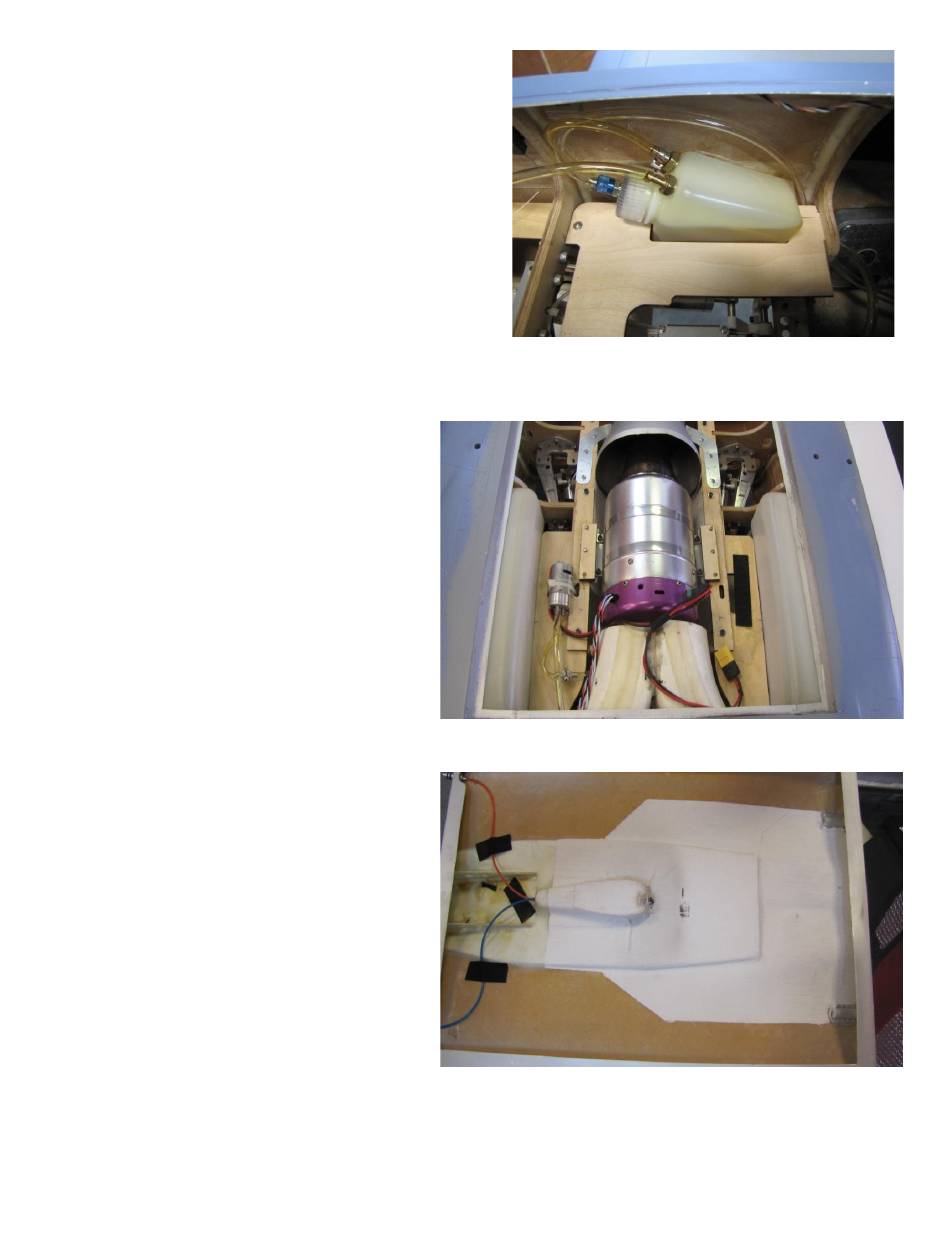

UAT Mounting
•
The UAT has spot under the canopy on the
right side of the fuse. We routed the fill line for
the fuel system under the nose cone.

Turbine and Pump Mounting

•
•
Our demo model has a BVM T-16 for
power. We mounted the Fuel Pump
on the right side and the ECU
Battery on the left. Our ECU is built
into the front cover of the engine, so
you will not see it in the photos.
Follow your manufactures guide
lines for mounting.
NOTE: The engine rails will look a bit
different on the production versions.
Turbine and Pump Mounting
• Heatsheild was used on the
inside of Turbine Hatch as added
protection. (BVM#PA-MA-1940
