FRONTALS
Hinge Attachment Guide

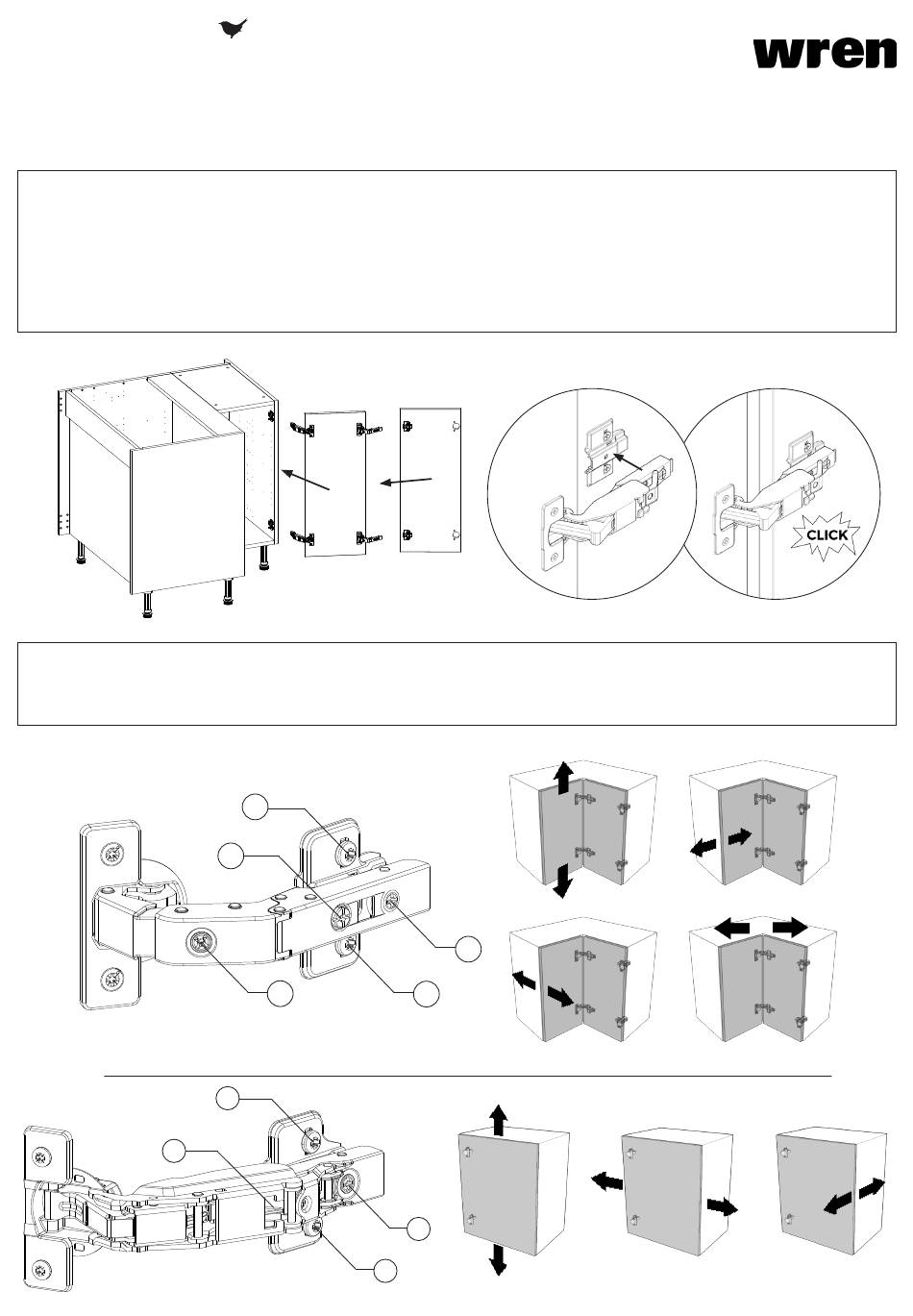

L Corner - Folding Door Hinge
Step 3.
Attach the frontal with the 170° hinges to the L corner cabinet, clip the hinges onto the hinge plates and
click to secure.
Attach the frontal with the hinge plates to the folding door hinges, clip the hinges onto the hinge plates
and click to secure.
Hinge Adjustment
Adjust hinges to suit, using the highlighted screw(s) shown.
B
For Internal Use: _CON.INS.012.001_FRONTAL_GUIDE_Rev3
RH Mounted Door Shown for
Illustrative purposes only
A
B
D
A
A
C
A
A
C
A
C
B
B
D
C
