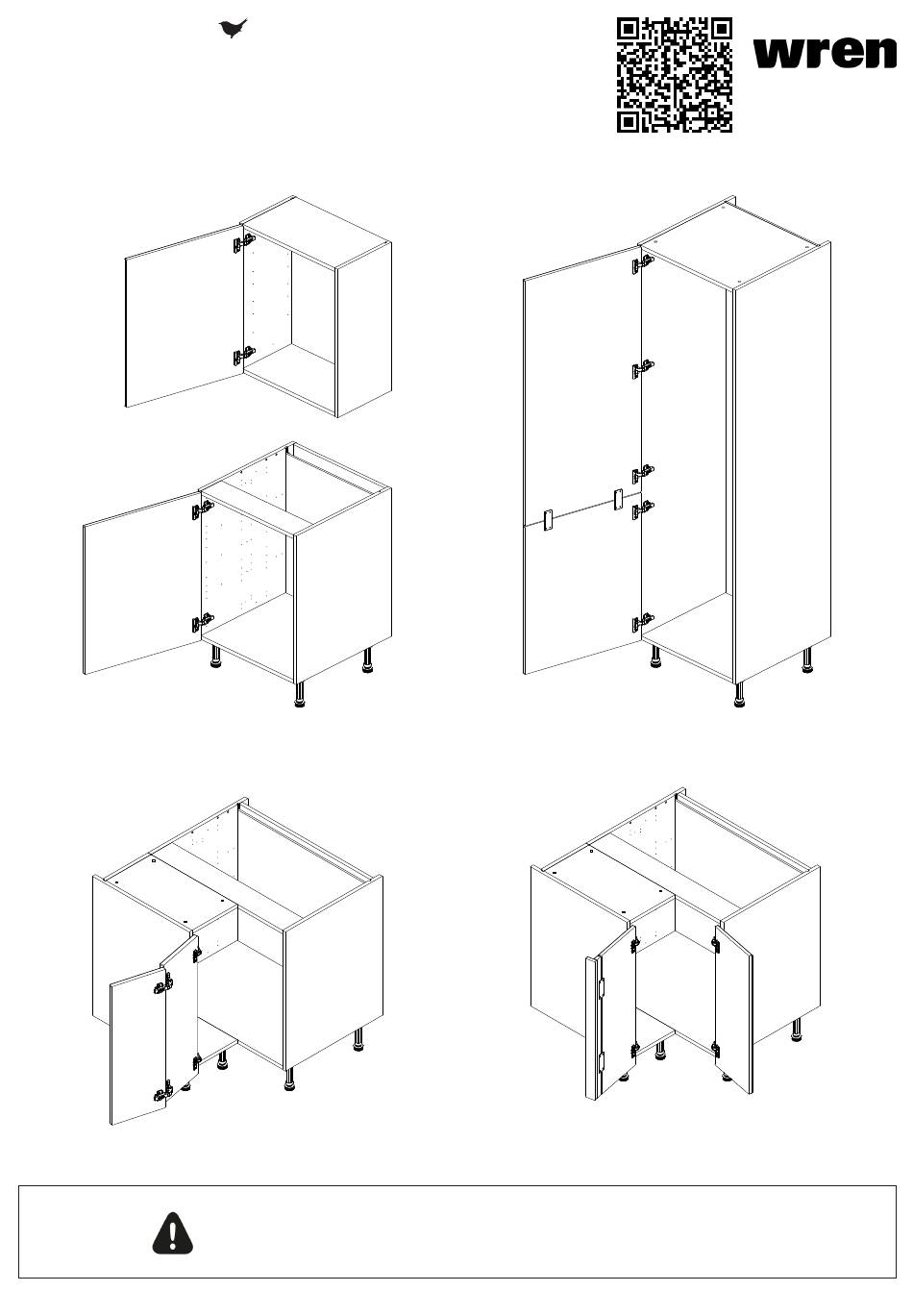

FRONTALS
Hinge Attachment Guide
Folding Door
LH Cabinet shown for illustration purposes only
For Internal Use: _CON.INS.012.001_FRONTAL_GUIDE_Rev3
Base & Wall
L Corner
All hinges MUST be adjusted to the SAME STRENGTH.
Escanear para español
Tower
L Corner
With Corner Post
Page 1
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren FRONTALS Base
Summary of Contents for Wren FRONTALS Base
- Page 1 FRONTALS Hinge Attachment Guide Escanear para español Base & Wall Tower L Corner L Corner Folding Door With Corner Post LH Cabinet shown for illustration purposes only All hinges MUST be adjusted to the SAME STRENGTH. For Internal Use: _CON.INS.012.001_FRONTAL_GUIDE_Rev3 Page 1 Page 1...
- Page 2 FRONTALS Hinge Attachment Guide Base & Wall Cabinet Hinge Step 1. Insert hinges into frontal hinge holes provided, secure hinges with the 2 x screws and hinge dowels already located in the hinges. Hinge dowels Step 2. Attach the door to cabinet, clip hinges onto hinge plates and click to secure.
- Page 3 FRONTALS Hinge Attachment Guide Tower Cabinet Hinge Step 1. (Where applicable) Align frontals and join together using 2 x fixing plates to the back of both frontals. Ensure a 1/8” mm gap is maintained between each frontal. Screw in place using 4 x 9/16” screws per fixing plate. Fixing Plate Step 2.
- Page 4 FRONTALS Hinge Attachment Guide L Corner - Folding Door Hinge Step 1. Position the frontal with 4 x cup holes on a protected work surface with the holes facing up. Insert the Folding door hinges and 170° hinges into the hinge holes provided. Position the 170° hinges on the side of the door that will be attached to the cabinet.
- Page 5 FRONTALS Hinge Attachment Guide L Corner - Folding Door Hinge Step 3. Attach the frontal with the 170° hinges to the L corner cabinet, clip the hinges onto the hinge plates and click to secure. Attach the frontal with the hinge plates to the folding door hinges, clip the hinges onto the hinge plates and click to secure.
- Page 6 FRONTALS Hinge Attachment Guide L Corner With Corner Post Hinge Step 1. Align corner post to frontal. Equally space 2 fixing plates to the back of frontal & corner post. Screw in place using 4 x 5/8” screws per fixing plate. Ensure a 1/16” gap is maintained between frontal & post once fixed together.
- Page 7 FRONTALS Hinge Attachment Guide Step 3. Attach the door to the cabinet, clip hinges onto the hinge plates and click to secure. Step 4. Adjust hinges to suit, using the highlighted screw(s) shown. Step 5. Fit soft close mechanism and strike plate to hinge. Step 5.
