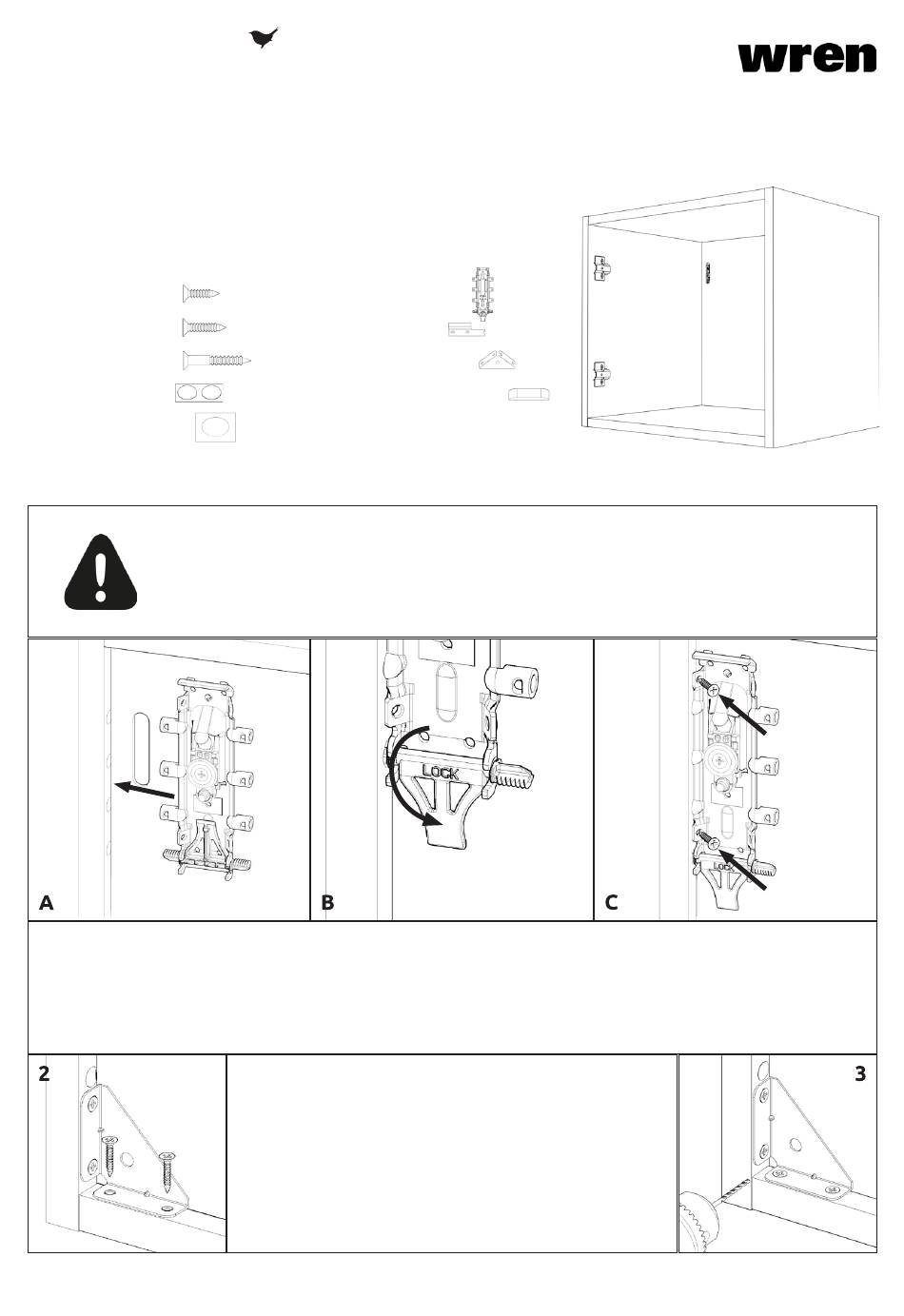

WALL UNIT

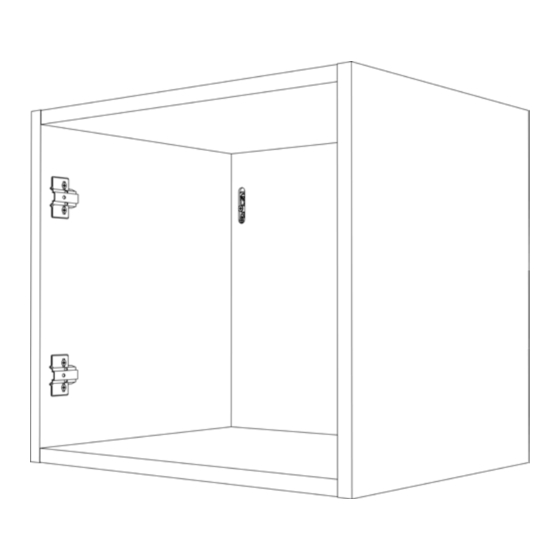

Bridging / Top Box Unit Fitting Guide
Height: 288 - 450
Width: 400 - 1000
FI.PK.BED.222.002 - PEBBLE
(L) x8 15mm Screws
(S) x4 20mm Screws
(K) x8 30mm Screws
(N) x2 Door Buffer
8x Stick On Cover Cap
Step1.
A. Insert wall hanging bracket into pre-drilled holes on the rear of the unit.
B. Rotate locking lever 180 degrees.
C. Secure with 2 x 20mm screws (S) per hanging wall bracket.
View from back of unit.
For Internal Use: FI.PK.BED.222.002_WBIN00007_Wall_FittingGuide_Rev1
2x Wall Hanging Bracket
2x Wall Hanging Plate
2x Corner Gusset Plate
2x Hanging Bracket Cover Cap
Screws and fixings for attaching to walls are not provided as these vary
depending on materials, thickness and construction. Ensure appropriate
fixings for wall construction are used.
Step 2.
Secure corner gusset plates to the bottom left and right
side on the back of the wall unit, using 4 x 15mm screws
(L) per plate.
Step 3.
Drill a pilot hole through the centre of the wall gusset
plate. Use this hole at the end of the process to screw
through and into the wall.
View from back of unit.
