Wren FI.PK.FIT.024 Fittings Manual

TOWER CABINET
VANITY TOWER FITTING GUIDE
FI.PK.FIT.024 - Vanity Tower

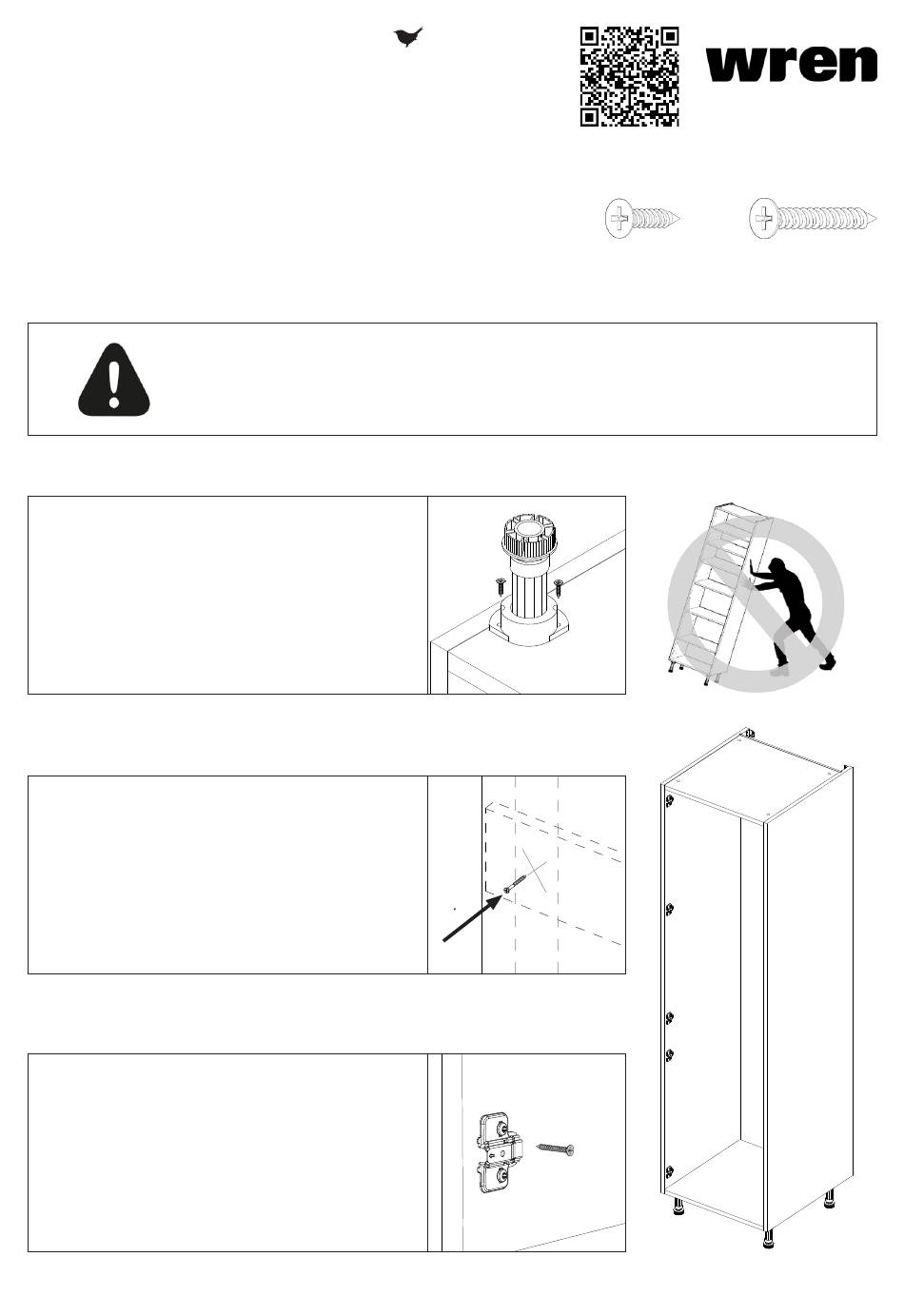

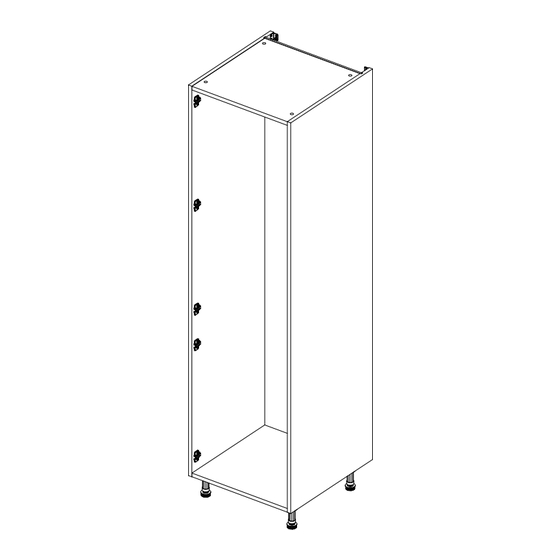

Vanity Tower with legs
Step 1.
Secure each of the legs in place with 2 x 5/8"
screws (B). Ensure legs are rotated as shown so
that part of the leg is supporting the end panel
and the flat edge is facing the front. Adjust legs
to the same height before turning the cabinet
upright. Once in situ level accordingly.
It is important to lift the cabinet onto its legs,
Do Not Tilt as depicted on the right.
Step 2.
Secure the cabinet to the wall by screwing
through the rails into a wall stud, screw
in two places in the top and bottom rails
where possible. Screws not provided. Use
appropriate fixing for wall construction if
stud is not available.
Step 3.
Screw into any adjacent cabinets using 1 1/4"
screws (H) provided to secure the cabinet. Screw
just to the rear of the hinge plates. Place cover
caps on the screw heads to conceal them.
For Internal Use: FI.PK.FIT.024_50-WKIN00102_VanityTower_Rev2
Screws and fixings for attaching to walls are not provided as these vary
depending on materials, thickness and construction. Ensure appropriate
fixings for wall construction are used.
Escanear para español
(B) x14 5/8"
Screws
(H) x12 1 1/4"
Screws
Cabinet shown for
illustration purposes only.
