WALL UNIT
Top Box Unit Fitting Guide
Height: 288 - 450
Width: 400 -1000
FI.PK.BED.222.005 - PEBBLE
(N) x2
Door Buffer
For Internal Use: FI.PK.BED.222.005_WBIN00006_590_TopBox_FittingGuide_Rev1
x8
Stick On
30mm Screw
Cover Cap
Screws and fixings for attaching to walls are not provided as these vary
depending on materials, thickness and construction. Ensure appropriate
fixings for wall construction are used.

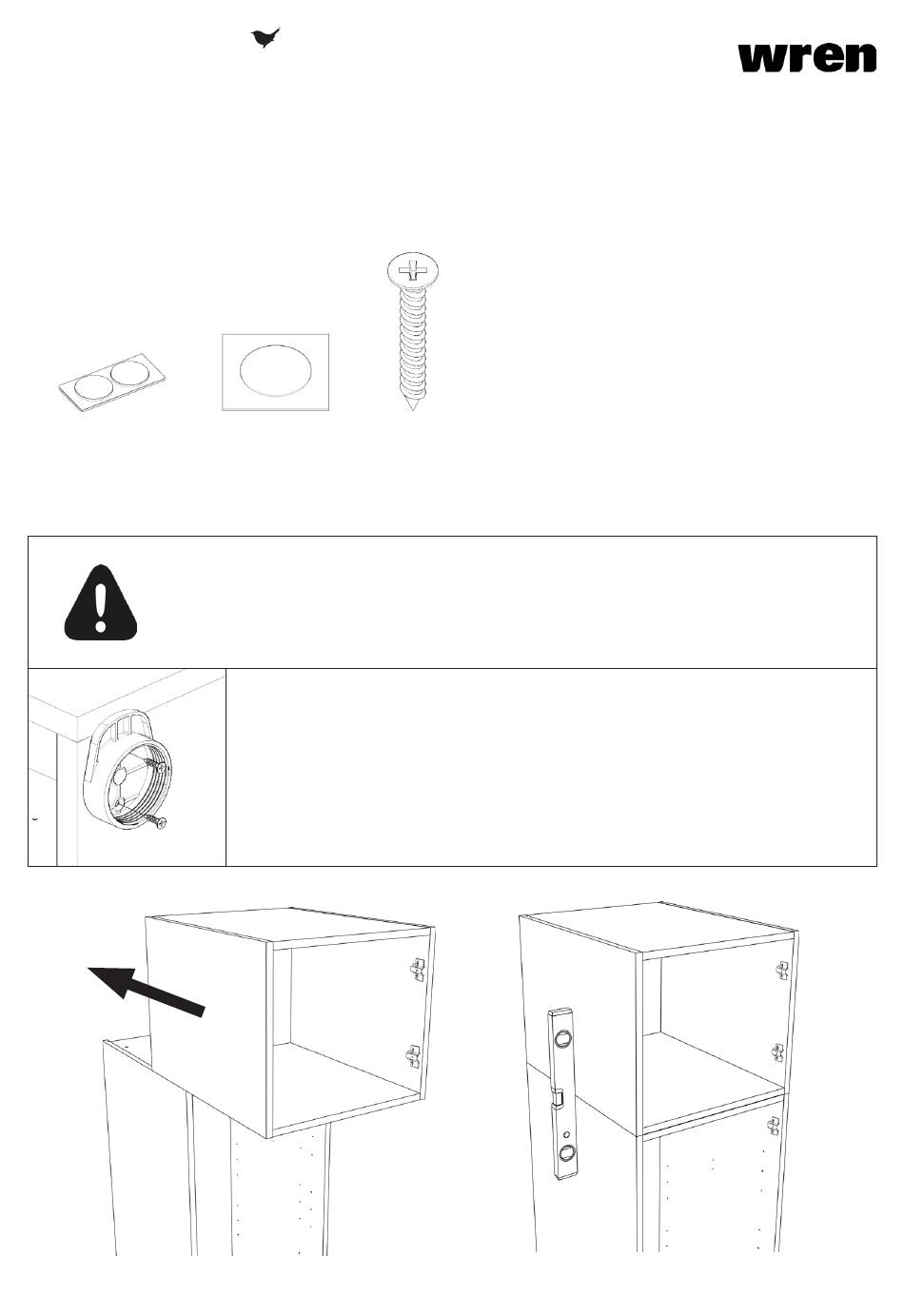

Step1.
Ensure the robe unit is level, positioned correctly and fully secured before
installing top box. Position the top box on top of the robe unit.
Level the top box with the robe so the sides and front of both units are aligned
and flush.
(K) x8
Page 1
Advertisement
Table of Contents
Related Manuals for Wren PEBBLE FI.PK.BED.222.005
Summary of Contents for Wren PEBBLE FI.PK.BED.222.005
- Page 1 WALL UNIT Top Box Unit Fitting Guide Height: 288 - 450 Width: 400 -1000 FI.PK.BED.222.005 - PEBBLE (N) x2 (K) x8 Door Buffer Stick On 30mm Screw Cover Cap Screws and fixings for attaching to walls are not provided as these vary depending on materials, thickness and construction.
- Page 2 WALL UNIT Top Box Unit Fitting Guide Height: 288 - 450 Width: 400 -1000 FI.PK.BED.222.005 - PEBBLE Step2. Screw down through the top box bottom fixed shelf into the robe top fixed shelf using 4 x 30mm screws (K). Position 2 screws at the front and 2 screws at the rear of the unit.
