Wren FI.PK.BED.222.001 Fittings Manual

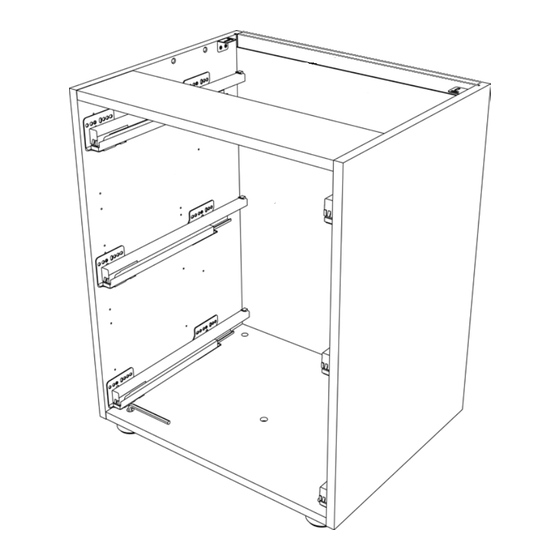

CHEST UNIT
Chest Unit Fitting Guide - FI.PK.BED.222.001
Height: 595 - 1172
Width: 400 -1000
(K) x10 (L) x18
30mm 15mm
Screw Screw
For Internal Use: FI.PK.BED.222.001_WBIN00005_Chest_FittingGuide_Rev1
(N) x6
Door Buffer
Screws and fixings for attaching to walls are not provided as these vary
depending on materials, thickness and construction. Ensure appropriate
fixings for wall construction are used.
Step1.
Remove the drawers from the unit and put to one side, lift the chest and place
it on its side. Secure each of the legs in place with 2 x 15mm screws (L) per leg.
Ensure legs are rotated as shown so the tab is supporting the end panel.
Attach bottom section of legs and set all legs to the same height.
2 x L Bracket
LGE
400 - 500 Widths: 4 Legs
600 - 1000 Widths: 5 Legs
Page 1
