ROBE UNIT
Angled Robe Fitting Guide
FI.PK.BED.222.021 - PEBBLE
(L) x8 15mm Screws
(K) x8 30mm Screws
For Internal Use: FI.PK.BED.222.021_WBIN00048_Angled_Robe_FittingGuide_Rev2
(N) x2 Door Buffer
12x Stick On Cover Cap
Screws and fixings for attaching to walls are not provided as these vary
depending on materials, thickness and construction. Ensure appropriate
fixings for wall construction are used.
Step1.

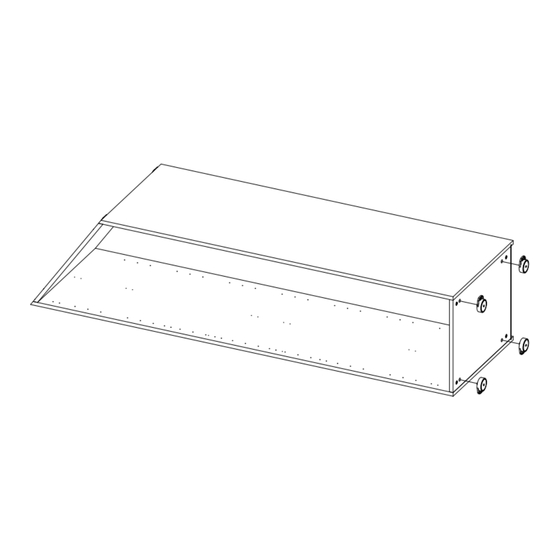

Lift the robe and place it on its longest side. Secure each of the legs in place
with 2 x 15mm screws (L) per leg.
Ensure legs are rotated as shown so the tab is supporting the end panel.
Attach bottom section of legs and set all legs to the same height.
Step2.
Position the unit and level using an 8mm hex key from inside the unit.
4x 15mm Plastic Cover Caps
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren PEBBLE FI.PK.BED.222.021
Summary of Contents for Wren PEBBLE FI.PK.BED.222.021
- Page 1 ROBE UNIT Angled Robe Fitting Guide FI.PK.BED.222.021 - PEBBLE (L) x8 15mm Screws (N) x2 Door Buffer 4x 15mm Plastic Cover Caps (K) x8 30mm Screws 12x Stick On Cover Cap Screws and fixings for attaching to walls are not provided as these vary depending on materials, thickness and construction.
- Page 2 ROBE UNIT Angled Robe Fitting Guide FI.PK.BED.222.021 - PEBBLE Step 3. A. Pilot drill through the back panel and back rails of the unit. B. Screw the unit to the wall using appropriate screws. Cover screw heads with stick on cover caps. STEP 3.
