Wren FRONTALS Base Attachment Manual page 4

FRONTALS
Hinge Attachment Guide

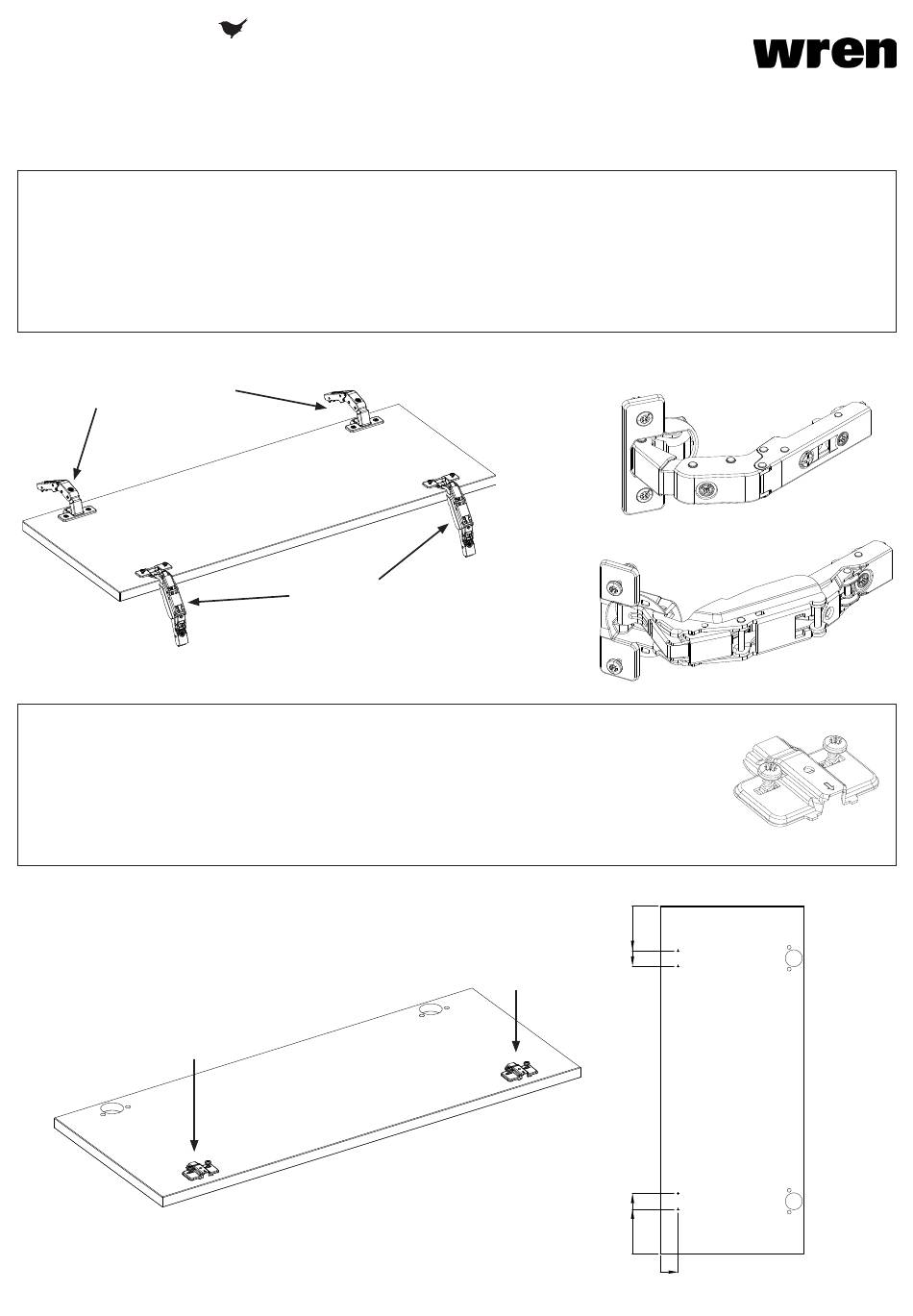

L Corner - Folding Door Hinge
Step 1.
Position the frontal with 4 x cup holes on a protected work surface with the holes facing up.
Insert the Folding door hinges and 170° hinges into the hinge holes provided. Position the 170° hinges on
the side of the door that will be attached to the cabinet.
Secure the hinges using the screws already located in the hinges.
Folding Door Hinges
Step 2.
Position the second door on a protected work surface with the holes facing up.
Attach the hinge plates to the frontal using the indentations on the side that will interact
with the folding door hinges.
Secure the hinge plates to the frontal using the screws already located in the hinge plates.
For Internal Use: _CON.INS.012.001_FRONTAL_GUIDE_Rev3
170° Hinges
Folding Door Hinges
170° Hinges
Hinge Plate
2 ¹⁵⁄₁₆"
4 ³⁄₁₆"
4 ³⁄₁₆"
2 ¹⁵⁄₁₆"
1 ½"
Page 4 Page 4
