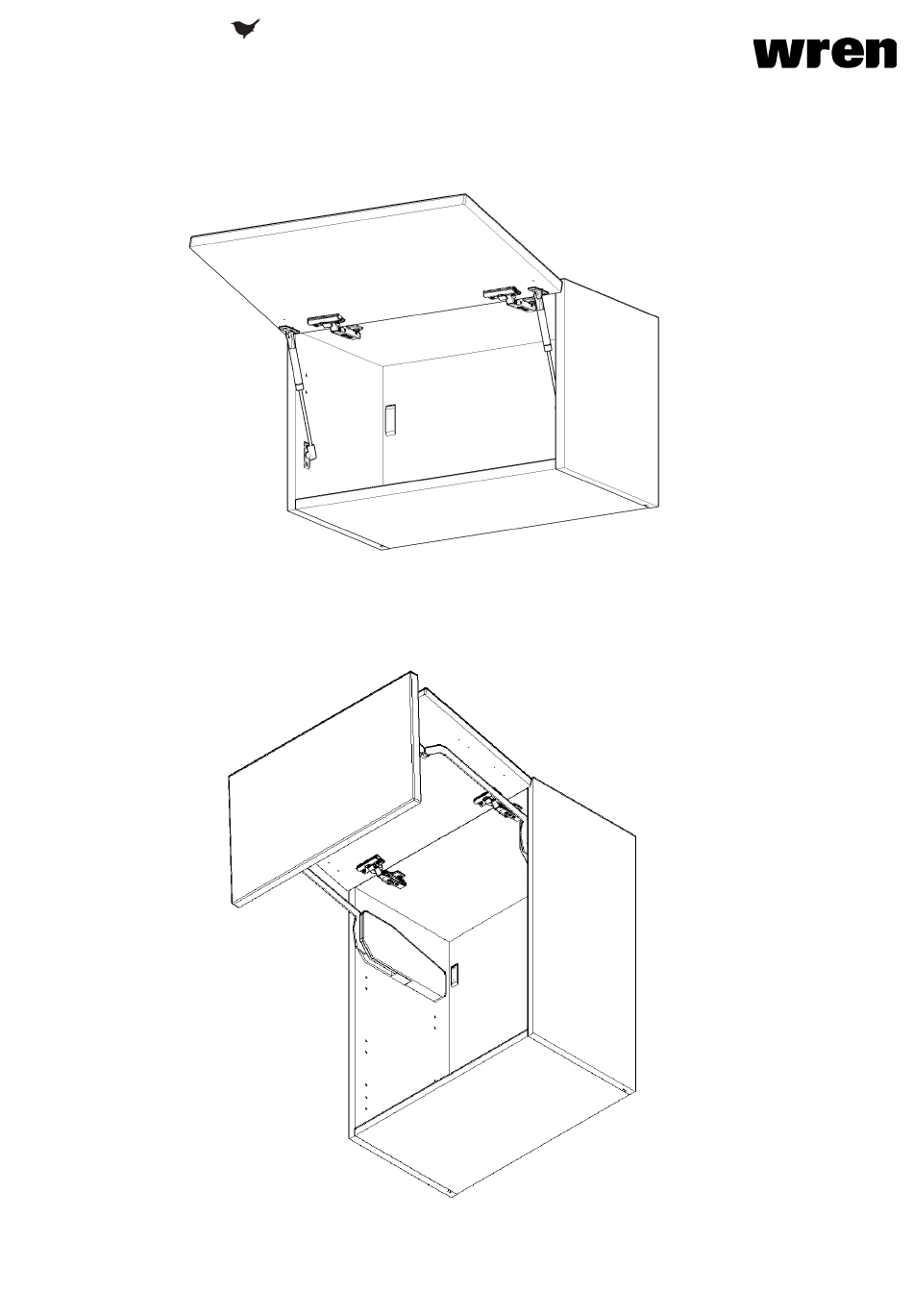

- Page 1 FRONTALS Lift Mechanism Replacement Frontal Guide Piston Lift Bi Fold Lift For Internal Use: FI.WR.INS.080_WKIN00070_LiftMECH_ReplaceFRTL_Rev6...

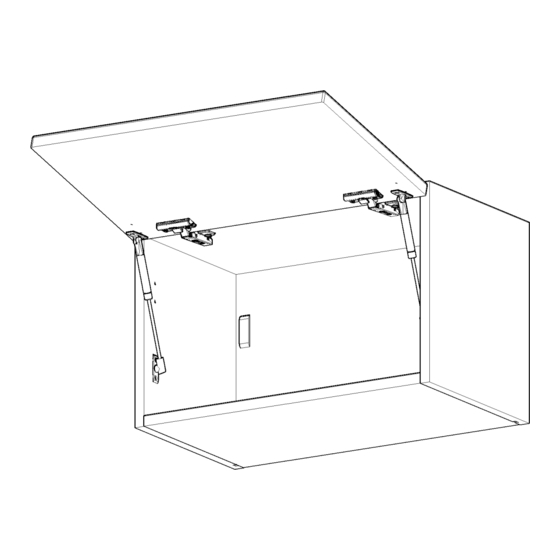

- Page 2 FRONTALS Lift Mechanism Replacement Frontal Guide Piston Lift Step 1. Secure piston brackets with 2 x 15mm screws into position as shown, using pilot holes on the frontal as a guide. See fig 1. Piston Plate Step 2. Discard existing hinge dowels and replace with new ones provided.
- Page 3 FRONTALS Lift Mechanism Replacement Frontal Guide Piston Lift Step 5. Attach the door to unit, clip hinges onto hinge plates and click to secure. See fig 2. Step 6. Adjust hinges to suit, using the highlighted screw(s) shown. Step 7.
- Page 4 FRONTALS Lift Mechanism Replacement Frontal Guide Bi Fold Lift Step 1. Line up and insert 3 x mechanism pins into holes provided as shown. End panel mechanism pin hole locations 3 x mechanism pins Measure from Top - Front edge of unit...
- Page 5 Step 6. Attach frontals together, clip centre hinge into hinge mounting plate & click to secure. Step 7. Secure Bi Fold arm clip to the frontal location as shown,with 2 x 15mm screws per clip as shown in fig 2.
- Page 6 Lift Mechanism Replacement Frontal Guide Bi Fold Lift Step 8. Attach frontals to the unit. Clip hinges onto the hinge plates and click to secure. Step 9. Clip arms onto BiFold arm clips. Please refer to lift hinge instructions provided or visit website: hafele.com/external/free for further frontal adjustment information if required For Internal Use: FI.WR.INS.080_WKIN00070_LiftMECH_ReplaceFRTL_Rev6...
- Page 7 FRONTALS Lift Mechanism Replacement Frontal Guide Bi Fold Lift Step 10. Adjust hinges to suit, using the highlighted screw(s) shown. Step 11. Fit cover caps to hinges and adjust soft-close to suit. Step 12. Fit cover to lift mechanisms. View from inside of unit Both hinges MUST be adjusted to the SAME STRENGTH.
