CHEST UNIT

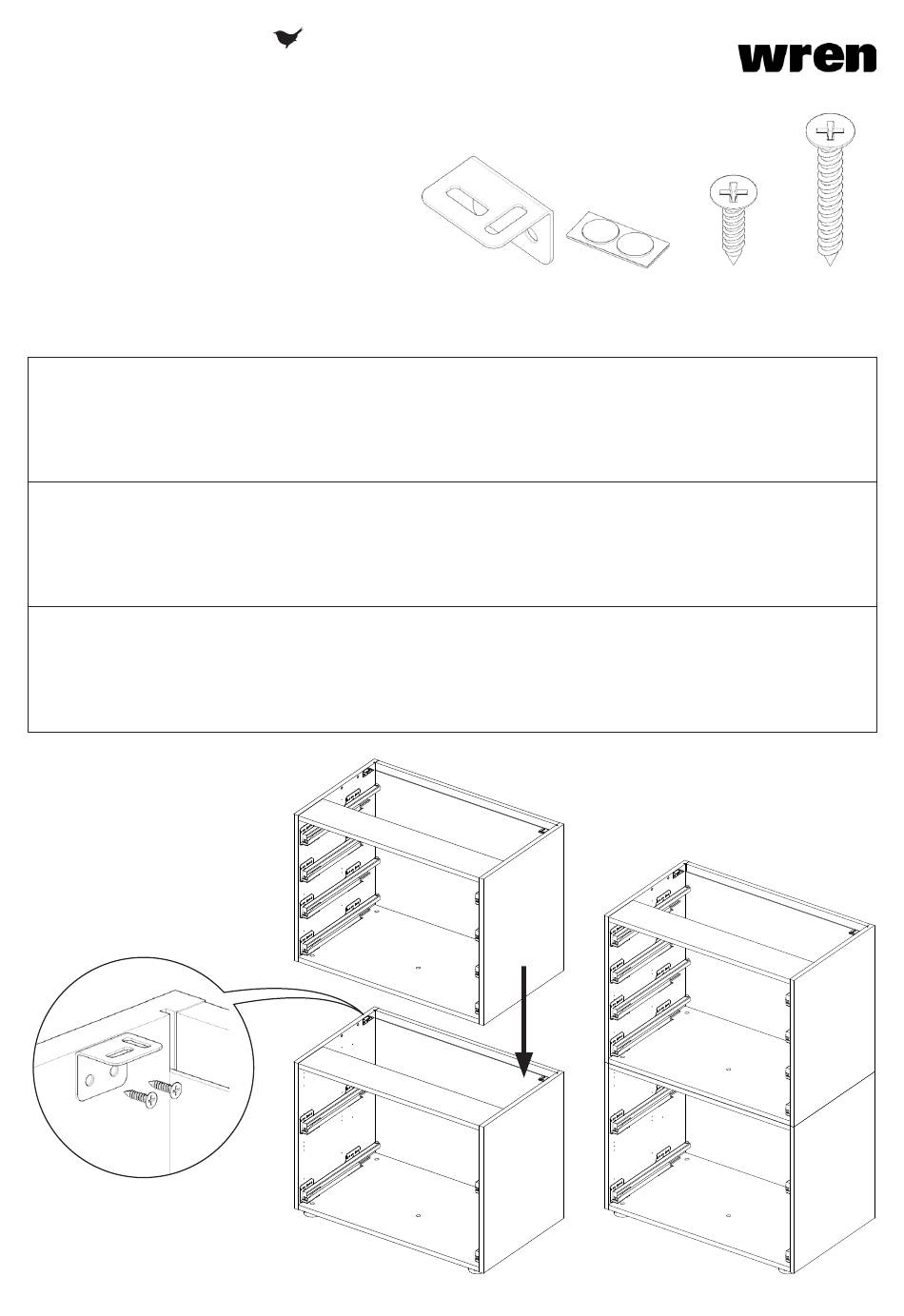

Chest Unit Fitting Guide
CHEST 2 - FI.PK.BED.222.013
Step1.
Remove the drawers from the chests and put to one side.
Install the bottom chest using the fitting pack provided. Ensure the chest is positioned correctly, level and
secure.
Step2.
Use 2 x 15mm screws (L) to secure each of the L bracket LGE to the top, rear of the bottom chest on either
side.
Step3.
Carefully lift the top chest and position it on top of the bottom chest, ensure the front and sides are
aligned with each other.
For Internal Use: FI.PK.BED.222.013_WBIN00030_Chest2_FittingGuide_Rev1

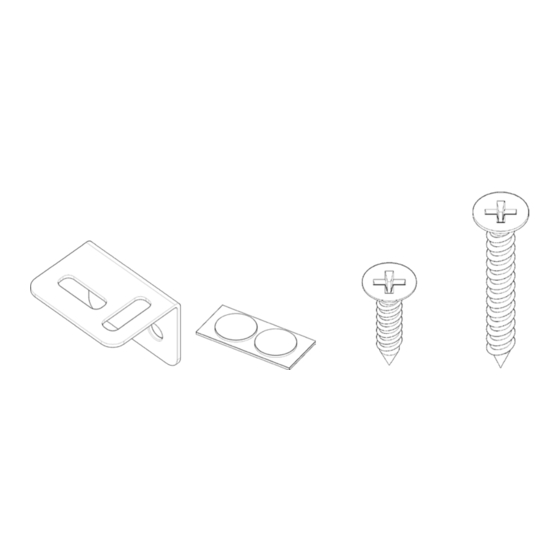

2 x L Bracket
(N) x4
LGE
Door Buffer
(L) x8
(K) x2
15mm
30mm
Screw
Screw
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wren CHEST 2
Summary of Contents for Wren CHEST 2
- Page 1 CHEST UNIT Chest Unit Fitting Guide CHEST 2 - FI.PK.BED.222.013 2 x L Bracket (N) x4 (L) x8 (K) x2 Door Buffer 15mm 30mm Screw Screw Step1. Remove the drawers from the chests and put to one side. Install the bottom chest using the fitting pack provided. Ensure the chest is positioned correctly, level and secure.
- Page 2 CHEST UNIT Chest Unit Fitting Guide CHEST 2 - FI.PK.BED.222.013 Step4. Secure the two chests together by screwing up through the rail of the bottom chest into the fixed shelf of the top chest using 2 x 30mm screws (K) and by screwing up through each of the L brackets using 2 x 15mm screws (L) per L bracket.
