FRONTALS
Hinge Attachment Guide
Tower Cabinet Hinge
A
B
For Internal Use: _CON.INS.012.001_FRONTAL_GUIDE_Rev3

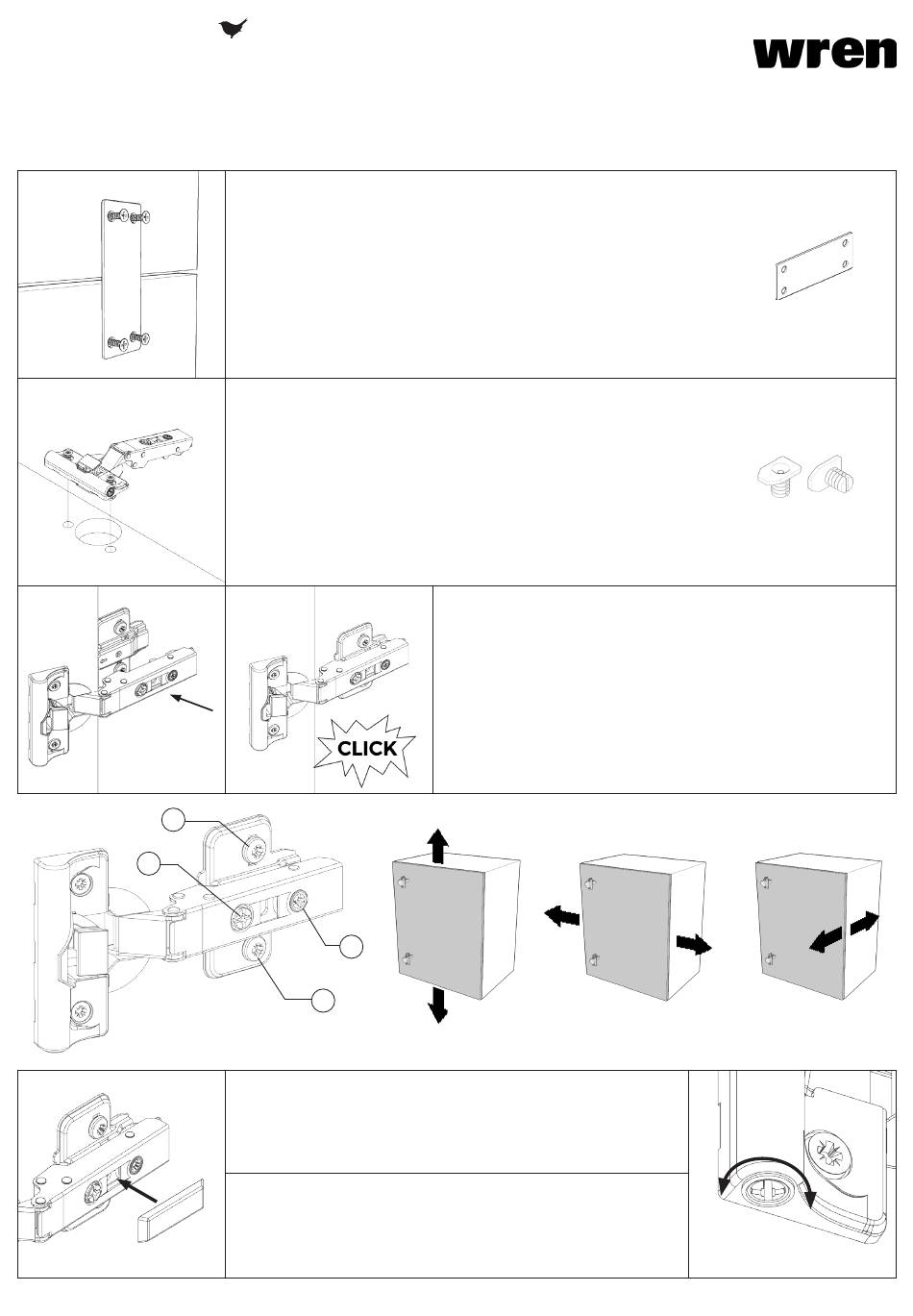

Step 1. (Where applicable)
Align frontals and join together using 2 x fixing plates to the back
of both frontals. Ensure a 1/8" mm gap is maintained between each
frontal. Screw in place using 4 x 9/16" screws per fixing plate.
Step 2.
Insert hinges into frontal hinge holes provided, secure hinges with
the 2 x screws and hinge dowels already located in the hinges.
C
A
Step 4.
Adjust hinges to suit, using the highlighted screw(s)
shown.
Step 5.
Fit cover caps to hinges and adjust soft-close to suit.
Step 3.
Attach the door to cabinet, clip hinges onto hinge plates
and click to secure.
A
Fixing Plate
Hinge dowels
B
C
