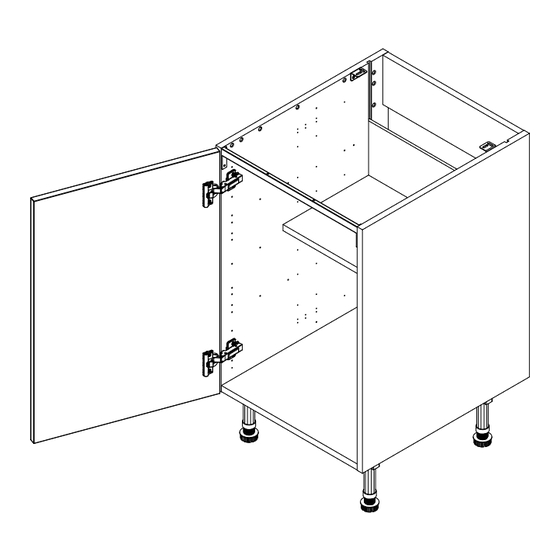

- Page 1 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide 600 1 Door 500 1 Door 600 1 Door Overmount 700 2 Door Belfast 800 2 Door 1000 2 Door For Internal Use: FI.WR.INS.057_WKIN00145_BASE_500-1000_SINK_HOB_1-2Dr_Rev7...
- Page 2 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: FI.WR.INS.057_WKIN00145_BASE_500-1000_SINK_HOB_1-2Dr_Rev7...
- Page 3 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Panel A Panel B Panel C Panel D Frontal Shelf Rail x2 End Panel x1 Back Panel x1 Fixed Shelf x1 Rail x1 or 2 as req’d x1 Loose Shelf x1 Metal Rail (800-1000 Folded) (Packed Separately) Page 3...
- Page 4 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide (G) x6 (F) x8 (L) x26 (K) x8 (H) x6 Wooden 15mm 30mm Cam Dowel Cam Lock (Expanding) Dowel Screw Screw (M) x4 (Z) x4 (N) x2 L Bracket Cover Cap Shelf Peg Metal Door Buffer Hinge Mounting Plate...
- Page 5 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 5 For Internal Use: FI.WR.INS.057_WKIN00145_BASE_500-1000_SINK_HOB_1-2Dr_Rev7...
- Page 6 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Metal Rail Metal Rail Insert Insert Page 6 For Internal Use: FI.WR.INS.057_WKIN00145_BASE_500-1000_SINK_HOB_1-2Dr_Rev7...
- Page 7 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 3. Attach panel (C) & metal rail to panels (A) using expanding cam dowels (G), and wooden dowels (F) in positions as shown. Secure metal rail with 2 x 15mm screws (L) into panels (A). All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 8 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 4. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. The back panel (B) is to be modified accordingly to suit customer requirements, prior to inserting into unit.
- Page 9 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 5. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 9 For Internal Use: FI.WR.INS.057_WKIN00145_BASE_500-1000_SINK_HOB_1-2Dr_Rev7...
- Page 10 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 6. Ensure the unit is square. Secure back panel (B) with 4 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge).
- Page 11 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 7. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg.
- Page 12 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Step 8. Attach hinge plates onto both end panels (A) as shown, using 2 screws already located in hinge plates. Hinge to be mounted in accordance to customer specific kitchen plan. From top 94mm 126mm...
- Page 13 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 9.
- Page 14 BASE UNIT 500-1000, Sink Hob 1-2 Door Assembly Guide HINGE ATTACHMENT AND ADJUSTMENT Step 1. Insert hinges into frontal hinge holes provided, secure hinges with Hinge dowels the 2 x screws and hinge dowels already located in the hinges. Step 2. Attach the door to unit, clip hinges onto hinge plates and click to secure.
