CCL-WB2MC-SMART-TRI
6.5.2 WIRING

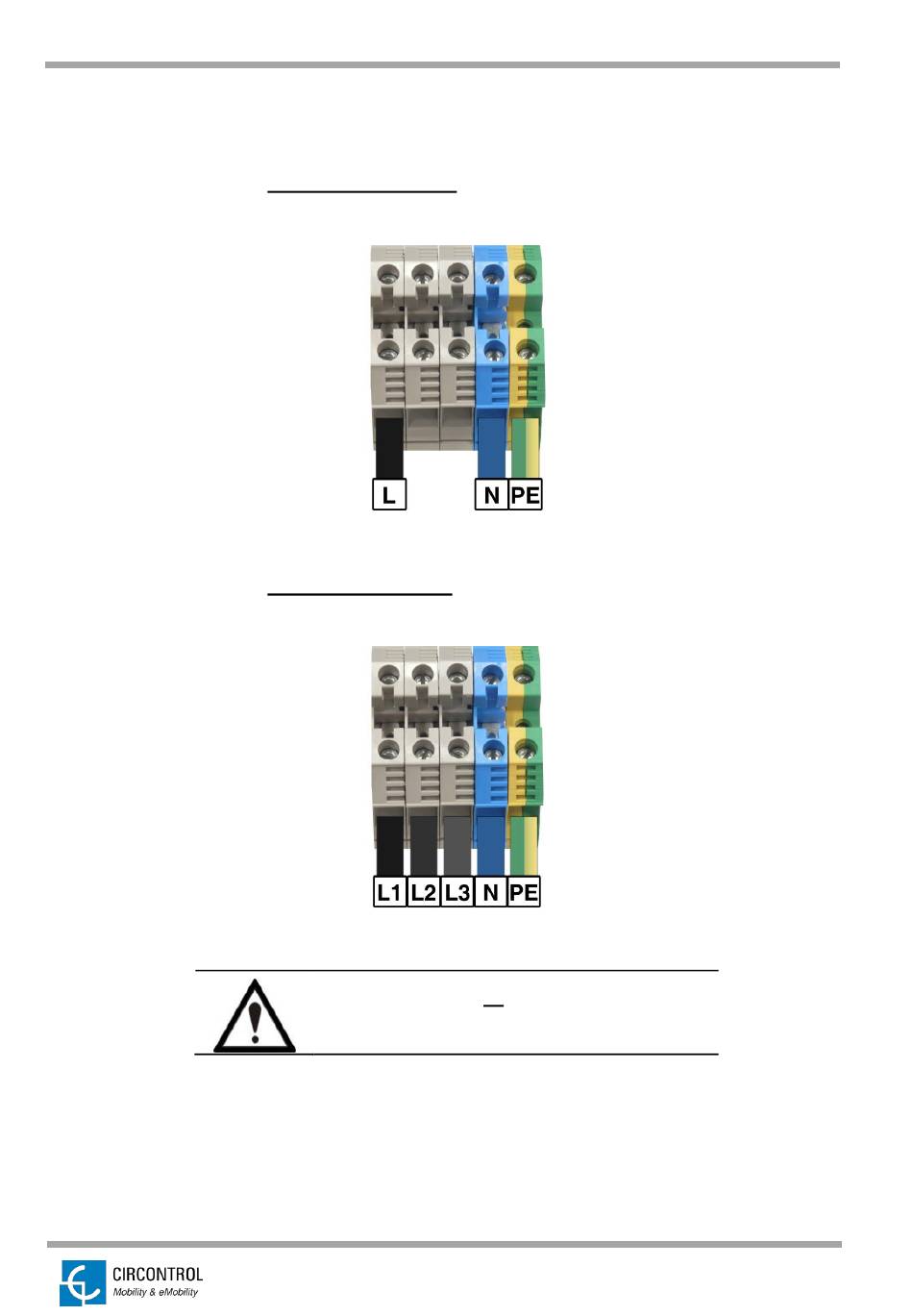

SINGLE-PHASE WIRING
-
Perform the 230V AC Single-phase connection as shown.
-
Do not forget to connect the ground cable (PE) to the supply terminal.
THREE-PHASE WIRING
-
Perform the 400V AC Three-phase connection as shown.
-
Do not forget to connect the ground cable (PE) to the supply terminal.
Make sure that all screws are securely
tightened.
19
INSTALLATION MANUAL
© CIRCONTROL
