Electrical Installation; Protections - Circontrol WALLBOX SMART Series Installation Manual

CCL-WB2MC-SMART-TRI
6.5

ELECTRICAL INSTALLATION

6.5.1 PROTECTIONS

Charge point does not include elements of electrical protection.

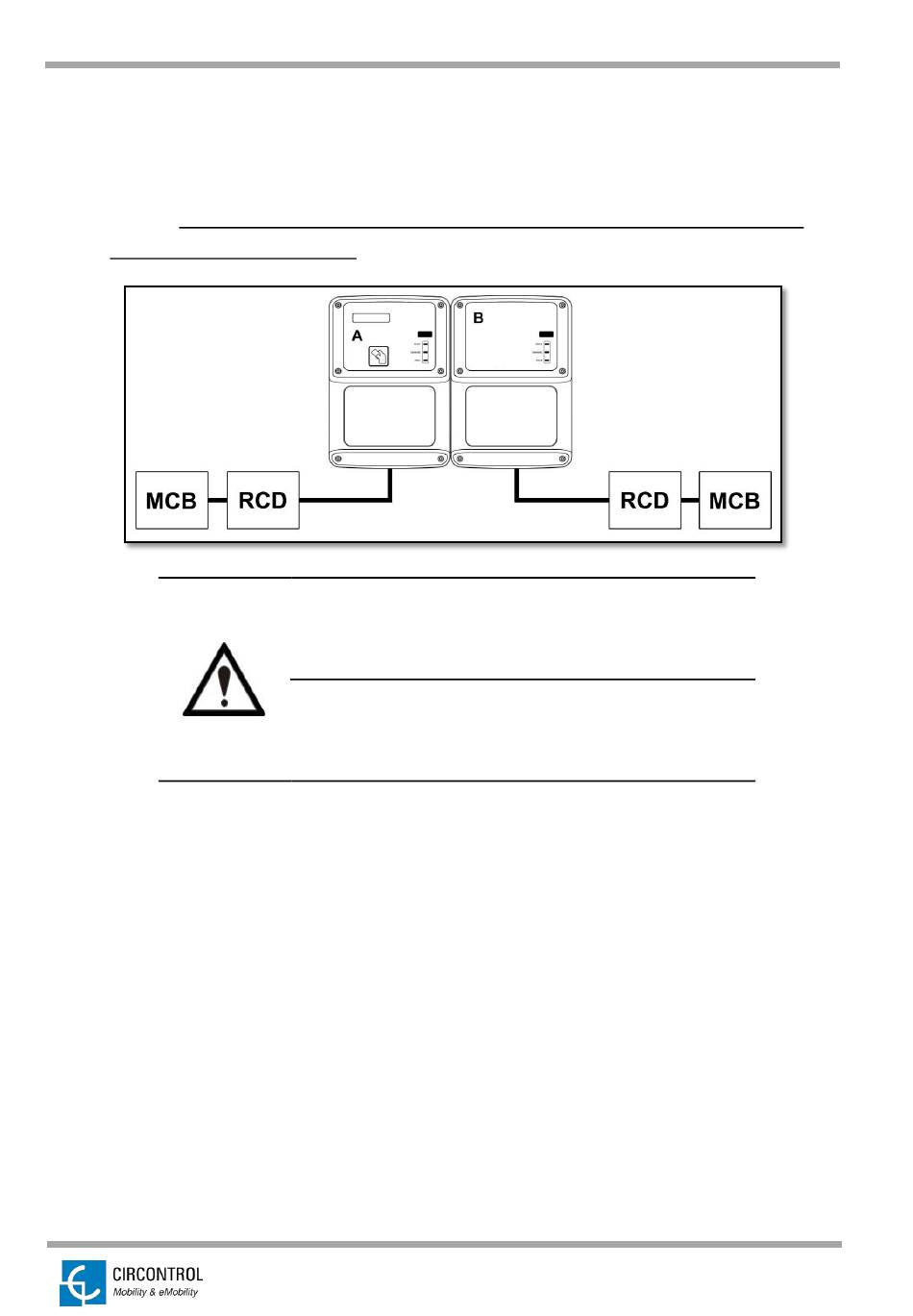

Please, provide a Miniature Circuit Breaker (MCB) and a Residual Circuit Breaker
(RCD) individually to each plug in order to protect the charging unit electrically.
Each plug is set to 32A from factory default
settings.
Power supply wires should be introduced below of
the unit.
