Summary of Contents for Circontrol Wallbox eHome Link

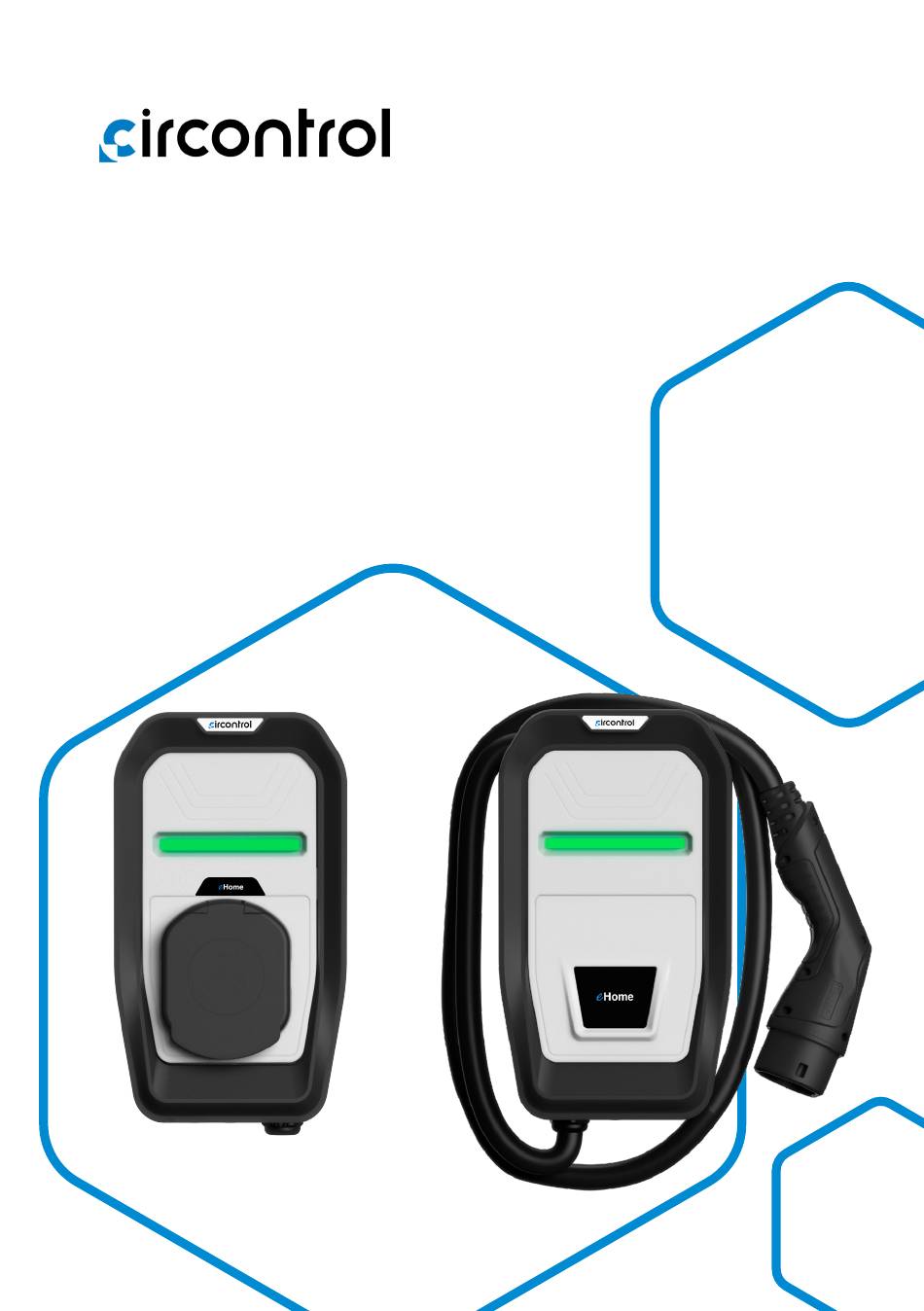

- Page 1 User Manual Wallbox eHome Link...
- Page 3 C O P Y R I G H T I N F O R M A T I O N This document is copyrighted, 2023 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: Table Of Contents
Here’s your guide to use and configure eHome Link 1 — So, hello! 2 — Overview 3 — Operating Instructions 4 — Additional Features 5 — Need help? - Page 6 Wallbox eHome Link - User Manual This manual provides information about the usability of the eHome Link, which has been designed and tested to allow electric vehicle charging according to IEC 61851- 1:2017. This manual contains all the necessary information for a safe use.
-
Page 7: So, Hello
• Do not modify this unit. If modified, don’t close...). Circontrol will reject all responsibility and the warranty will be void. • Use only Circontrol supplied spare parts. • The Charge point does not support the ventilation optional function described •... - Page 8 Wallbox eHome Link - User Manual S H O R T D E S C R I P T I O N WB eHome Link is specially designed to be easily installed both in outdoor and indoor private car parks, and to be compatible with all the EV models of the market according to European standard IEC 61851-1, by just plugging your car.
-
Page 9: Overview
Overview 1 — Circontrol Logo 4 — Cable + connector 2 — Status LED bar 5 — Frame 3 — Front cover 6 — Socket-outlet* (*) Socket-outlet may vary depending on the model... - Page 10 Wallbox eHome Link - User Manual...
-
Page 11: Operating Instructions
Operating Instructions 3.1 Charging procedure 1 — G R E E N F I X B A R S T A T U S The eHome Link has a status LED beacon. When it is in green color, it means that the unit is available and ready to start the charge. - Page 12 Wallbox eHome Link - User Manual 4 — B L U E D Y N A M I C B L I N K I N G L E D S T A T U S The eHome Link starts the charge process. While charging the EV, the LED light bar will be flashing continuously.
- Page 13 3.2 Status LED light errors The eHome Link is capable of detecting the following operating errors: - Disabled Socket-outlet - D state Error - E state Error - Proximity Error - Negative PWM voltage Error - RCD Error - Maximum selected output current Error - Welded Contact Error - Temperature Error Whatever the error case is, the Charge Point will stop charging and technical assistance...
- Page 14 Wallbox eHome Link - User Manual 3 — E S T A T E E R R O R This means that there has occurred a communication error between the EV and the Charge Point. If this is the case, the status LED light bar turns into red and flashes in a sequence of two blinks.
- Page 15 7 — M A X I M U M S E L E C T E D O U T P U T C U R R E N T E R R O R If this on-board current limit selection is not set up according to the hardware features, the Charge Point detects it and shows this error.
- Page 16 Wallbox eHome Link - User Manual...
-
Page 17: Additional Features
Additional Features This unit will be eqquiped with an overvoltage protection device, a meter reconnection function and an integrated RCD Type A 30 mA + DC 6 mA leakage detector. O V E R V O L T A G E This device is an electronic line overvoltage protection to protect the EV. - Page 18 Wallbox eHome Link - User Manual...
-
Page 19: Need Help
Need help? In case of any query or if further information is required, please contact our Post-Sales Department. support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941... - Page 20 CIRCONTROL WALLBOX eHOME LINK USER MANUAL A comprehensive guide on how to use and configure your Wallbox eHome Link. v1.2 - 10 June 2023 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
