6.3.1 CABLE INSERTION FROM ABOVE / BELOW

There are three insertion openings available at the top and bottom sides of the charge
point.
- Before break out the required openings, take into account the space between
internal electronic and wires inside the charge point.

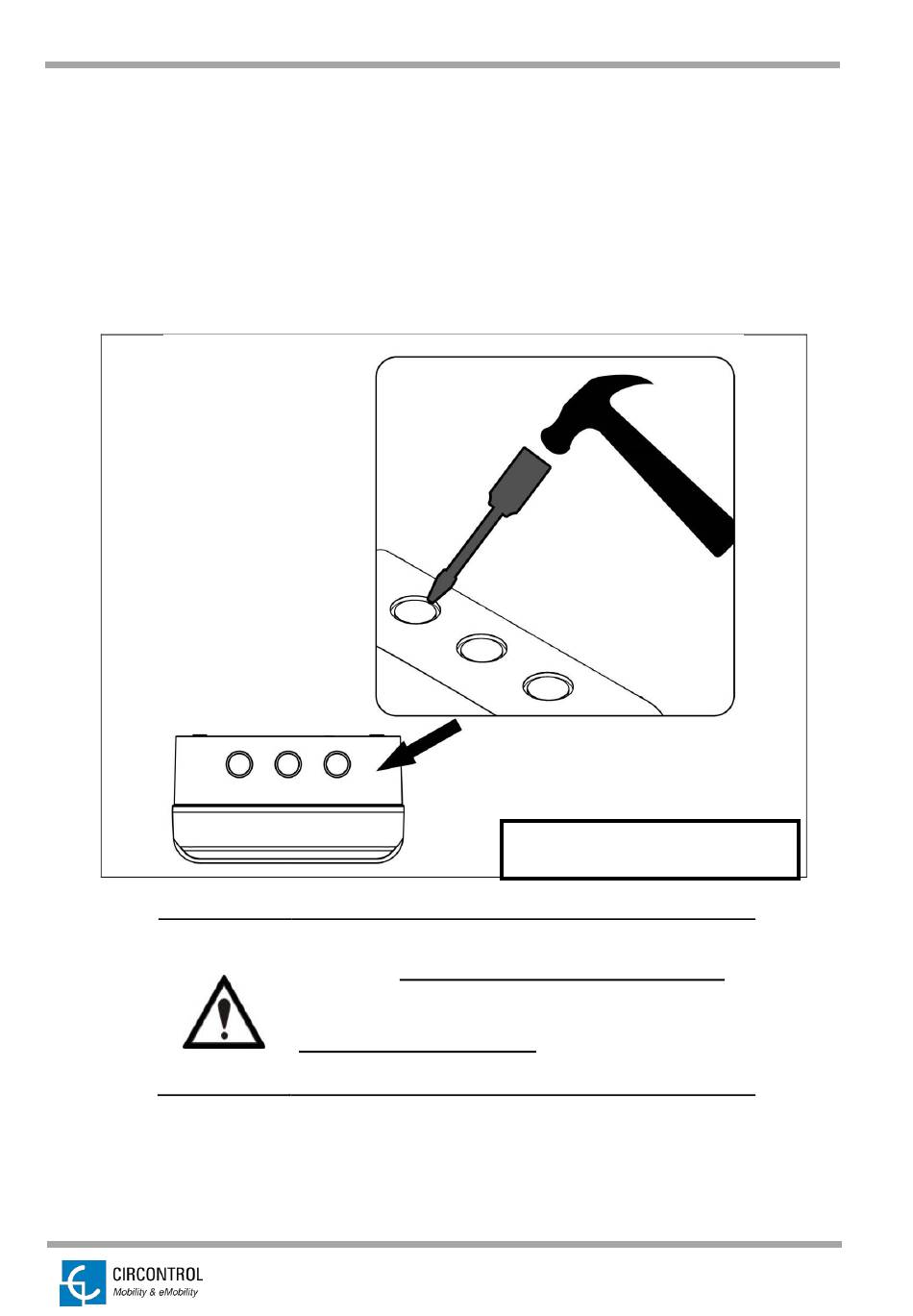

- Use a hammer and a flathead screwdriver and carefully break out the cable
insertion openings.
Do not make new holes in others parts of the
enclosure. Use only the cable insertion openings to
install the required electric pipes.
Install always cable glands to ensure IP protection
of the charge point.
13
INSTALLATION MANUAL
TOP / BOTTOM VIEW
