Parking Brake

• Always keep parking brake adjusted for maximum performance. Improperly
adjusted parking brake may result in property damage, serious injury, or death.

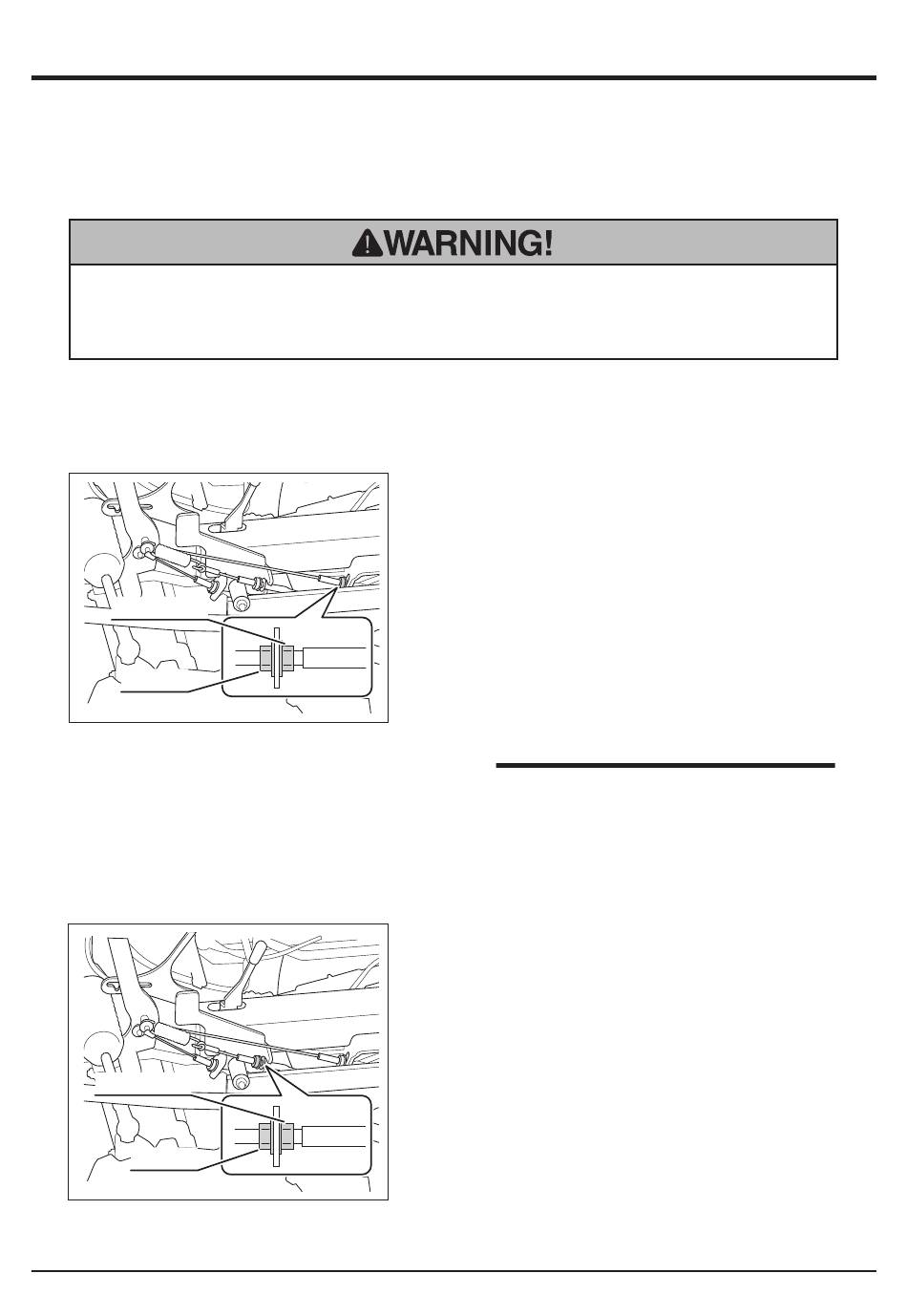

Adjusting Nut
Lock Nut
5347M-0507-071E
Adjusting Nut
Lock Nut
5347M-0507-101E
Maintenance
1. Park machine on level ground.
2. Remove left step.
Rear Brake
3. Loosen the lock nut
4. Adjust the brake with the adjusting nut
so that the brake does not drag when the
parking brake pedal is free.
5. Adjust the brake so that the brake works and
the parking brake pedal locks securely when
the parking brake lock lever is applied
6. Tighten the lock nut.
NOTE
• If the brake does not work even the parking
brake pedal is locked, the brake shoe is
worn out. Please contact your CANYCOM
representative for replacement.
Front Brake
7. Lock the parking brake pedal and inspect
that the stretch of the spring is between 5mm
and 8mm. If it is not within this range, adjust
it with the adjusting nut.
8. Tighten the lock nut after adjustment
9. Install the left step back in place.
