CanyCom Masao CMX2302 Operator's Manual page 83

• Never attempt to check the performance of the mower brake with the cutting
blade shield open. Stones or rocks can be thrown and cause damage to
surrounding properties or persons.
• Inspect the mower brake whenever the performance of it seems inadequate.
• Stop the engine when adjusting the mower brake.
Inspecting
1. Start the engine.
2. Turn the throttle lever to [
3. Move the cutting height adjust lever to [150] for CMX 2106 and CMX1808.
4. Move the mower clutch lever to [ON] to run the mower.
5. Move the mower clutch lever to [OFF] to observe if the mower stops. If it does not stop
(if it keeps turning by inertia), adjust the mower brake. To see if the mower is running or
not, observe the rotating sound of the mower, or open the engine hood to observe the
rotation of the mower V-belt. Avoid observing inside the cutting blade shield directly.

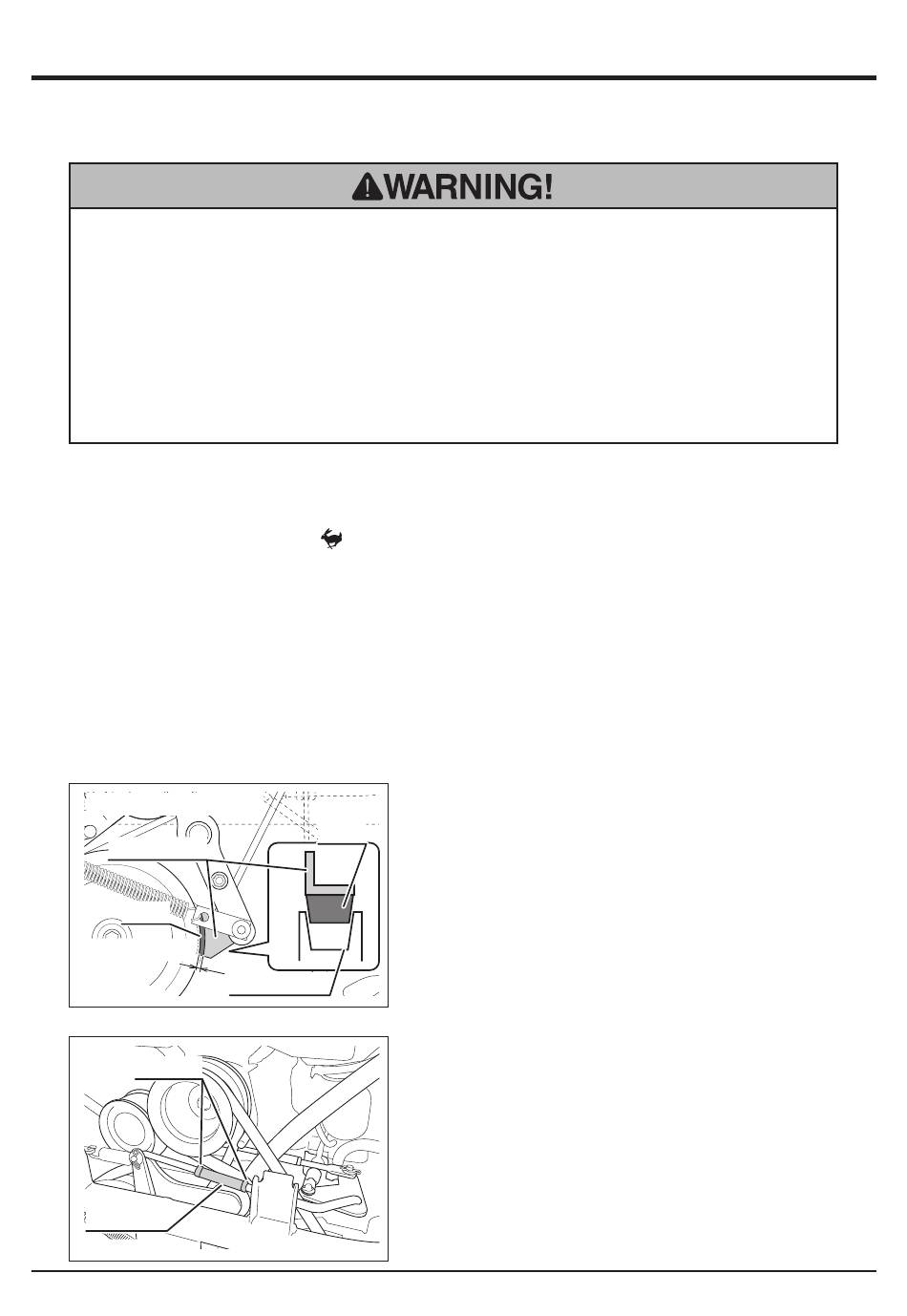

Mower Clutch Lever: [ON]
Backing Plate
Lining
Less than 5mm
Lining Groove
5347M-0508-032E
Lock Nut
Turnbuckle
5347M-0508-040E
Maintenance
] (fast) to raise the engine speed.
Adjusting
1. Remove the engine hood, rear cover, and
Lining
bumper.
2. Move the mower clutch lever to [ON].
3. Visually inspect if the brake lining is not in
contact with the lining groove on the pulley.
Also inspect if the gap between the backing
plate and the pulley is 5mm or less.
4. If the lining is in contact with the lining
groove, or the gap between the backing plate
and the pulley is greater than 5mm, adjust
the turnbuckle.
-73-
