CanyCom Masao CMX2302 Operator's Manual page 79

Blade Pin
Replace when either
of the part wears out
5331M-0508-010E
5332M-0508-040E
Cutting Blade Stay
Mounting Slot
Flat Surfaces
Blade Pin
5347M-0508-080E
Maintenance
Inspecting
1.
2.
Wear Limit
New
NOTE
• Wear Limit
3.
15mm
4.
NOTE
When New
• Wear Limit: Up to the solid line in the
left figure (should have more than 15mm
clearance between the edge of the cutting
blade stay and mounting slot.)
Mounting, Dismounting Hole
Lug Hole
Blade
Rotating Direction
Wave Washer
-69-

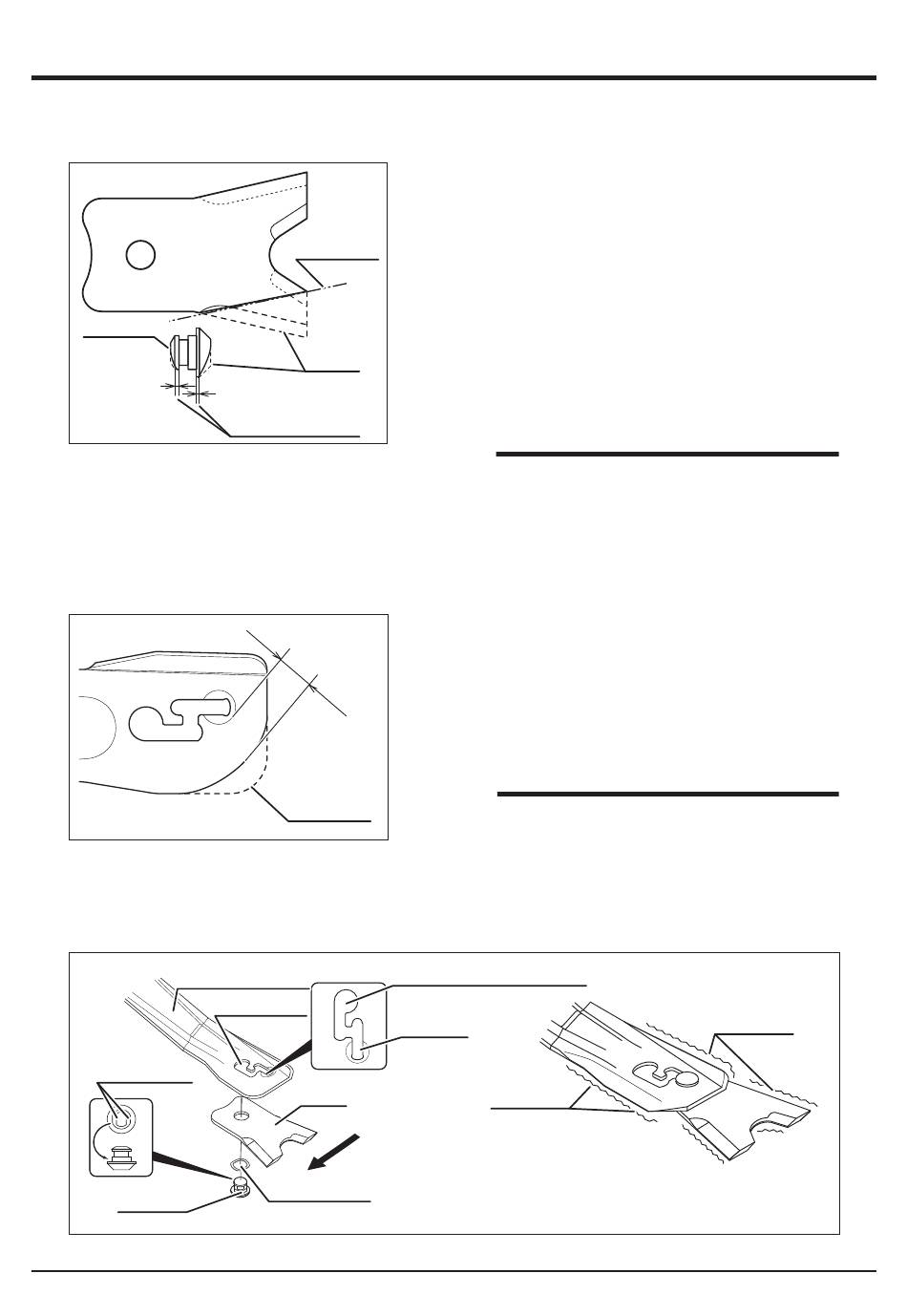

Open the cutting blade shield.
Visually inspect the blades and blade pins
for wear and damage. If the blades are worn
normally, turn them over and use. Replace if
both of the edges are worn. If the blades or
blade pins are worn excessively, deformed,
damaged, or missing, replace them with new
ones.
Blade: Up to the line connecting the outer
edge and the inner edge.
Blade Pin: Up to either of the shoulder.
Inspect the cutting blade stay. If the stay is
worn excessively, deformed or damaged,
contact your CANYCOM representative and
have it replaced with a new one.
Close the cutting blade shield.
Wear Area
Handle with care.
These parts may become sharp
5
Wear Area
