CyberData 011186 Operation Manual page 89

Operations Guide

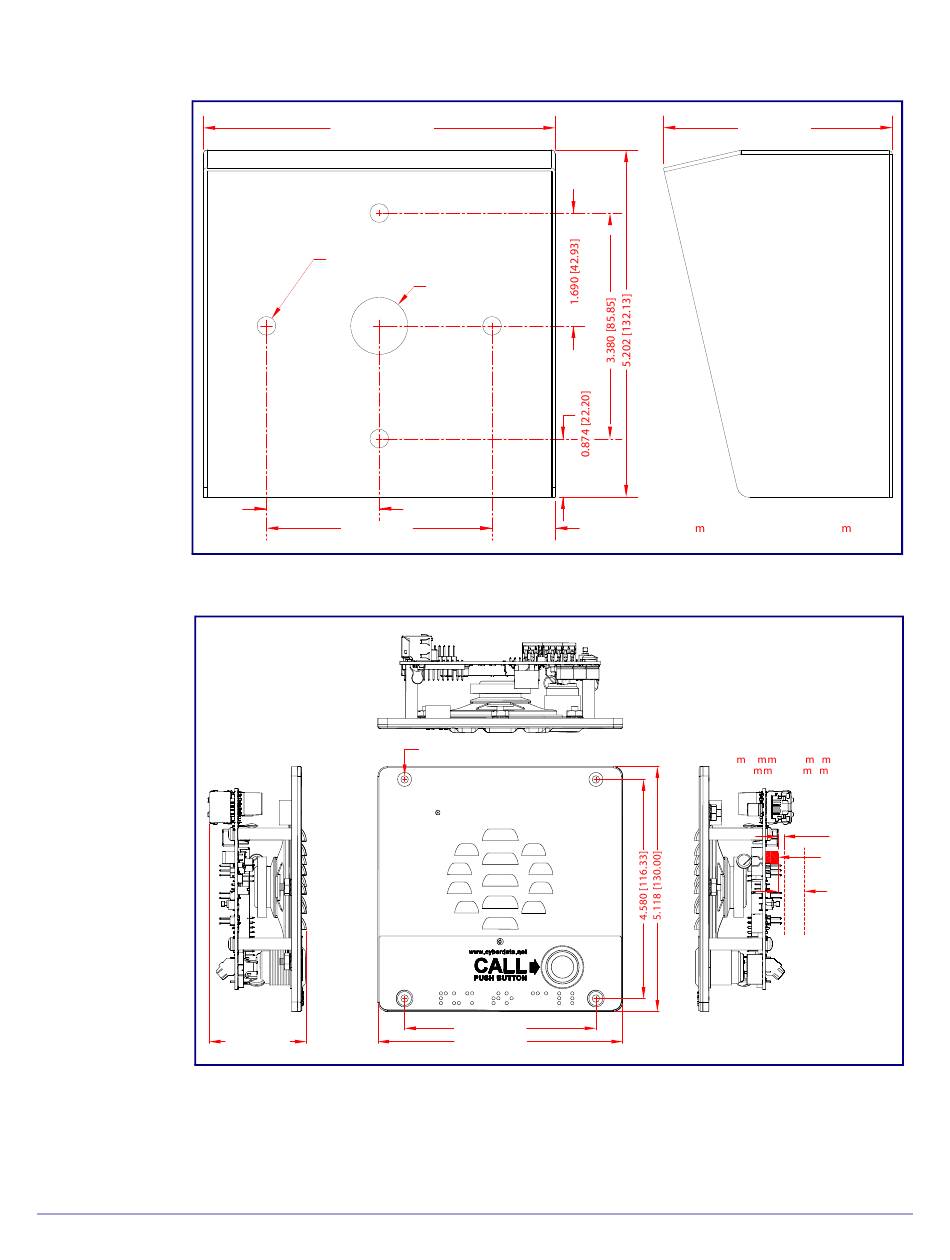

Figure A-3. Shroud Dimensions—Front and Side View with Mounting Hole Locations
5.276 [134.00]
ø0.280 [ø7.11]
(4 PLACES)
1.690 [42.93]
3.380 [85.85]
Figure A-4. Unit Dimensions—Unit without the Gang Box
2.026 [51.47]
DIMENSIONS ARE IN INCHES [MILLIMETER]
ø0.854 [ø21.69]
0.948 [24.07]
0.156" [4.0] THROUGH HOLE
82 DEGREES COUNTERSUNK (4 PLACES)
4.000 [101.60]
5.118 [130.00]
930796K
Mounting the Intercom
Dimensions
3.434 [87.23]
Di ensions are in Inches [Milli eter]
*
Effective Range for
Intrusion Sensor to Function
Affix Reflective Surface Above
Intrusion Sensor
fro 3 (Mini u )
to 14 (Maxi u )
0.118 [3.00]
*
Intrustion
Sensor
0.551 [14.00]
CyberData Corporation
82
