CyberData 011186 Operation Manual page 19

2.3.3.3 Connecting the Networked Door Strike Intermediate Relay
For wiring an electronic door strike to work over a network, we recommend the use of our external
Networked Door Strike Intermediate Relay (CD# 011270).
This product provides an easier method of connecting standard door strikes as well as AC and
higher voltage devices. See
802.3af Compliant Ethernet Switch
1 2 3
Intercom
Operations Guide
Figure 2-5

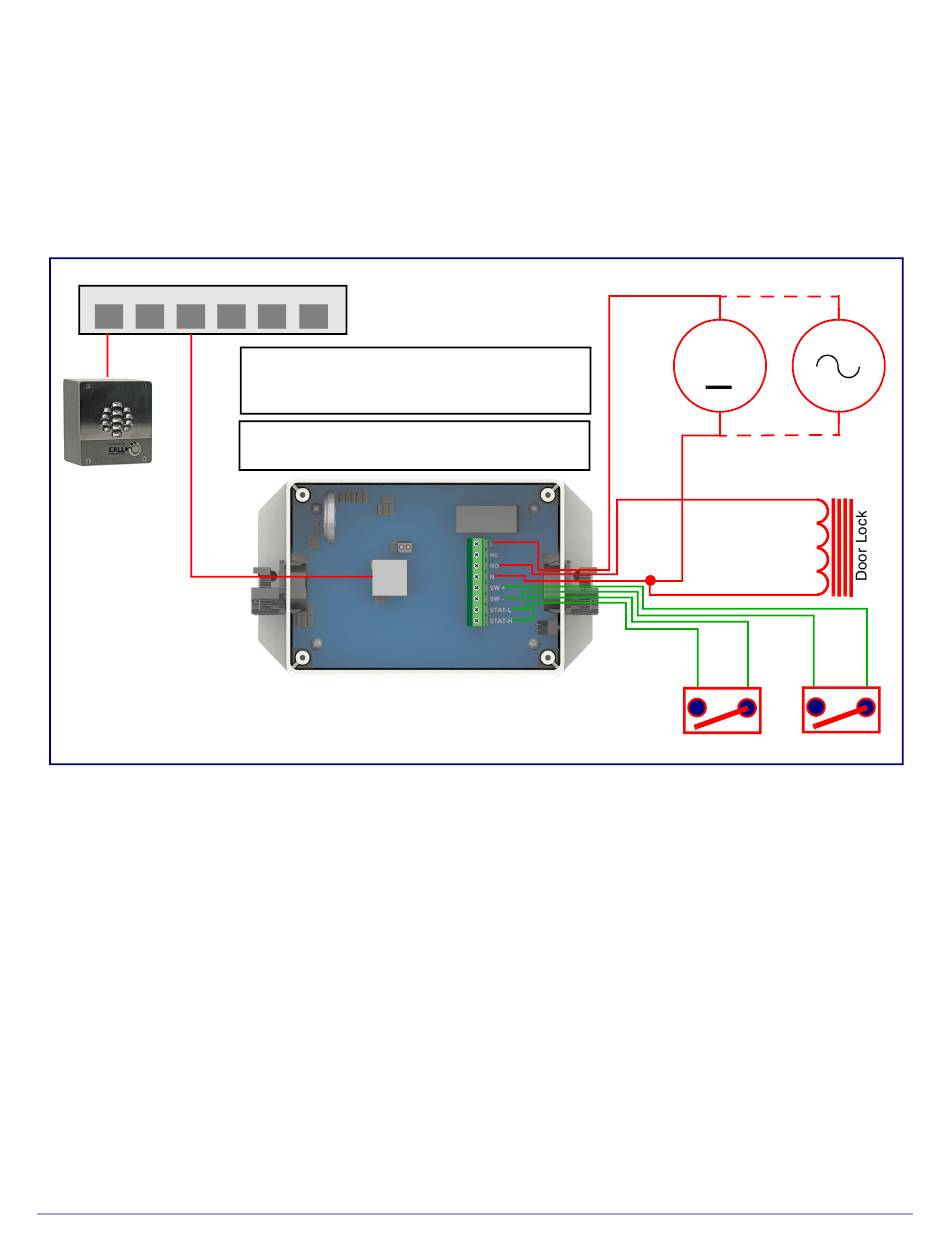

Figure 2-5. Wiring Diagram
4 5 6
Please refer to the Networked Door Strike 
Intermediate Relay Operations Guide for connec-
tion specifics.
See Section 2.4.12, "Configure the Door Strike
Relay" for configuration options.
for the wiring diagram.
930796K
Installing the VoIP Outdoor Intercom
Intercom Setup
+
AC Source
DC Source OR
Sense Input Aux Button
CyberData Corporation
12
