MAX30001 Evaluation System
BioZ Channel Tab
The BioZ Channel tab
(Figure
in the ECG Channel tab, controls on this tab configure the filters and amplifiers of the device's BioZ channel.
A detailed description of all BioZ channel configuration settings can be found in the MAX30001 data sheet.

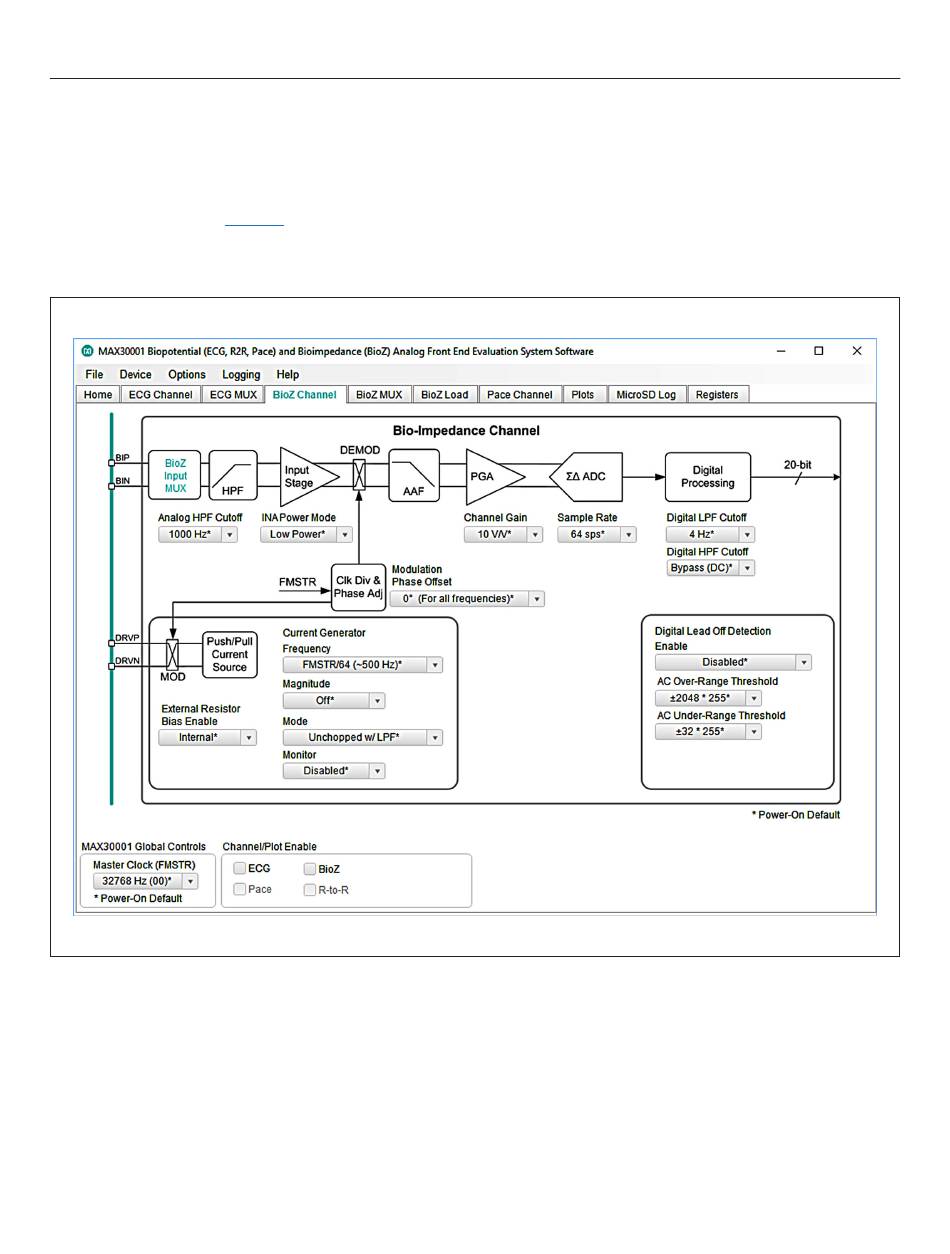

Figure 8. BioZ Channel Tab.
www.analog.com
8) hosts the settings that control the BioZ components following the BioZ Input MUX. As
Evaluates: MAX30001
MAX30002
Analog Devices │ 9
