MAX30001 Evaluation System Evaluates: MAX30001
MAX30002
Home Tab
The Home tab (Figure 5) provides an overview of the MAX30001 EV kit's features and preset register configurations.
Teal text in the MAX30001 block diagram links to that functional block's tab in the GUI.
Below the block diagram are six Quick Start Settings that configure the device's registers according to the Quick
Start Settings description. To load a Quick Start Setting, click on the desired setting in the left box and click on Apply
Settings. The MAX30001 will be written with the specified configuration. These presets allow users to quickly verify the
functionality of the EV kit. A button labeled "Go To Plot Tab" will change the GUI to the Plots tab where a live graph of
data being measured can be initiated by clicking the "Start Monitor" button.

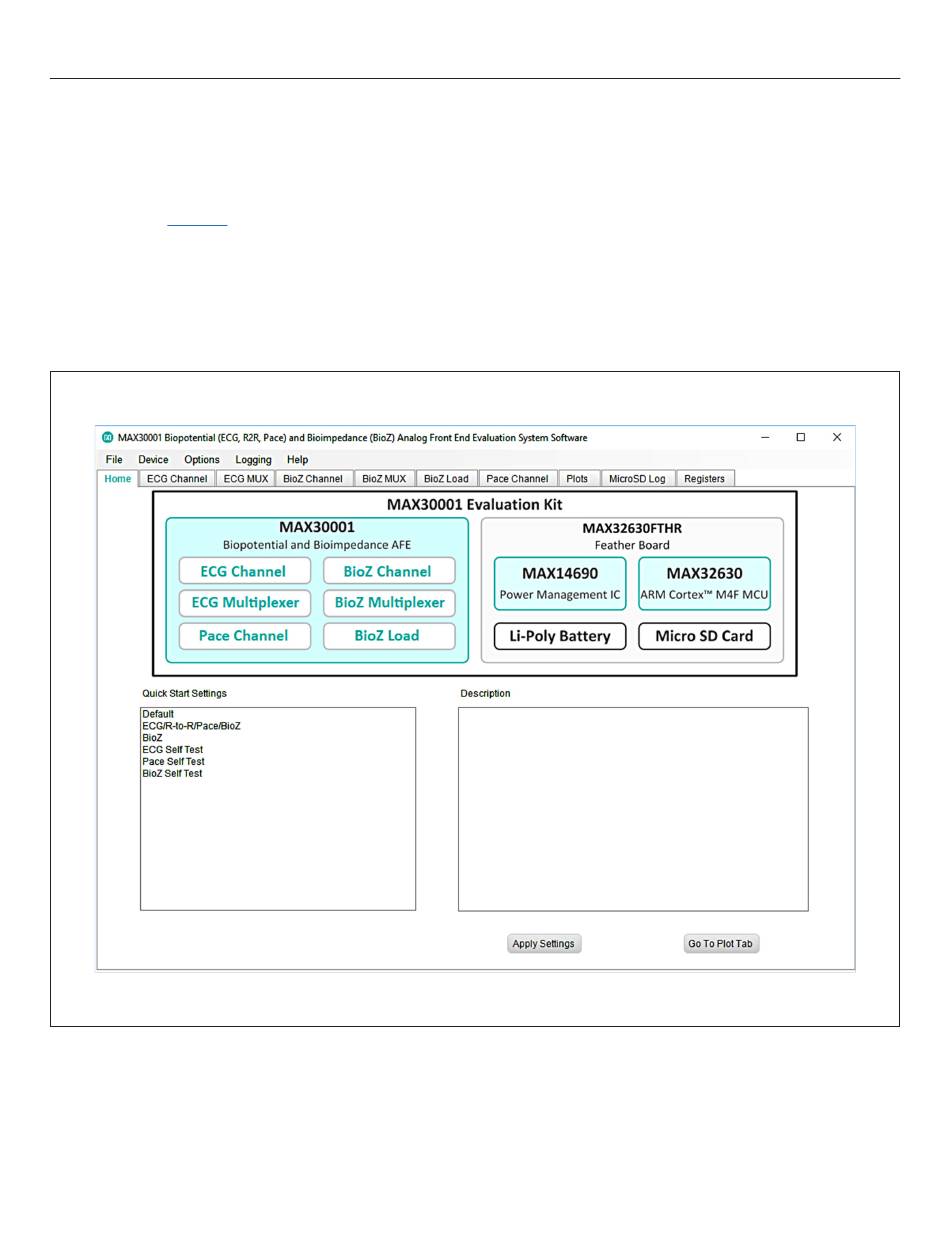

Figure 5. MAX30001 EV Kit GUI Home Tab
