Wren FI.PK.FIT.009 Fittings Manual page 4

WALL CABINET
PENINSULAR FITTING GUIDE
FI.PK.FIT.009 - Peninsular Frame

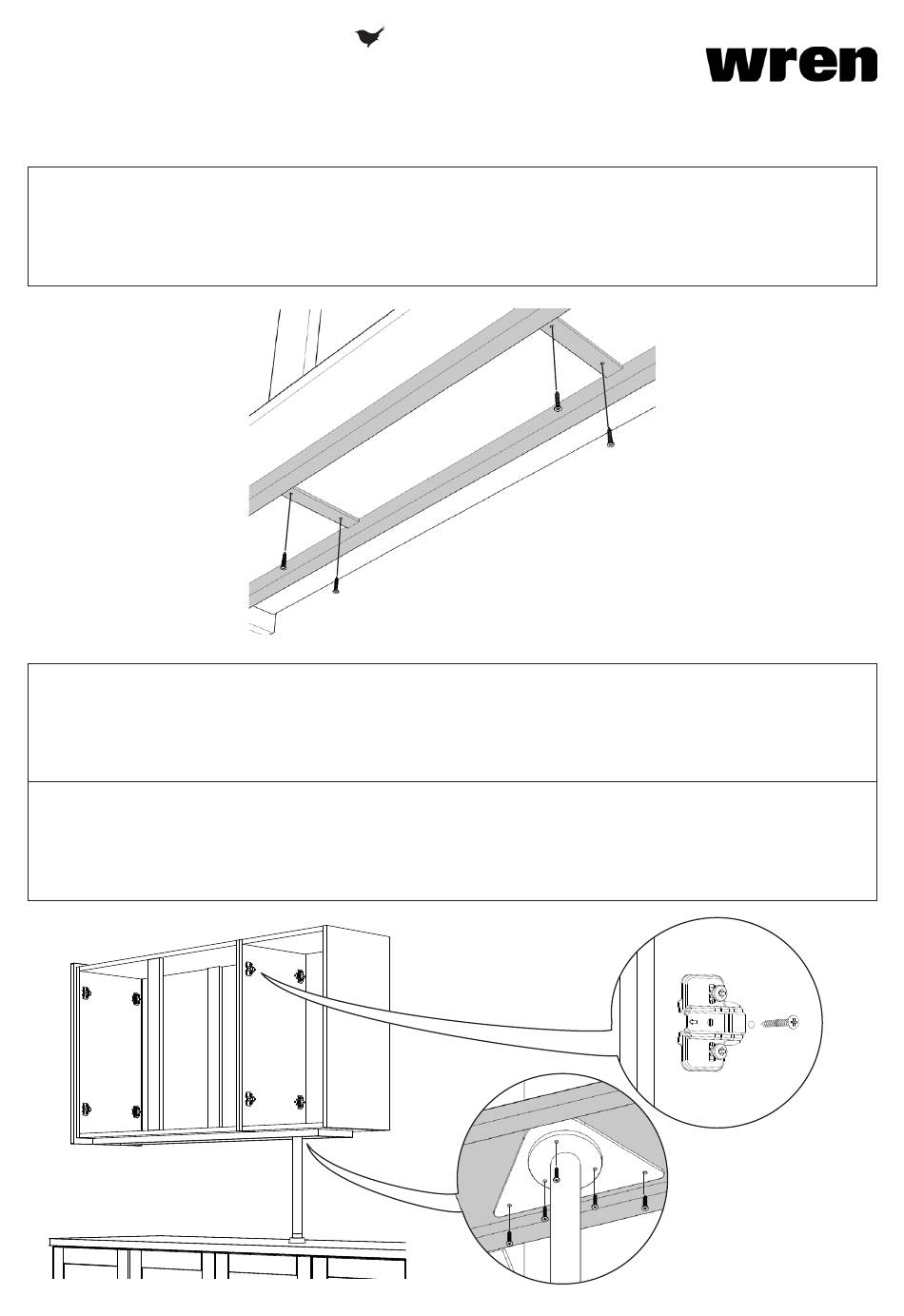

Step 6.
Screw the cabinet to frame using 3/4"screws provided.
Step 7.
Refer to customer specific kitchen plan, add any additional cabinets to the frame. Secure to adjoining
cabinets using 4 x 1 1/4" screws provided. Screw just to the rear of the hinge plates at the top and bottom on
both sides and place a cover caps on the heads to conceal them. Repeat as necessary.
Step 8.
Screw leg plate and frame into the cabinet using 3/4" screws provided.
For Internal Use: FI.PK.FIT.009_50-WKIN00203_Peninsular_Unit_Guide_Rev5
View From
Underside
