Wren INFINITY PLUS FI.PK.BED.111.010 Assembly Manual

800-1000, adjustable / stable corner robe
Hide thumbs

Advertisement

Quick Links

Download this manual
ROBE UNIT

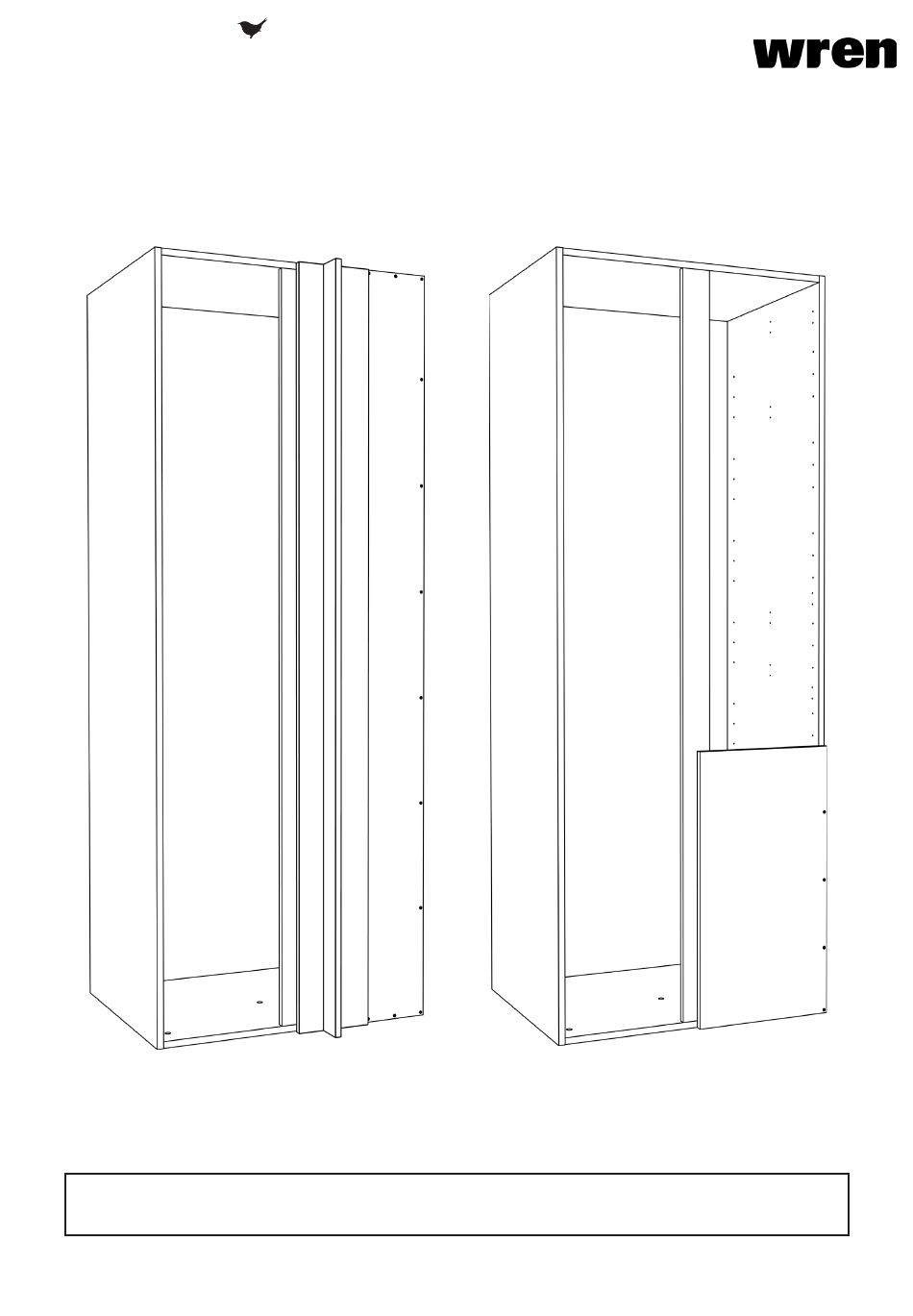

800-1000, Adjustable / Stable Corner Robe Assembly Guide
FI.PK.BED.111.010 - INFINITY PLUS

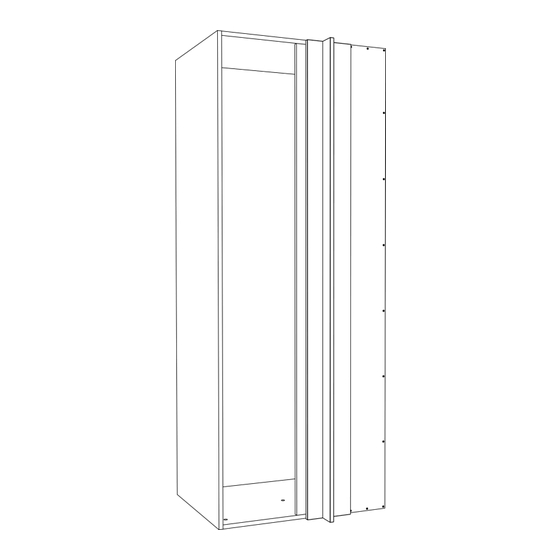

Adjustable Corner Robe
Stable Corner Robe
This guide is for use with 394 and 590 depth adjustable and stable corner robes.
For illustrative purposes the 590 robe is shown throughout.
For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2

Advertisement

loading
Need help?

Need help?

Do you have a question about the INFINITY PLUS FI.PK.BED.111.010 and is the answer not in the manual?

Questions and answers

Related Manuals for Wren INFINITY PLUS FI.PK.BED.111.010

Summary of Contents for Wren INFINITY PLUS FI.PK.BED.111.010

  • Page 1 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide FI.PK.BED.111.010 - INFINITY PLUS Adjustable Corner Robe Stable Corner Robe This guide is for use with 394 and 590 depth adjustable and stable corner robes. For illustrative purposes the 590 robe is shown throughout. For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2...
  • Page 2 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Hex Key NOT to be used with CAM DOWEL & CAM LOCK For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2 Page 2...
  • Page 3 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide CONTENTS Robe panels Components Muntin Post & Packer Fitting Leg Attachment Hinge Plate Locations Secure Robe To Wall & Adjacent Units 10-13 Internal Layout Options Hanging Rail Locations Adjustable Corner Post Construction Adjustable Corner Post Installation Stable Corner Blanking Panel Installation 18-19...
  • Page 4 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Muntin Post Adjustable Fixing Rails Hanging Rail / Loose Shelf Pack Adj & Stable Corner Post Panel Z1 & Z2 Blanking Panel For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2 Page 4...
  • Page 5 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide (J) x4 (K) x34 (L) x43 45mm 30mm 15mm Fixing Block Screw Screw Screw 170° Hinges 110° Hinges Hinge Mounting Plates Inc Screws Inc Screws Inc Screws FOR FULL HEIGHT DOOR FOR STABLE DOOR Soft Close Strike Plate...
  • Page 6 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Step 1. Join muntin panel (E) to unit. Use pilot holes to align muntin. Join muntin panel (E) and Fixed Shelves (C) using 4 x 45mm screws (J) as shown. Offset the muntin in the direction of the corner post / Stable corner blanking panel.
  • Page 7 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Step 3. Position top section of legs as shown. Ensure legs are rotated to provide support to the end panels (B). Secure with 2 x 15mm screws per leg. Attach bottom section of legs and set all legs to the same height. It is important to lift unit onto its legs.
  • Page 8 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Step 5. Stable Corner Attach hinge plates onto muntin post (E) to suit as shown using 2 screws already in hinge plates. Hinge side to be mounted in accordance to customer specific bedroom plan.
  • Page 9 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Screws for fixing to walls are not provided as these vary depending on your wall material and construction. Ensure appropriate fixings for wall constructions are used. Step 6. Ensure the unit is level and positioned correctly. Please refer to customer specific bedroom plan as robe position will very depending on unit depth and width.
  • Page 10 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide 590 DEPTH CORNER ROBE INTERNAL LAYOUT OPTIONS Adj Corner Robe Stable Corner Robe 1 Shelf and 1 Rail 1 Shelf and 1 Rail For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2 Page 10...
  • Page 11 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide 590 DEPTH CORNER ROBE INTERNAL LAYOUT OPTIONS Adj Corner Robe Stable Corner Robe 1 Shelf and 2 Rails 1 Shelf and 2 Rails For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2 Page 11...
  • Page 12 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide 590 DEPTH CORNER ROBE INTERNAL LAYOUT OPTIONS Adj Corner Robe Stable Corner Robe 4 Shelves and 1 Rail 4 Shelves and 1 Rail For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2 Page 12...
  • Page 13 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide 394 & 590 DEPTH CORNER ROBE INTERNAL LAYOUT OPTIONS Adj Corner Robe Stable Corner Robe 7 Shelves 7 Shelves For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2 Page 13...
  • Page 14 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Hanging Rails. Attach hanging rail plates onto end panels (B) as shown using 2 x 15mm screws provided per hanging plate. Using the measurements below screw the hanging rail plate onto the end panel using the top hole.
  • Page 15 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Adjustable Corner Post. A. Cut panel (Y) to size according to customer specific bedroom plan. B. Corner post size can be adjusted by positioning panel (Yi) along panel (Yii). C. To create your corner post attach both panels (Yi) and (Yii) as shown. Screw through the back of the panel (Yii) into panel (Yi) using 10 x 30mm screws (K) equally spaced.

  • Page 16: Inside View

    ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide E. Place adjustable corner post flush with muntin post (E) & fixing rail (Z1) as shown, the position of the corner post is the width of the door + 6mm. From the inside of the unit screw through muntin post (E) & fixing rail (Z1) into the adjustable corner post securing together using 10 x 30mm screws (K) equally spaced.
  • Page 17 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Stable Corner Blanking Panel. A. Measure and cut blanking panel to size. Ensure to leave two sides of the panel with edgebanding on. B. Position the blanking panel on the front of the robe unit on the bottom left or right hand side. Refer to customer specific bedroom plan for left or right hand positioning of the blanking panel.
  • Page 18 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide 170° Hinge Attachment and Adjustment Step 1. Insert hinges into frontal hinge holes provided, secure hinges with the 2 x screws and hinge dowels already located in the Hinge dowels hinges.
  • Page 19 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Step 4. Fit soft close mechanism and strike plate to hinge. Step 5. Adjust soft-close to suit. The top and bottom hinges MUST be adjusted to the SAME STRENGTH. For Internal Use: FI.PK.BED.111.010_WBIN00015_2100_Robe_Adj_Stable_CRN_AssemblyGuide_Rev2 Page 19...
  • Page 20 ROBE UNIT 800-1000, Adjustable / Stable Corner Robe Assembly Guide Loose Shelves Secure shelf peg (JJ) to end panels (B) using 1 x 12.5mm screw (KK) per shelf peg. 4 x shelf pegs (JJ) are required per loose shelf. Position loose shelf onto shelf pegs (JJ) ensuring the spikes on the shelf pegs go into Shelf Peg the holes on the bottom of the loose shelf.
