Wren FI.PK.FIT.009 Fittings Manual page 3

WALL CABINET
PENINSULAR FITTING GUIDE
FI.PK.FIT.009 - Peninsular Frame

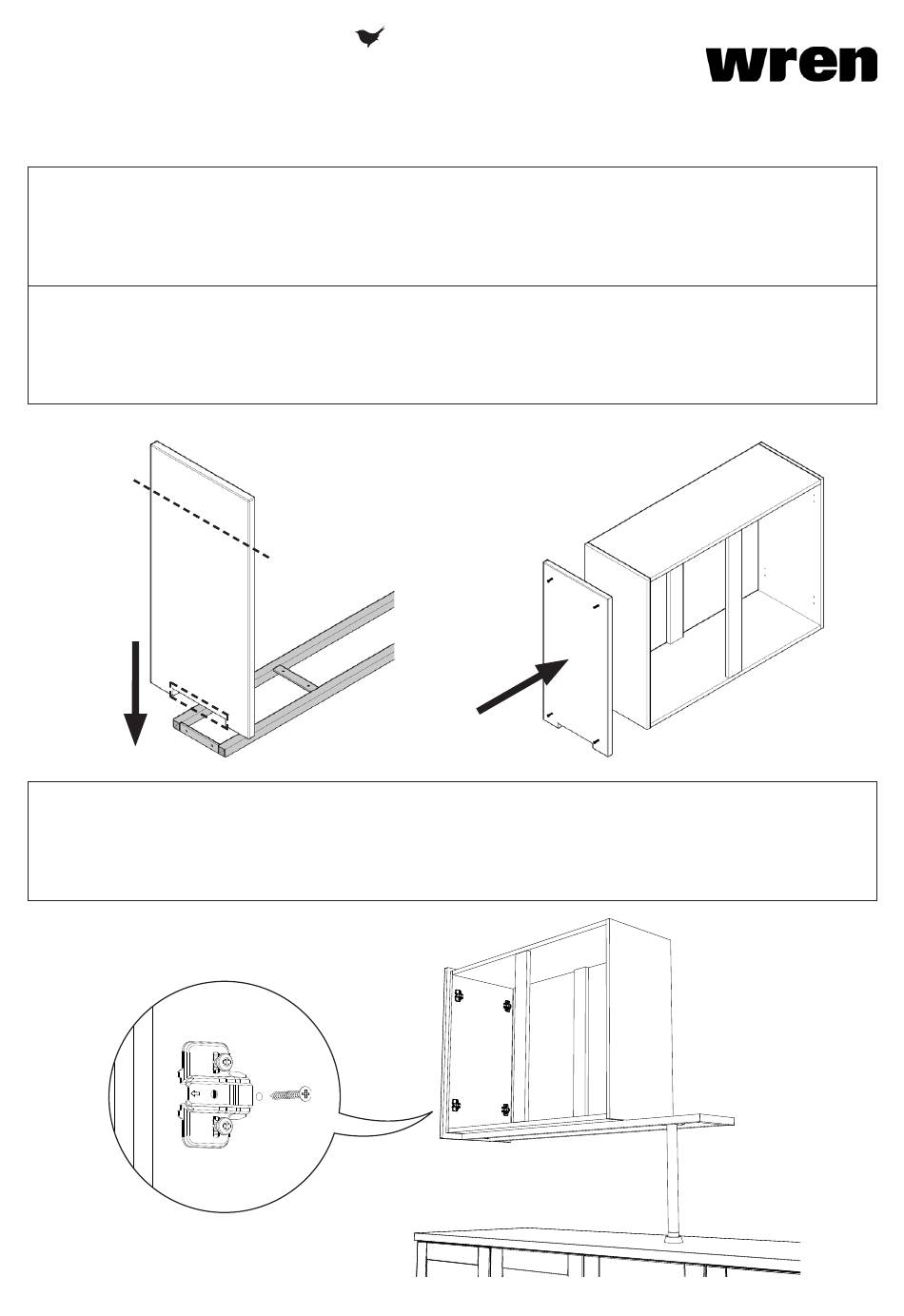

Step 3.
Cut the decor end panel to the required height. E.g. cabinet + crown molding + light rail or frame thickness*.
(*which ever is taller).
Cut out a notch in the bottom of the decor end panel, to fit to the frame. (E.g. the light rail height).
Step 4.
Attach the decor end panel to the first cabinet. Using 4 x 1 1/4"screws.
See customer specific kitchen plan for cabinet locations.
C u
C u
Step 5.
Place the cabinet up to the wall. Ensure the cabinet is level with the frame.
Secure cabinet to the wall using 4 x appropriately sized screws just to the rear of the hinge plate, through
the end panel and decor panel into the wall. Screws not supplied. Place a cover cap on the heads to
conceal them.
For Internal Use: FI.PK.FIT.009_50-WKIN00203_Peninsular_Unit_Guide_Rev5
