Intellitronix DP2001 Installation Manual page 3

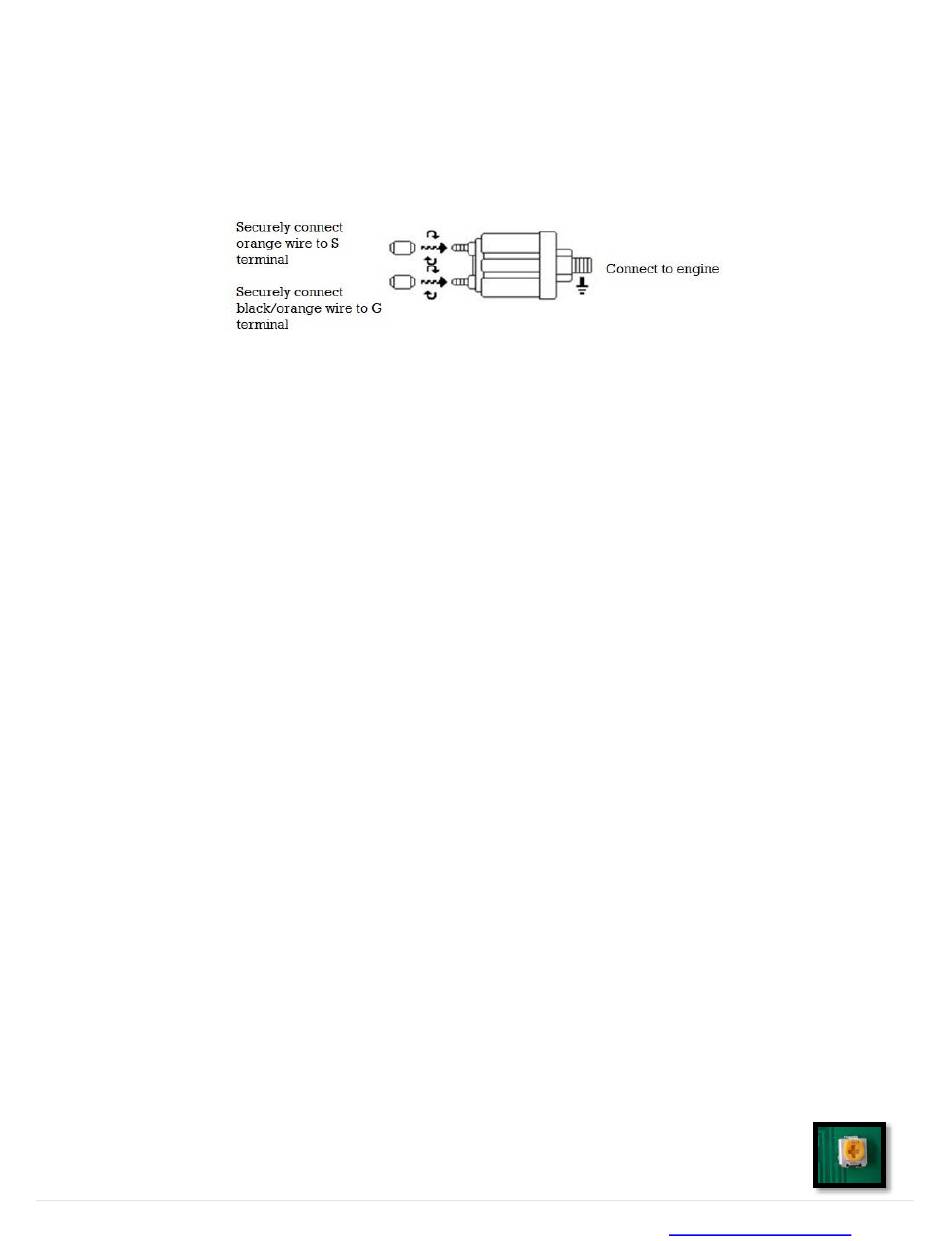

Oil Pressure – Orange - Replace the existing oil pressure sending unit with the unit included with
your gauge. The Orange wire will be wired to the S terminal on the sending unit. This gauge is
incompatible with other sending units.
Oil Pressure Ground Wire – Orange/black From the G terminal on sender will be wired to
ground on the engine block using 18 Ga wire to ensure proper ground!
Oil Temp – Orange/White Replace the existing oil temperature sending unit with the unit
included. Do not use Teflon tape or other sealer on the new sending unit's threads, to avoid
inaccurate readings. Connect the orange/white wire to the sending unit.
Oil Temp Ground – Red/White If your kit includes a single post sender replace the existing oil
temperature sending unit with the unit included. Do not use Teflon tape or other sealer on the new
sending unit's threads, to avoid inaccurate readings. Connect the orange/white wire to the sending
unit. If your kit included a two terminal sender connect the red and white wire to the blue and black
wire on the oil temp sender harness.
Dimmer – Purple
Connect to the parking lights to dim the LEDs 50% when the headlights are on. However, *DO
NOT * connect to the headlight rheostat control wire, or the dimming feature will not work properly and may cause
damage to Unit.
Brake – Tan - Connect to the parking brake wire from the dash to negative side of parking brake
light switch. NOTE: If you are using a one wire switch you may need to switch to a two-wire switch.
This wire is an optional wire some vehicles may not require
High-Beam – Brown - Connect the brown wire on the Dash unit to your high beam headlight circuit.
This wire is powered on when the high beam is turned on.
Turn Signals - Grey Two 18-gauge wires, one for each signal. Each wire is labeled on the printed
circuit board as 'LEFT' and 'RIGHT'. Connect each wire to its corresponding indicator circuit.
Check Engine - Green/Yellow Connect to the Negative side of the Check Engine Light circuit.
Check Engine light will come on when working with a PCM
OR
Right Turn Signals - Grey with White strip 18-gauge wire is the - RIGHT turn signal
Left Turn Signals - Grey with Black strip 18-gauge wire is the – Left turn signal. Each wire is also
labeled on the printed circuit board as 'LEFT' or 'RIGHT'. Connect each wire to its corresponding
indicator circuit.
Voltage Gauge – This Gauge Requires no wire hookup. Volt Gauge is built into the dash panel and
is powered by the main power and ground connection of the dash. It does have an
Adjuster to fine tune the voltage. Note: you will need to adjust it before fully installing
the dash
