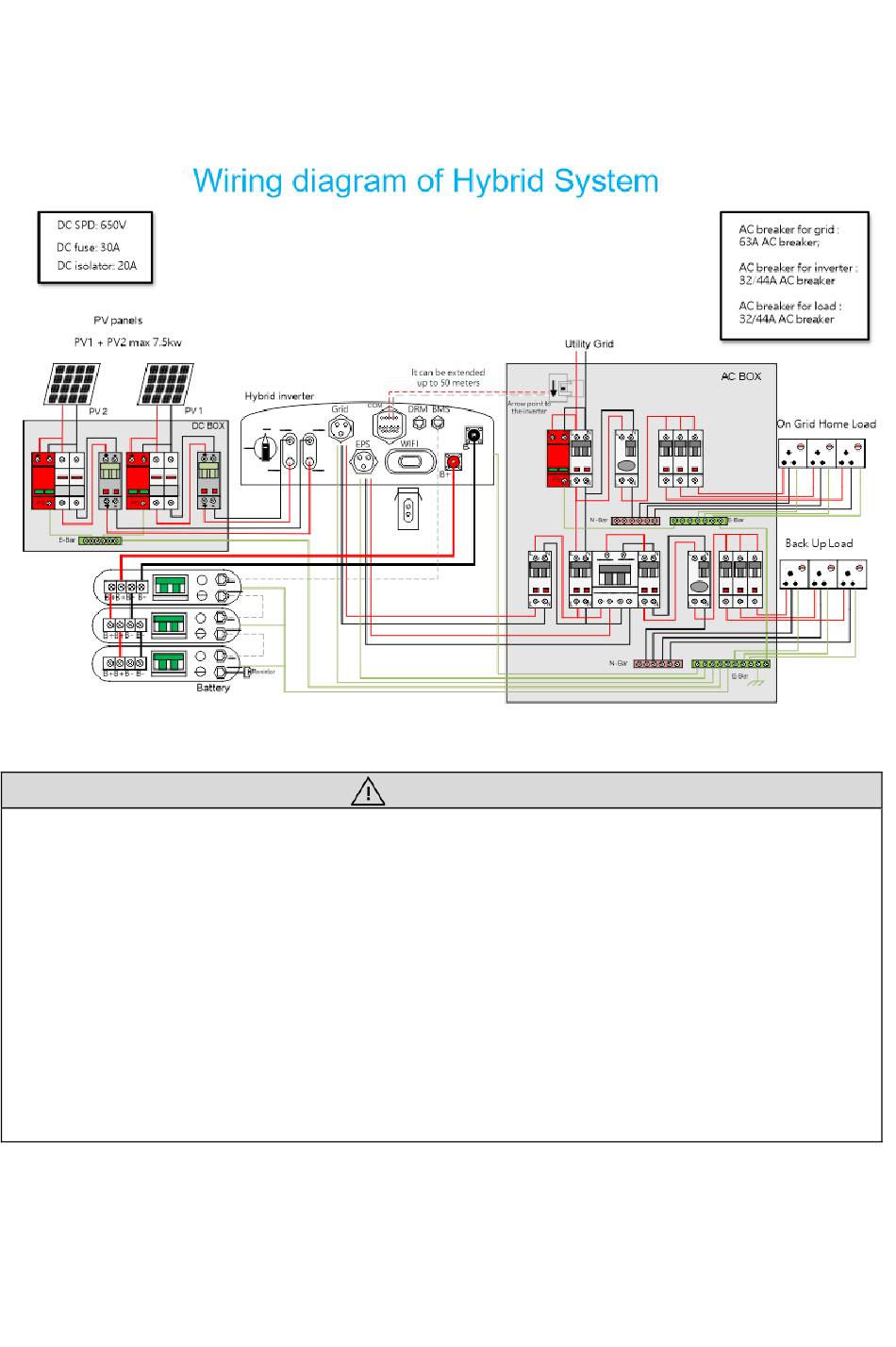

6.1 Wiring Diagram
WARNING
• N and PE wiring via ON-GRID and BACK-UP ports of the inverter are different based on the
regulation requirements of different regions. Refer to the specific requirements of local
regulations.
• For Australia, New Zealand and South Africa, the neutral cable of GRID side and BACK-UP
side must be connected together, otherwise EPS(BACK-UP) function will not work.
• In Australia and New Zealand, electrical installation and maintenance shall be conducted by
a licensed electrician and shall comply with Australia/New Zealand National Wiring Rules.
Because the inverter does not maintain neutral integrity, an external neutral connection must
be used in Australia and New Zealand. 30mA Type "A" RCD can be used where required by
AS/NZ_3000, but cannot be used if there are backup loads on the inverter as per AS4777.
• If the battery is integrated with a readily accessible internal DC breaker, no additional DC
breaker is required.
