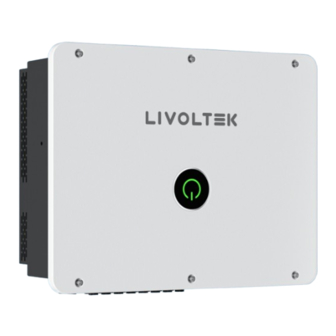

LIVOLTEK GT3-30kW Quick Installation Manual

Hide thumbs

page of 25

/ 25
Bookmarks

Available languages

Quick Links

Download this manual

QUICK INSTALLATION GUIDE

The copyright of this munual belongs to Hangzhou Livoltek Power Co.,Ltd. All

rights reserved. Without the written permission of the company. Any unit or

individual shall not extract or reproduce part or all of the contents of this

documents, and shall not transmit it in any form.

GT3-30~60KW

GT3-15~30KW-L

Ver.00

Need help?

Do you have a question about the GT3-30kW and is the answer not in the manual?

Questions and answers

Summary of Contents for LIVOLTEK GT3-30kW

Page 1 GT3-15~30KW-L Copyright Declaration The copyright of this munual belongs to Hangzhou Livoltek Power Co.,Ltd. All rights reserved. Without the written permission of the company. Any unit or individual shall not extract or reproduce part or all of the contents of this documents, and shall not transmit it in any form.
Page 2 Personnel Safty Personnel who plan to install or maintain Livoltek equipment must receive thorough training, understand all necessary safety precautions, and be able to correctly perform all operations. The qualiﬁed technician must be familiar with the safety regulations of electrical system, working process of PV power generation system, and standards of local power grid.
Page 3 Symbol on the Type Label Symbol Explanation CE mark. The inverter complies with the standards of the applicable CE guildlines. UKCA mark. The inverter complies with the standards of the applicable UKCA guildlines. UKNI mark. The inverter complies with the standards of the applicable UKNI guildlines. Direct Current (DC) Alternating Current (AC) Point of connection for grounding protection...
Page 4 Seguridad Inversor de red LIVOLTEK Serie GT3, ideal para hogares, empresas y lugares remotos. El inversor genera electricidad renovable a partir de energía solar y proporciona una salida de CA de onda sinusoidal pura para los equipos conectados.
Page 5 Símbolo en la etiqueta de tipo símbolo Explicación Marca CE. El inversor cumple los requisitos de las líneas aplicables del gremio CE. Marca UKCA. El inversor cumple los requisitos de las líneas gremiales UKCA aplicables. Marca UKNI. El inversor cumple los requisitos de las líneas gremiales UKNI aplicables. Corriente continua (CC) Corriente alterna (CA) Punto de conexión para la protección de puesta a tierra.
Page 6 Segurança O inversor on-grid da série LIVOLTEK GT3, ideal para residências, negócios e locais remotos. O inversor gera eletricidade renovável a partir de energia solar e fornece saída CA de onda senoidal pura para os equipamentos conectados.
Page 7 Símbolo na Etiqueta de Tipo símbolo Explicación Marca CE. O inversor está em conformidade com os requisitos das diretrizes CE aplicáveis. Marca UKCA. O inversor está em conformidade com os requisitos das diretrizes UKCA aplicáveis. Marca UKNI. O inversor está em conformidade com os requisitos das diretrizes UKNI aplicáveis.
Page 8 Veuillez consulter www.livoltek.com pour plus d'informations. Sécurité LIVOLTEK série GT3 onduleur sur réseau est idéaux pour les maisons, les entreprises et les régions éloignées. L'onduleur génère de l'électricité renouvelable à partir de l'énergie solaire et fournit une sortie CA à onde sinusoïdale pure pour les équipements connectés.
Page 9 Symbole sur l'étiquette de type símbolo Explicación Marquage CE. Les onduleurs sont conformes aux exigences des directives CE applicables. Marquage UKCA. L'onduleur est conforme aux exigences des lignes de guilde UKCA applicables. Marquage UKNI. L'onduleur est conforme aux exigences des lignes de guilde UKNI applicables. Courant Continu Courant alternatif Point de connexion pour la protection de mise à...
Page 10 Prosimy o sprawdzenie strony www.livoltek.com w celu uzyskania dodatkowych informacji. Sécurité Falownik sieciowy LIVOLTEK serii GT3, idealne rozwiązanie dla domu, ﬁrmy i odległych lokalizacji. Falownik generuje odnawialną energię elektryczną z energii słonecznej i zapewnia wyjście prądu AC w postaci czystej fali sinusoidalnej dla podłączonych urządzeń.
Page 11 Symbol na tabliczce znamionowej símbolo Explicación Oznakowanie CE. Falownik spełnia wymagania obowiązujących wytycznych CE. Oznakowanie UKCA. Falownik spełnia wymagania norm UKCA Oznakowanie UKNI. Falownik spełnia wymagania norm UKNI. Prąd stały (DC) Prąd zmienny (AC) Punkt połączenia dla zabezpieczenia uziemienia. Uwaga RCM Certyﬁkat SAA.
Page 12 Packing List /Lista de embalagem/ Liste de colisage/Lista de embalaje /Lista di imballaggio/Paklijst Inverter Bracket Earth Screw *1 Expans on Screws AC Waterproof Cover *1 PV Terminal *6/8 pairs PV Pin Angle *6/8 pairs Wi-Fi Logger M4 Screws *4 OT Terminal Shorting Stub*1 Quick Installation Guide *1 (RNB 14-8) *5...
Page 13 Mounting Location/Local de montagem/Emplacement de montage /Ubicación de montaje/Posizione di montaggio/Montagelocatie +60 C < 95% < 4000m -30 C max 5 degrees ≥500mm ≥600mm ≥600mm ≥1000mm ≥650mm Mounting/Montagem/Montage/Montaje/Montaggio/Montage Marking hole positions Drill holes Install expansion bolts Hanging the inverter on the braket Notice: The inverter is heavy, please be careful.
Page 14 PE/PE/mise à la terre/Puesta a tierra/Aarding Suggested spec: 6AWG wire Crimping terminal Fasten on the inverter 3.5~4.0 N.m Insert and ﬁrmly press the terminal. Suggested cable diameter: Product AC 15~30kW-L 30~40kW 50/60kW Power 16~35mm 16~35mm 35~50mm 35mm 16mm 16mm pass through the waterproof terminal strip cables ﬁxed the waterproof cover 4.52~4.97 N.m...
Page 15 PV- crimping method Mc4 crimping tool Measure the PV+/PV- voltage(<1100v) < 1100 V 2.5~3.0 N.m Wi-Fi Tighten the Wi-Fi. LIVOLTEK PSD300 Wi-Fi Dongle. Insert the Wi-Fi into the inverter. Meter Connection(with CT) RS485A1 Meter RS485B1 RS485A1 RS485B1 The arrow on CT points to the inverter.
Page 16 Meter Connection(without CT) RS485A1 L1 L2 L3 RS485B1 3 6 9 12 1 4 7 10 Load Electric Grid Electric meter Methods to determine the correct direction of smart meter: ① Disconnected the inverter, activate household loads, and observe the current and power values readings on the meter.
Page 17: System Operation
When connecting the COM cable, please insert the cable terminal directly into the corresponding interface with force. To remove the COM cable, please use a tool to press the button on the right side of the jack, then the COM cable could be removed. Notice: Do not press the button with too much force to avoid damaging the port.
Page 18 QR code to go to login page select the appropriate server based on the installation site. download the "My LIVOLTEK" APP My Livoltek App Download Conﬁrm WiFi Dongle Server click ”Go Local Mode” click ”Wi-Fi Mode” click ”Setting”...
Page 19 Distribution Network go local mode select "PSD300-WiFi" connect to home WiFi connect to the WiFi Dongle connected to Network when prompted to switch networks, connect to your home Wi-Fi. click "Start Conﬁguration" User Register select the region and click "Register" enter account details account type...
Page 20 Create Site login to your account create a site enter site details site name address and time zone must match the installation location set the site according to site created successfully actual installation set the tariﬀ The old users can also add new sites here.
Page 21 Initial Parameter Setting Start 1. Power on inverter 5. Create a site(Plant) 2. Install My Livoltek App 6. Add the device(inverter)to the site Steps: 3. Wi-Fi dongle connection by App 7. Set initial parameters via the App's local mode. 4. App Account Restration 8.
Page 22 LIVOLTEK oﬃcial platform: WEB LINK1: https://www.livoltek-portal.com/ For Asia, Latin, American, Australia and others WEB LINK2: https://evs.livoltek-portal.com/ For Europe,Middle East Regions, Africa My Livoltek App Cloud Monitoring User Register Create Site click on the “site” on navigation click the “Add site”...
Page 23 users could click on the site name to view related data Add Device click “Add Device” input the information of device open the site, users could view the information of devices...
Page 25 More information in the QR code or at www.livoltek.com 1418-35 Moganshan Road, Hangzhou, 310011, China info@livoltek.com www.livoltek.com...
