Step1 Remove an appropriate length(about 7~8mm) of the insulation layer from the PV strings power cables.
Step2 Measure the voltage of every route strings using a multimeter. Ensure that the polarities of the DC input power cables are correct.
Step3 Insert the stripped PV cables into the corresponding interface in inverter and tighten the screws.
Suggested cable requirement for PV cables:
Model
3.5KVA
6.2KVA
Strip the PV cables:
Insert the PV cables into 'PV IN' port
Step1 Before making AC input/output connection, be sure to open DC protector or disconnector first.
Step2 Remove the cable jacket and strip the wire insulation by 10mm.
Step3 Insert AC input cables according to polarities indicated on terminal block and tighten the terminal screws.
Note: Be sure to connect PE protective conductor first.
Step4 Insert AC output cables according to polarities indicated on terminal block and tighten the terminal screws.
Step5 Make sure the wires are securely connected.
Suggested cable requirement for AC cables
Model
Cable Size
Torque
3.5KVA
10 AWG
1.4~1.6 Nm
6.2KVA
8 AWG
1.4~1.6 Nm
Insert the AC cables into 'AC IN' and 'AC OUT' port

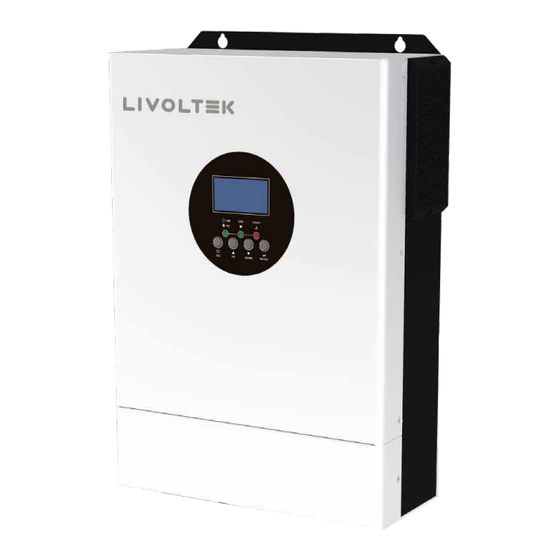

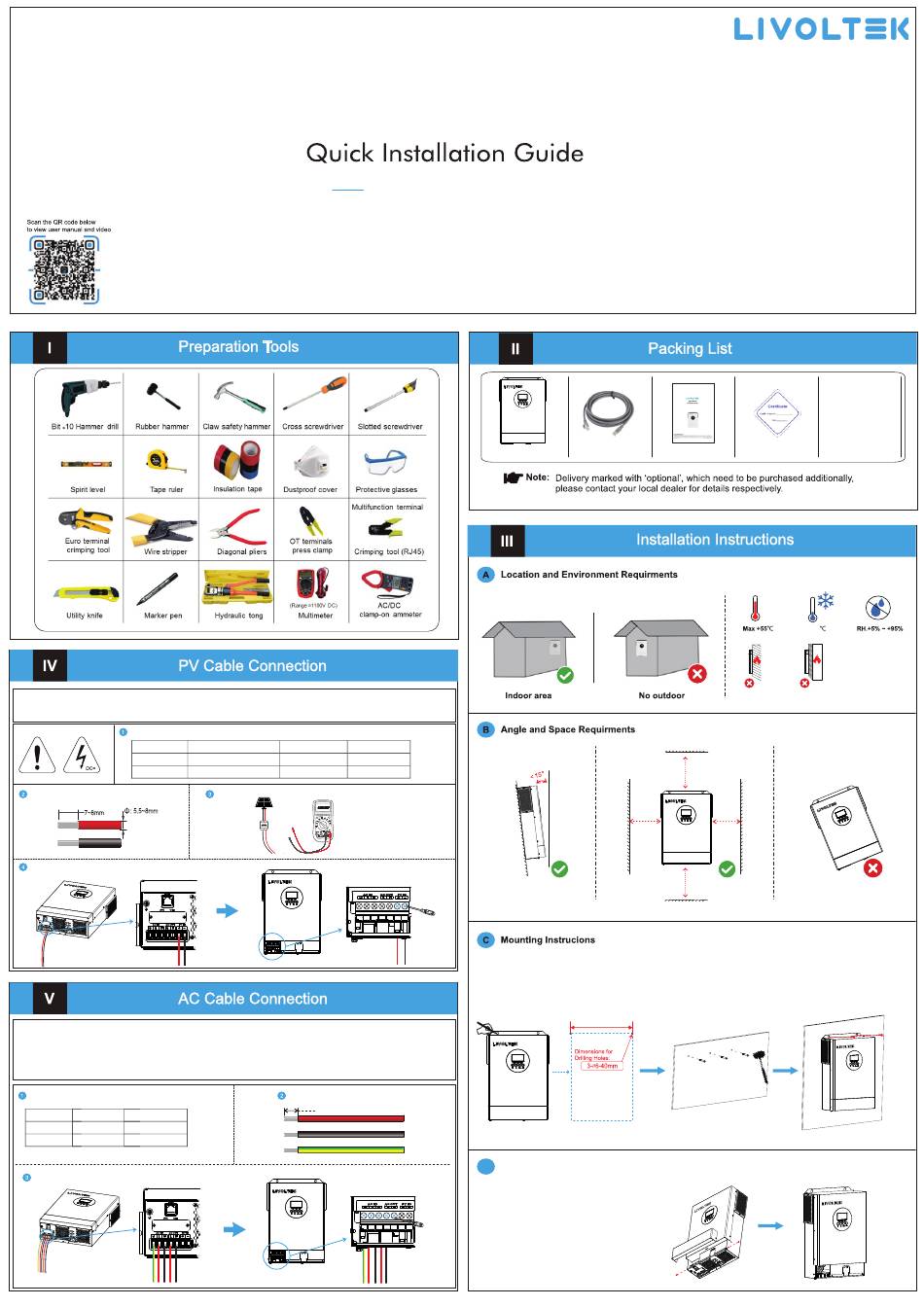

Off-Grid Inverter GF1-3K524S2/6K248S2
Typical Amperage
Cable Size
Torque
15A
12 AWG
1.4~1.6 Nm
27A
12 AWG
1.4~1.6 Nm
PV Panel
GF1-3K5: <240V
GF1-6K2: <480V
DC Breaker
Tighten the screws
Strip the AC cables:
10mm
Tighten the screws
Inverter *1
Communication Cable *1
Step1: Drill holes on the wall
Mark the positions of holes of 2 corners of the inverter's
Ÿ
bracket by marker pen.
Drill holes with driller and make sure the holes are deep
Ÿ
enough(at least 40mm) to support the inverter.
L
N
PE
D Before Cable Connection
In order to facilitate subsequent cable connection,
installers needs to remove the fixed screws on
both sides of the inverter to remove the panel.
User Manual *1
Certificate Card *1
500mm
200mm
200mm
500mm
Step2: Mounting the inverter
Insert the expansion tubes into the holes and lighten
Ÿ
them. Then install the inverter by screwing the screws.
Step3: Installation Self-check
Make sure the inveter is well fixed.
Ÿ
200mm
Wi-Fi Logger *1 (Optional)
Min 0
Advertisement
Related Manuals for LIVOLTEK GF1-3K524S2
Summary of Contents for LIVOLTEK GF1-3K524S2
- Page 1 Off-Grid Inverter GF1-3K524S2/6K248S2 Wi-Fi Logger *1 (Optional) Inverter *1 Communication Cable *1 User Manual *1 Certificate Card *1 Min 0 Step1 Remove an appropriate length(about 7~8mm) of the insulation layer from the PV strings power cables. Step2 Measure the voltage of every route strings using a multimeter. Ensure that the polarities of the DC input power cables are correct.
- Page 2 Step2 Please insert the RJ45 connector of the communication cable into the COM1 port of battery. Step3 Please insert the other end of the cable in the corresponding port of inverter. Note: If choosing lithium battery for the inverter, users are allowed to use the lithium battery only which LIVOLTEK have configured.
