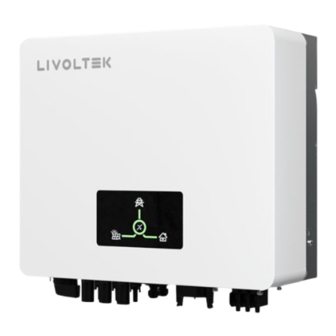

LIVOLTEK GT1 Series Quick Installation Manual

Quick Installation Guide
GT1 Series 1.6KW-10.0KW
Preparation Tool
I
Bit Φ10
Hammer drill Rubber hammer
Protective glasses Dustproof Cover
DC Voltage
Euro terminal
(Range ≥1100V DC)
crimping tool
Multimeter
Ground Connection
IV
-Step1:Prepare a 12AWG wire, strip it 5-7mm；
-Step2:Pass through the Heat-shrink tube;
-Step3:Pass through the Ground terminal;
Step2
Step1
Step4 Step5
tool
Tape ruler Spirit level\Marker
Wire crimpers Wire stripper
Multifunction terminal
Heat gun crimping tool (RJ45)
-Step4:Crimping terminal；
-Step5:On Heat-shrink tube,tighten it;
-Step6:Use screws to fasten on the inverter; (torque:1.5±0.2N·m)
Step3
Step6
Packing Lists
II
Inverter *1 Bracket* 1
PV terminal
RJ45 terminal*2
(positive*1/2/3, negative*1/2/3)
USER MANUAL
Quick Installation Guide
GT1 Series 1.6KW-6.0KW
GT1 1.6K-6K
Copy Declaration
The copyright of this munual belongs to Hangzhou Livoltek Power Co., td. Any corpo- ration or individual should not lagiarize, partially or fully copy, and no reproduction or
distribution of it in any from or by any means. All rights reserved.
Ver.00
User manual*1
Certificate card*1
Meter *1(optional)
Quick installation guide*1
Inverter Installation
III
Step1: Drill holes on the wall
• Locate the appropriate drilling holes and mark it with a marker pen.
• Drill holes with driller, make sure the holes are deep enough
(at least50mm) to support the inverter.
a
GT1 Series b
170mm 29mm
1.6~3.3kW
1.6~6kW 244mm 29mm
50mm
7~10kW 320mm
a
b
Step 3: Installation Self-check
Hang the inverter on the back panel and lock the side with screws.
V Grid Connection
- Step1:Cable diameter: GT1(1.6~3.3kW):12AWG;
GT1(3.6~6.0kW):10AWG;
①Remove the cable jacket by 50~60mm. - Step4:Tighten it.(Torque:1.5±0.3N·m)
- Step5:Insert the inverter, tighten it.(Torque:1.5±0.3N·m)
②Strip the wire insulation by 5~7 mm.
GT1(7.0~10.0kW):8AWG;
③Remove the cable jacket by 50~60mm.
④Strip the wire insulation by 7~10 mm.
- Step2:Pass through terminal;
Step1
GT1-1.6~6.0kW: GT1-7.0~10.0kW:
60~65mm 60~65mm
① ③
② ④
5~7mm 7~10mm
L L
N N
PE PE
Step2
GT1-7.0~10.0kW：
GT1-1.6~6.0kW: - Step3:Insert
- Step4:Insert
PV pin angle
Expans on Screws*3
(positive*1/2/3, negative*1/2/3)
M5 Screws*1 Grid terminal*1
Earth Screw*1
(only apply to GT1 1.6~6.0kW)
Grid Cover*1
O-shaped terminal*3
Wi-Fi *1
(only apply to GT1 7.0~10.0kW)
Step 2: Install the inverter to the wall
•
Insert the expansion tubes into the holes and hang the back plate,
•
Then tighten the screws to install it.
Depth:
50mm
GT1-1.6~6.0kW:
(Torque:0.8±0.1N·m)
- Step3:Press to nsert L/N/PE port and lock ;
Step3 Step4
Step5
(Torque:1.5±0.3N·m)
the terminal,and press tightly ;
the nverter and tighten the screw , then lock waterpoof cover.
(Torque:1.5±0.3N·m)
10mm
·
(torque:1.5Nm)
