6. Electrical Connection

6.1 Wiring Diagram

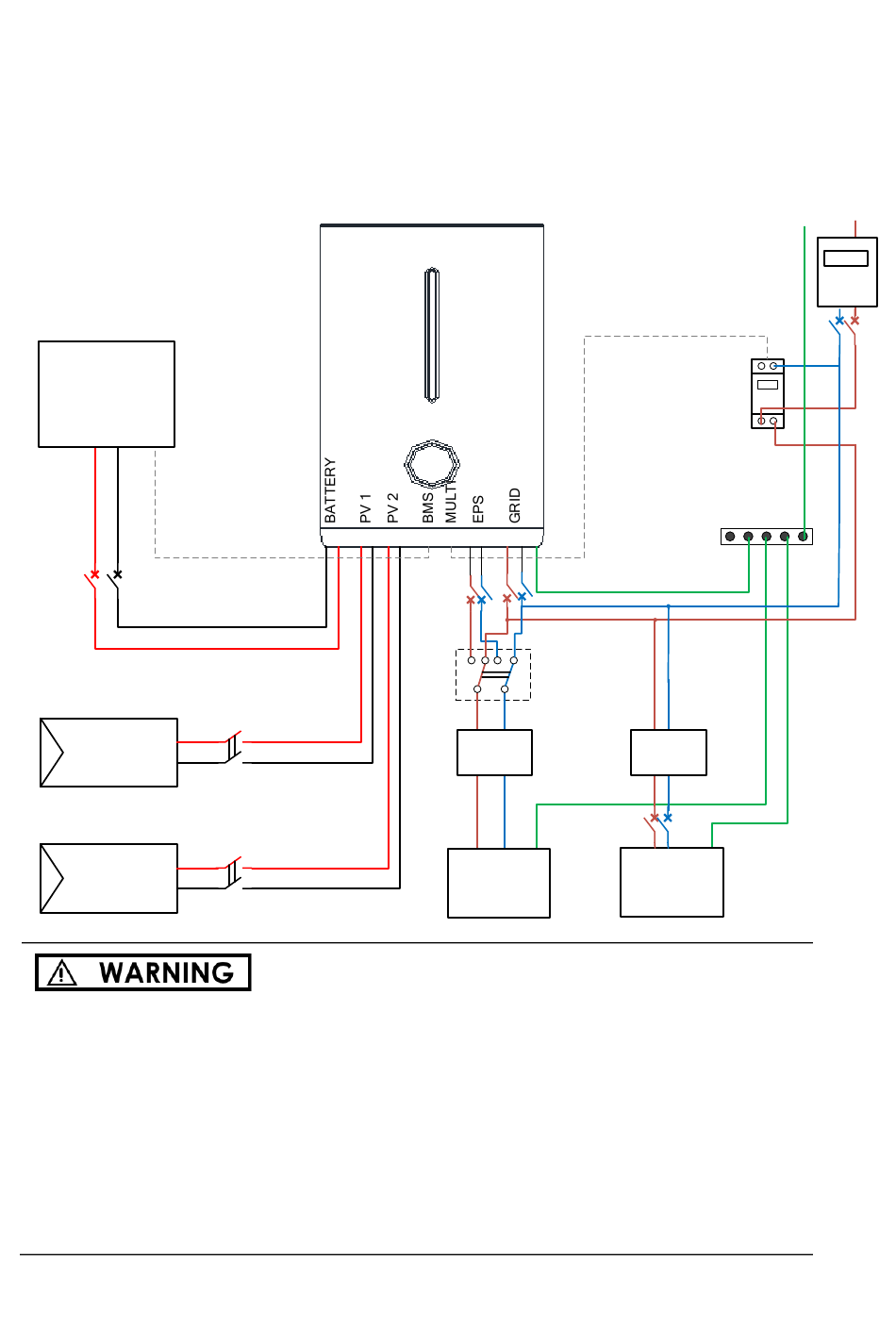

Wiring Diagram for European
Battery
PV1+
PV1-
PV2+
PV2-
In Australia and New Zealand, electrical installation and maintenance
shall be conducted by a licensed electrician and shall comply with
Australia/New Zealand National Wiring Rules.
Because the inverter does not maintain neutral integrity, an external
neutral connection must be used in Australia and New Zealand. 30mA
Type "A" RCD can be used where required by AS/NZ 3000, but cannot
be used if there are backup loads on the inverter as per AS4777.
Hybrid Inverter
RCD
EPS
Load
16
Smart
Meter
E-Bar
Transfer
Switch
RCD
General
Load
PE N L
Energy
Meter
kWh
