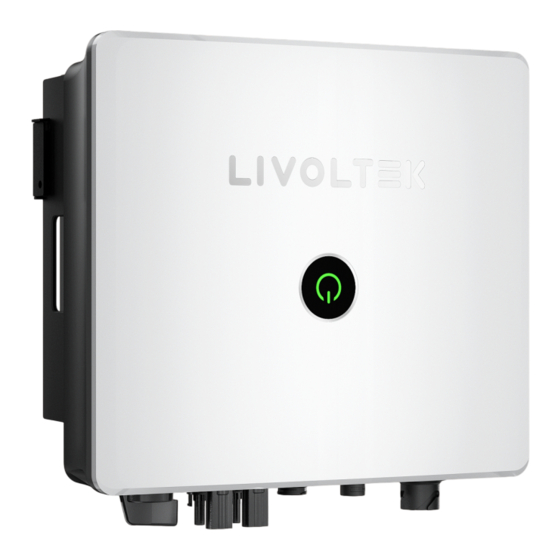

LIVOLTEK GT1-2.5KW Quick Installation Manual

Hide thumbs

Table Of Contents

Available languages

Quick Links

Download this manual

QUICK INSTALLATION GUIDE

GT1-2.5~10KW

The copyright of this munual belongs to Hangzhou Livoltek Power Co.,Ltd. All

rights reserved. Without the written permission of the company. Any unit or

individual shall not extract or reproduce part or all of the contents of this

documents, and shall not transmit it in any form.

Ver.00

Table of Contents

Need help?

Do you have a question about the GT1-2.5KW and is the answer not in the manual?

Questions and answers

Summary of Contents for LIVOLTEK GT1-2.5KW

Page 1 GT1-2.5~10KW Copyright Declaration The copyright of this munual belongs to Hangzhou Livoltek Power Co.,Ltd. All rights reserved. Without the written permission of the company. Any unit or individual shall not extract or reproduce part or all of the contents of this documents, and shall not transmit it in any form.
Page 2: Table Of Contents
Content Introduc on Introducción Introdução Introduc on Wstęp Packing List Installa on Tools Moun ng Loca on Moun ng Wi-Fi System Opera on Warranty Card...
Page 3: Introduc On
For the latest information, please visit "http://www.livoltek.com". Sa y LIVOLTEK GT1-2.5~6kW Series Inverter is ideal for home, business and remote locations. It generates renewable electricity from solar energy and provides Pure Sine Wave AC output for connected equipment.
Page 4 Symbol on the Type Label Symbol Explanation The inverter complies with the standards of the applicable CE guildlines. The inverter complies with the standards of the applicable UKCA guildlines. The inverter complies with the standards of the applicable UKNI guildlines. The inverter can become hot during operation;...
Page 5: Introducción
Seguridad Inversor de red LIVOLTEK Serie GT1, ideal para hogares, empresas y lugares remotos. El inversor genera electricidad renovable a partir de energía solar y proporciona una salida de CA de onda sinusoidal pura para los equipos conectados.
Page 6 Símbolo en la etiqueta de tipo símbolo Explicación Marca CE. El inversor cumple los requisitos de las líneas aplicables del gremio CE. Marca UKCA. El inversor cumple los requisitos de las líneas gremiales UKCA aplicables. Marca UKNI. El inversor cumple los requisitos de las líneas gremiales UKNI aplicables. Corriente continua (CC) Corriente alterna (CA) Punto de conexión para la protección de puesta a tierra.
Page 7: Introdução
Segurança O inversor on-grid da série LIVOLTEK GT1, ideal para residências, negócios e locais remotos. O inversor gera eletricidade renovável a partir de energia solar e fornece saída CA de onda senoidal pura para os equipamentos conectados.
Page 8 Símbolo na Etiqueta de Tipo símbolo Explicación Marca CE. O inversor está em conformidade com os requisitos das diretrizes CE aplicáveis. Marca UKCA. O inversor está em conformidade com os requisitos das diretrizes UKCA aplicáveis. Marca UKNI. O inversor está em conformidade com os requisitos das diretrizes UKNI aplicáveis.
Page 9: Introduc On
Veuillez consulter www.livoltek.com pour plus d'informations. Sécurité LIVOLTEK série GT1 onduleur sur réseau est idéaux pour les maisons, les entreprises et les régions éloignées. L'onduleur génère de l'électricité renouvelable à partir de l'énergie solaire et fournit une sortie CA à onde sinusoïdale pure pour les équipements connectés.
Page 10 Symbole sur l'étiquette de type símbolo Explicación Marquage CE. Les onduleurs sont conformes aux exigences des directives CE applicables. Marquage UKCA. L'onduleur est conforme aux exigences des lignes de guilde UKCA applicables. Marquage UKNI. L'onduleur est conforme aux exigences des lignes de guilde UKNI applicables. Courant Continu Courant alternatif Point de connexion pour la protection de mise à...
Page 11: Wstęp
Prosimy o sprawdzenie strony www.livoltek.com w celu uzyskania dodatkowych informacji. Bezpieczeństwo Falownik sieciowy LIVOLTEK serii GT1, idealne rozwiązanie dla domu, ﬁrmy i odległych lokalizacji. Falownik generuje odnawialną energię elektryczną z energii słonecznej i zapewnia wyjście prądu AC w postaci czystej fali sinusoidalnej dla podłączonych urządzeń.
Page 12 Symbol na tabliczce znamionowej símbolo Explicación Oznakowanie CE. Falownik spełnia wymagania obowiązujących wytycznych CE. Oznakowanie UKCA. Falownik spełnia wymagania norm UKCA Oznakowanie UKNI. Falownik spełnia wymagania norm UKNI. Prąd stały (DC) Prąd zmienny (AC) Punkt połączenia dla zabezpieczenia uziemienia. Uwaga RCM Certyﬁkat SAA.
Page 13: Packing List
Packing List/Liste de colisage/Lista de embalaje /Lista de embalagem /Lista rzeczy do spakowania/ M5 Screws *3 Expans on Screws Inverter Bracket Earth Screw *1 PV Terminal *2 pairs PV Pin Angle *2 pairs Wi-Fi Logger Conmmunıcation Terminal*1 Grid Terminal *1 Waterproof Cover *1 OT Terminal *3 Quick Installation Guide *1...
Page 14: Moun Ng Loca On
Mounting Location/Emplacement de montage /Ubicación de montaje/ Local de montagem/Miejsce montażu +60 C < 95% < 4000m -30 C max 15 degrees ≥500mm ≥300mm ≥300mm ≥600mm Mounting/Montage/Montaje/Montagem/Montowanie Depth :50mm 1.2 N.m...
Page 15 10AWG wire Crimping terminal Fasten on the inverter 1.5 0.2 N.m ± tool Perpare cables Installation steps for AC port of GT1-2.5~6kW. 60~65mm (step2-step6) 8AWG wire 5~7mm Remove the protective cover outside the terminal strip cables Pass the cables through Press to insert L/N/PE port and lock Tighten the terminal terminal...
Page 16: Com
prepare cable:10AWG wire Insert the PV+/PV- pin PV+ crimping method Meter Connection(with CT) ④ ⑧ ⑤ ⑦ ⑥ ⑧CT- ⑦CT+ Surge arrestor Fuse AC breaker Load AC distribution box Single phase meter Electric Grid Electric meter Meter Connection(without CT) ④ ⑧...
Page 17: Wi-Fi
Connection in inverter Strip the wire insulation Pass the cable through terminal and waterproof plug Remove the waterproof plug in the terminal. Plug the wire into the correct port, then tighten the screws ④ ⑤ ⑥ P+ P-/A B RS485A RS485B RS485A RS485B...
Page 18: App
Conﬁrm Inverter Server Address scan the QR code to go to login page select the appropriate server based on the installation site. download the LIVOLTEK APP My Livoltek App Download Conﬁrm WiFi Dongle Server click ”Go Local Mode” click ”Wi-Fi Mode” click ”Setting”...
Page 19 Distribution Network go local mode select "PSD300-WiFi" connect to home WiFi connect to the WiFi Dongle when prompted to switch networks, connect to your home Wi-Fi. connected to Network click "Start Conﬁguration" User Register select the region and click "Register" enter account details account type...
Page 20 Create Site login to your account create a site enter site details site name address and time zone must match the installation location set the site according to set the tariﬀ site created successfully actual installation The old users can also add new sites here.
Page 21 Initial Parameter Setting 1. Power on inverter 5. Create a site(Plant) 2. Install My Livoltek App 6. Add the device(inverter)to the site Steps: 3. Wi-Fi dongle connection by APP. 7. Set initial parameters via the App's local mode. (Include conﬁrm server and distribute 8.
Page 22: Web
LIVOLTEK oﬃcial platform: WEB LINK1: https://www.livoltek-portal.com/ For Asia, Latin, American, Australia and others WEB LINK2: https://evs.livoltek-portal.com/ For Europe,Middle East Regions, Africa My Livoltek App Cloud Monitoring User Register Create Site click on the “site” on navigation click the “Add site”...
Page 23 users could click on the site name to view related data Add Device click “Add Device” input the information of device open the site, users could view the information of devices...
Page 25 More information in the QR code or at www.livoltek.com 1418-35 Moganshan Road, Hangzhou, 310011, China info@livoltek.com www.livoltek.com...
