Notes:
Prepare battery cables with a conductor cross section of 25 mm² because the maximum
battery current is >100A. Use the right BAT plugs within the scope of delivery.
If the connectors of the battery power cables to battery side is not assembled, you need to
•
contact with your battery vendor for detailed information.
For LIVOLTEK Li-Ion battery, you should cut off one pair connectors of the battery power
•
cables, and change them to water-proof BAT plugs in the inverter package.
Wiring Connection Procedure：

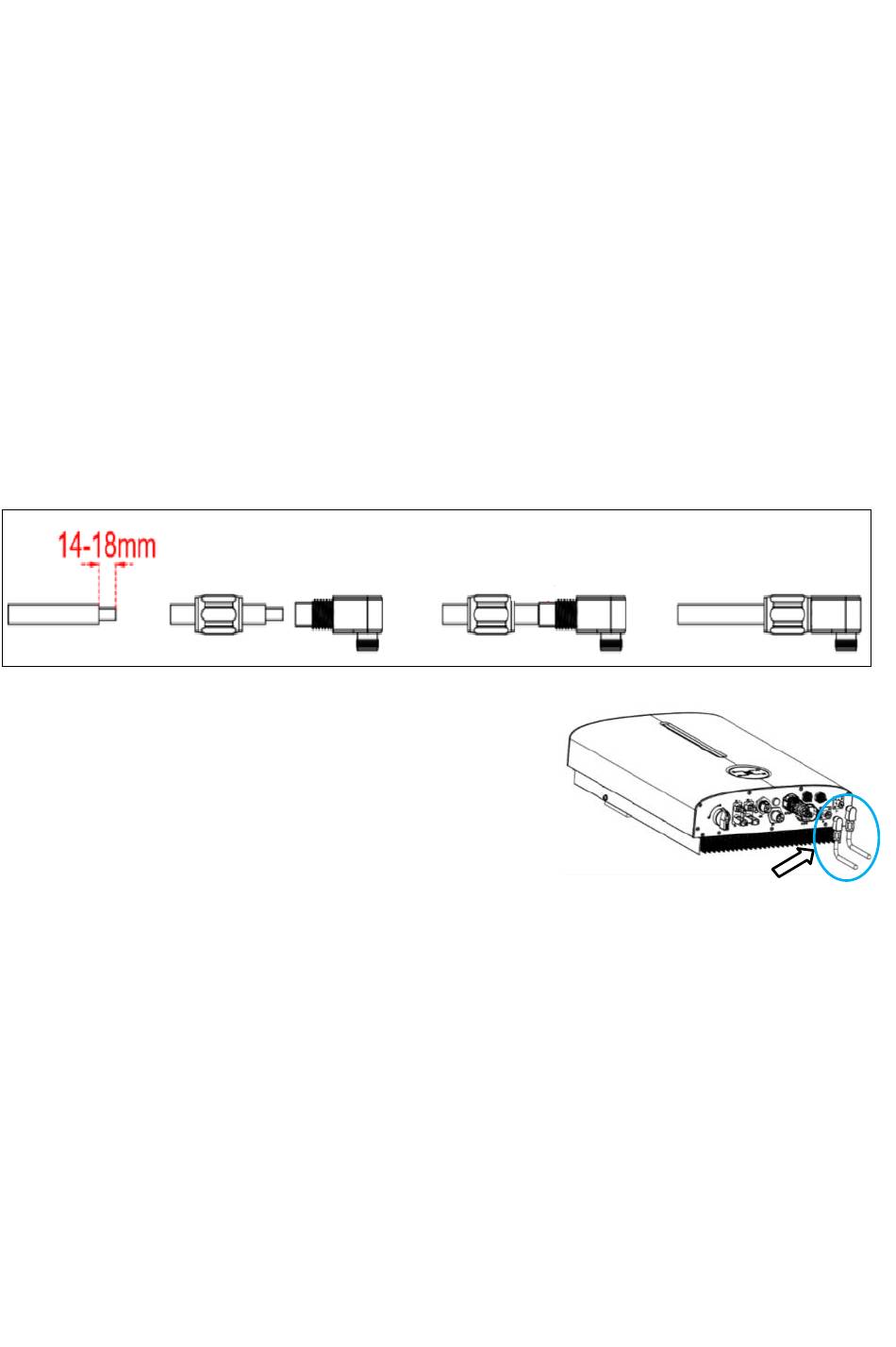

Step 1: Assemble the battery cable Connectors
Remove an appropriate length of the insulation layer from the positive and negative power
•
cables using a wire stripper.
Insert the exposed areas of the positive and negative power cables into the BAT plugs
•
respectively and crimp them using a crimping too.
Ensure the correct polarity of batteries before connecting to the inverter.
•
Step2: Connect the Battery cables to the inverter
• Insert the battery plugs into the corresponding BAT+
and BAT- terminals at the bottom of the inverter.
• Ensure that the connectors are securely in place.
Step 3: Connect the Battery cables to the Battery
• Connect the Battery cable to the Battery and make sure the positive and negative poles
are correct.
• Refer to the instructions supplied by the battery manufacturer for the connections on the
battery side.
