6.9.2 Smart Meter Connection (Optional)
When customer needs to use meter to monitor the energy flow, the meter terminal connection
steps are as follows:
Make sure AC cable is totally isolated from AC power before connecting Smart Meter.
One Smart Meter can only be used for one hybrid inverter.
Normally the smart meter should be placed in or near the grid distribution box right after the
billing meter.
Please use the smart meter cable in the accessory box for communication.

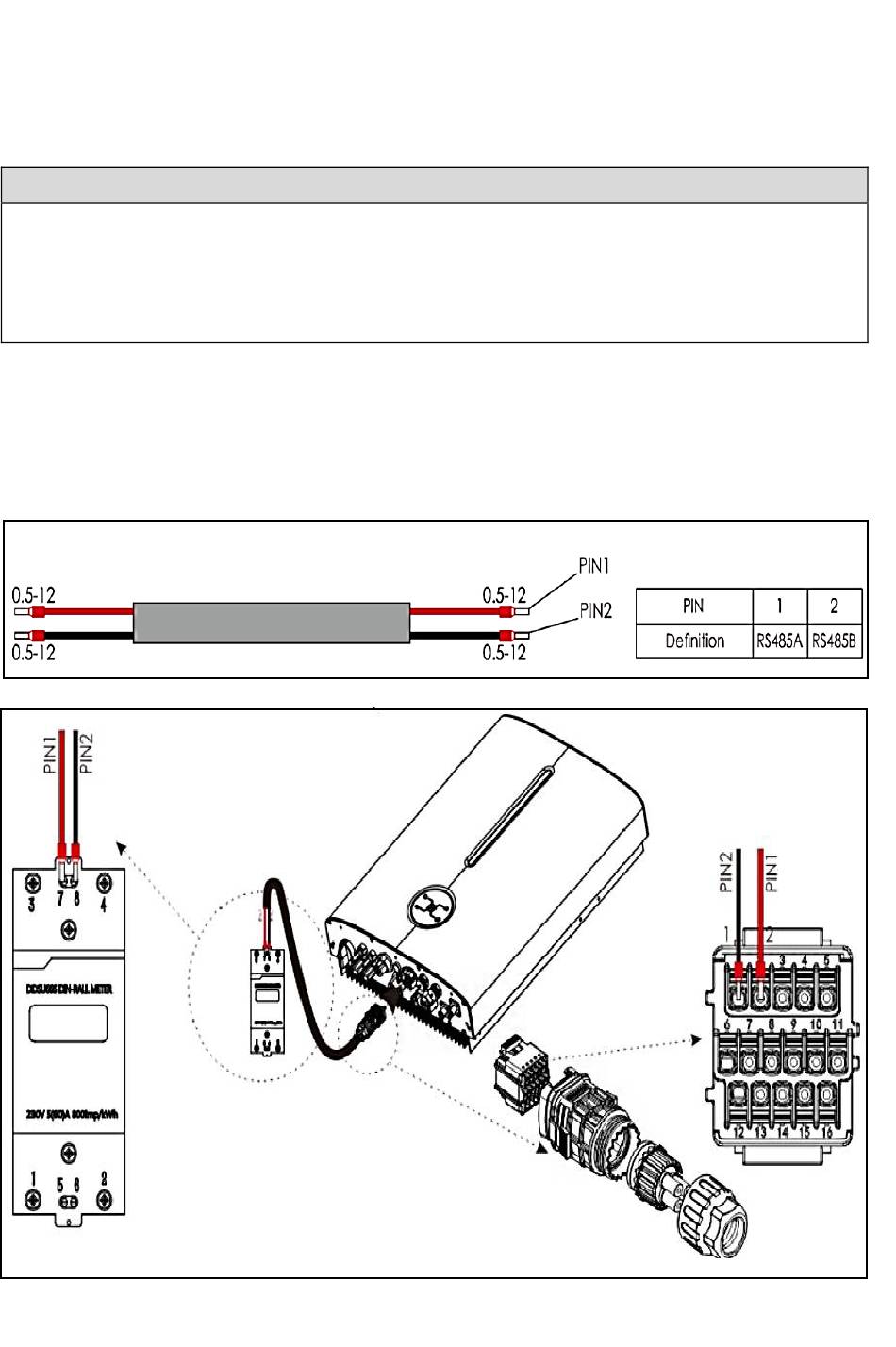

Wiring Connection Procedure：
Step 1: Connect the signal cable to the signal cable connector.
Step 2: Connect the signal cable connector to the Multi COM port.
Step 3: Secure the signal cable connector
Meter Connector Pin Definition
NOTICE
47
