5.1.4 Tools Preparation

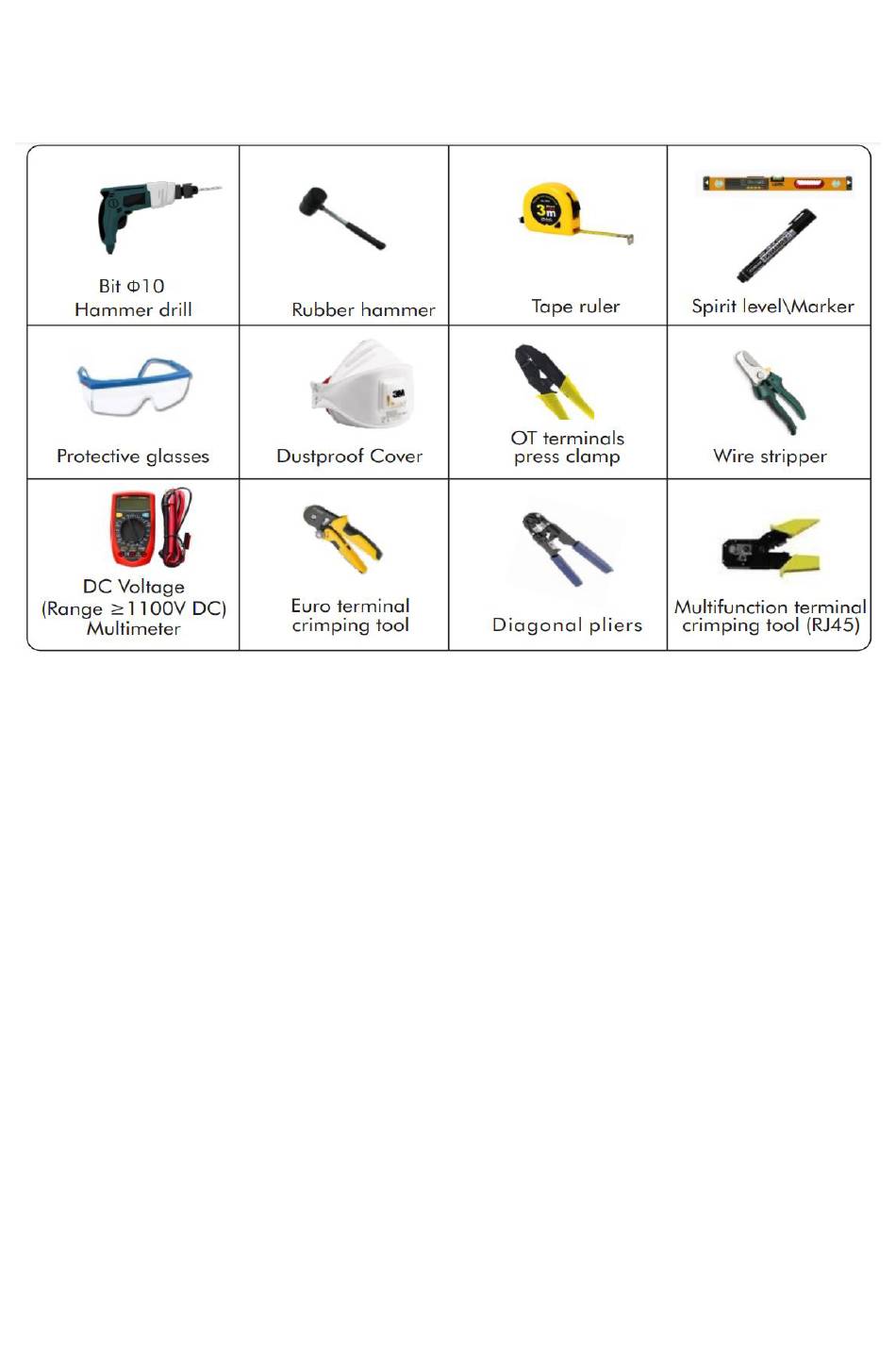

Installation tools recommended but not limited to the following ones. If necessary, use other
auxiliary tools on site.

5.2 Mounting Instruction

Two installation methods:
• There are two ways for hybrid inverter to be installed with the battery. One called "Split
Application" and the other called "All-in-one Application".
• For Split Application, the inverter can be connected with low voltage Li-Ion battery or Lead-
acid battery.
• For All-in-one Application, the inverter must be connected with the Li-Ion battery of LIVOLTEK
brand. And there are three independent packages (inverter, battery and middle cover kit) for the
installation. Please check and contact your distributor immediately in case of any damaged or
missing components.
5.2.1 Mounting the Inverter (Split Application)
Step1: Drill holes on the wall
• Take out the wall-mounting Bracket from the inverter package.
• Locate the appropriate drilling holes and mark it with a marker pen (Using a digital level to
make sure the bracket is at a horizontal position before installation.)
• Drill holes with driller, make sure the holes are deep enough (at least 70mm) to support the
inverter.
