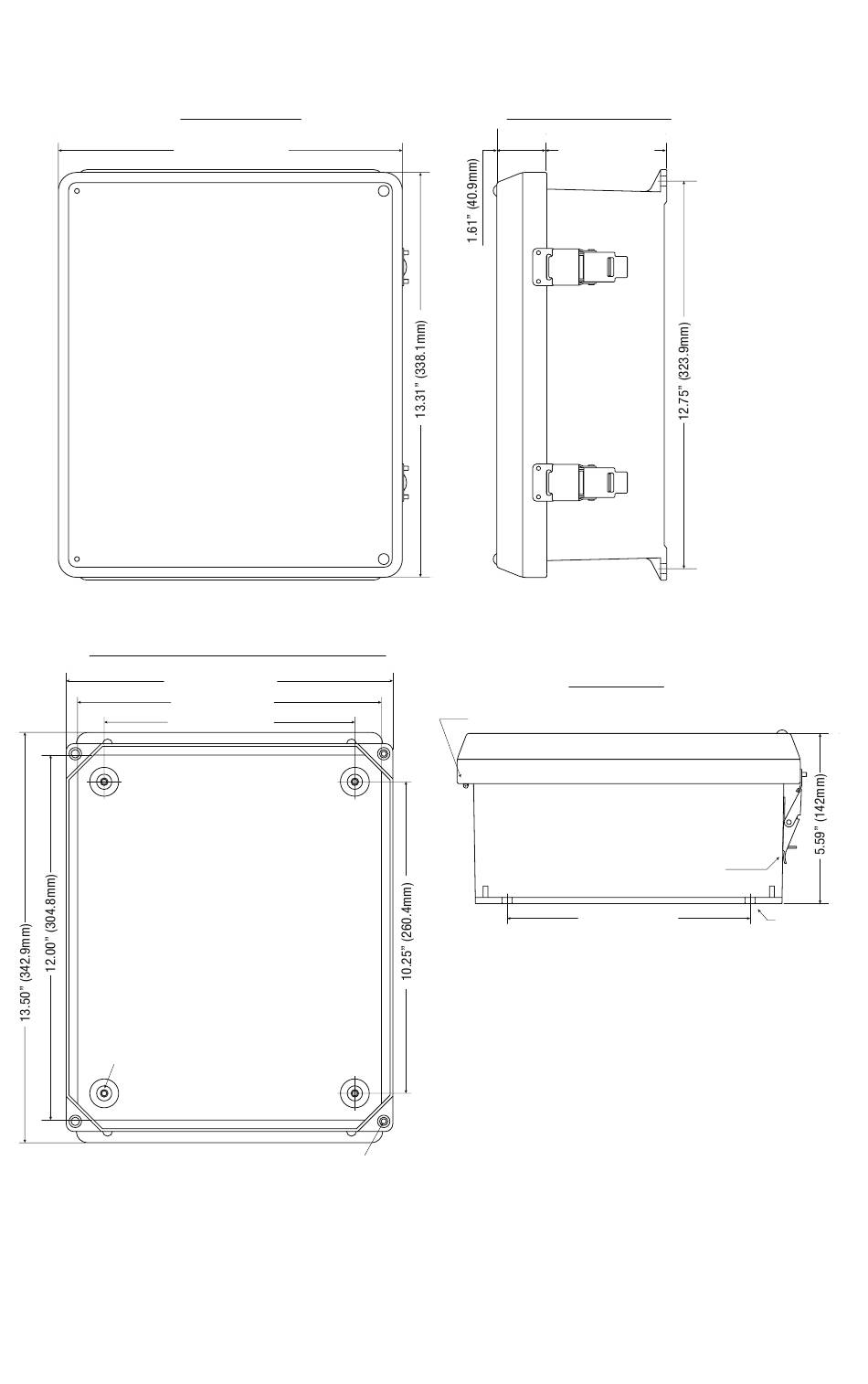

Mechanical Drawing and Dimensions (H x W x D approx.):
FRONT VIEW COVER REMOVED
10-32 X 0.375" (9.5mm)
BRASS INSERT (X4)
- 14 -
NetWaySP8WP2
13.31" x 11.31" x 5.59" (338.1mm x 287.3mm x 142mm)
FRONT VIEW
11.31" (287.3mm)
10.75" (273.1mm)
10.00" (254mm)
8.25" (209.6mm)
10-32 X 0.25" (6.4mm)
BRASS INSERT (X2)
RIGHT SIDE VIEW
3.96" (100.6mm)
END VIEW
STAINLESS STEEL PIANO HINGE
PADLOCK LATCH ATTACHED
WITH RIVETS (Ø 0.375" (9.5mm) PADLOCK EYE)
8.00" (203.2mm)
Ø 0.32 (8.1mm)
MOUNTING HOLE
TYP. 4 PLACES
NetWaySP82 Series Installation Guide
