Fiber Solution
NetWaySP41BT Series
4-port Hardened 802.3bt
4PPoE Switches (Layer 2)
Models Include:

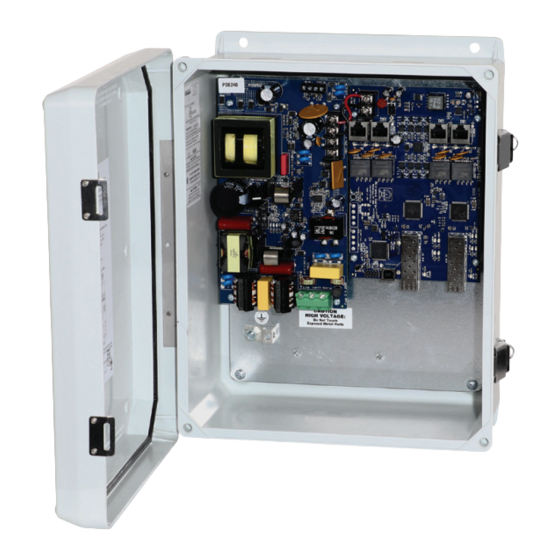

NetWaySP41BTWP
- 4-port Hardened 802.3bt 4PPoE Switch
and Power Supply/Charger
- NEMA4/4X, IP66 rated Outdoor enclosure.
NetWaySP41BTWPX
- 4-port Hardened 802.3bt 4PPoE Switch
and Power Supply/Charger
- NEMA4/4X, IP66 rated Outdoor enclosure.
- Accommodates up to four (4)
12VDC/4AH batteries.
NetWaySP41BTWPN
- 4-port Hardened 802.3bt 4PPoE Switch
(uses external power supply).
- NEMA4/4X, IP66 rated Outdoor enclosure.
Installation Guide
DOC#: NetWaySP41BT Rev. 031723
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
NetWaySP41BTX
- 4-port Hardened 802.3bt 4PPoE Switch and
Power Supply/Charger
- NEMA1 rated Indoor enclosure.
NetWaySP41BTPL
- 4-port Hardened 802.3bt 4PPoE Switch
and Power Supply/Charger
- Backplane version.
NetWaySP41BTB
- 4-port Hardened 802.3bt 4PPoE Switch
- Board Only.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix NetWaySP41BT Series
Summary of Contents for Altronix NetWaySP41BT Series
- Page 1 Fiber Solution NetWaySP41BT Series 4-port Hardened 802.3bt 4PPoE Switches (Layer 2) Models Include: NetWaySP41BTWP NetWaySP41BTX - 4-port Hardened 802.3bt 4PPoE Switch - 4-port Hardened 802.3bt 4PPoE Switch and and Power Supply/Charger Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure. - NEMA1 rated Indoor enclosure.
- Page 2 Overview: Altronix NetWaySP41BT Series Hardened 802.3bt 4PPoE Layer 2 Switches are equipped with two (2) 1Gb SFP ports and four (4) 802.3bt compliant Ethernet ports rated at 90W each, limited to 240W or 320W total power, depending on a model.
- Page 3 Filtered and electronically regulated output. Short circuit and thermal overload protection. Recommended Altronix SFP Modules: Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates.
-
Page 4: Installation Instructions
Minimum 0.25” spacing must be provided. CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment. There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel. - 4 - NetWaySP41BT Series Installation Guide... -
Page 5: Technical Specifications
9.5 lb. (4.3 kg) 10.9 lb. (4.9 kg) (approx.) NetWaySP4X 6.85 lb. (3.11 kg) 7.75 lb. (3.51 kg) NetWaySP4PL 2.6 lb. (1.18 kg) 4.0 lb. (1.81kg) NetWaySP41BTB 0.4 lb. (0.18 kg) 0.75 lb. (0.34 kg) NetWaySP41BT Series Installation Guide - 5 -... - Page 6 Estimated distances based on starting voltage of 56VDC and accounts for a 10 volt drop. All distances are per IEEE 802.3at standard for device power requirements of minimum 44VDC and leave an approximate 2 volts for safety and flexibility. - 6 - NetWaySP41BT Series Installation Guide...
- Page 7 Typical Application with Factory Installed Power Supply IEEE 802.3bt IEEE 802.3bt PoE/PoE+/Hi-PoE PoE/PoE+/Hi-PoE Device Device To 24V Stand-by PoE/PoE+, Batteries Hi-PoE or BT Device Fiber to the next 115/230VAC Netway Spectrum Input Hardened PoE Switch Fiber to Switch NetWaySP41BT Series Installation Guide - 7 -...
-
Page 8: Wall Mount Installation
This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures. PMK1 and PMK2 can be mounted on 2”... - Page 9 (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0” (279.4mm) 0.9375” (23.8mm) 1.40” 1.40” (35.6mm) (35.6mm) 0.9375” (23.8mm) 3.25” (82.6mm) 3.25” (82.6mm) 1.0” (25.4mm) 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) NetWaySP41BT Series Installation Guide - 9 -...
- Page 10 NetWaySP41BTPL Mechanical Drawing and Dimensions (H x W x D approx.): 10.75” x 8.875” x 2.375” (273.1mm x 225.4mm x 60.3mm) 8.875” (225.4mm) 8.25” (209.5mm) 0.25” (6.4mm) - 10 - NetWaySP41BT Series Installation Guide...
- Page 11 PADLOCK LATCH ATTACHED WITH RIVETS (Ø 0.375” (9.5mm) PADLOCK EYE) 8.00” (203.2mm) Ø 0.32 (8.1mm) MOUNTING HOLE TYP. 4 PLACES 10-32 X 0.375” (9.5mm) BRASS INSERT (X4) 10-32 X 0.25” (6.4mm) BRASS INSERT (X2) NetWaySP41BT Series Installation Guide - 11 -...
- Page 12 WALL MOUNTING HOLE X 4 10-32 X 0.250 BRASS INSERT 4 PLCS. 12.00” (304.8mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
