Starting PCS
Start PCS as follows:
1. Click Start > Programs > Extron > Extron Product Configuration Software> Extron Product
Configuration Software. The Product Configuration Software opens with the Device Discovery window
(see figure 15).

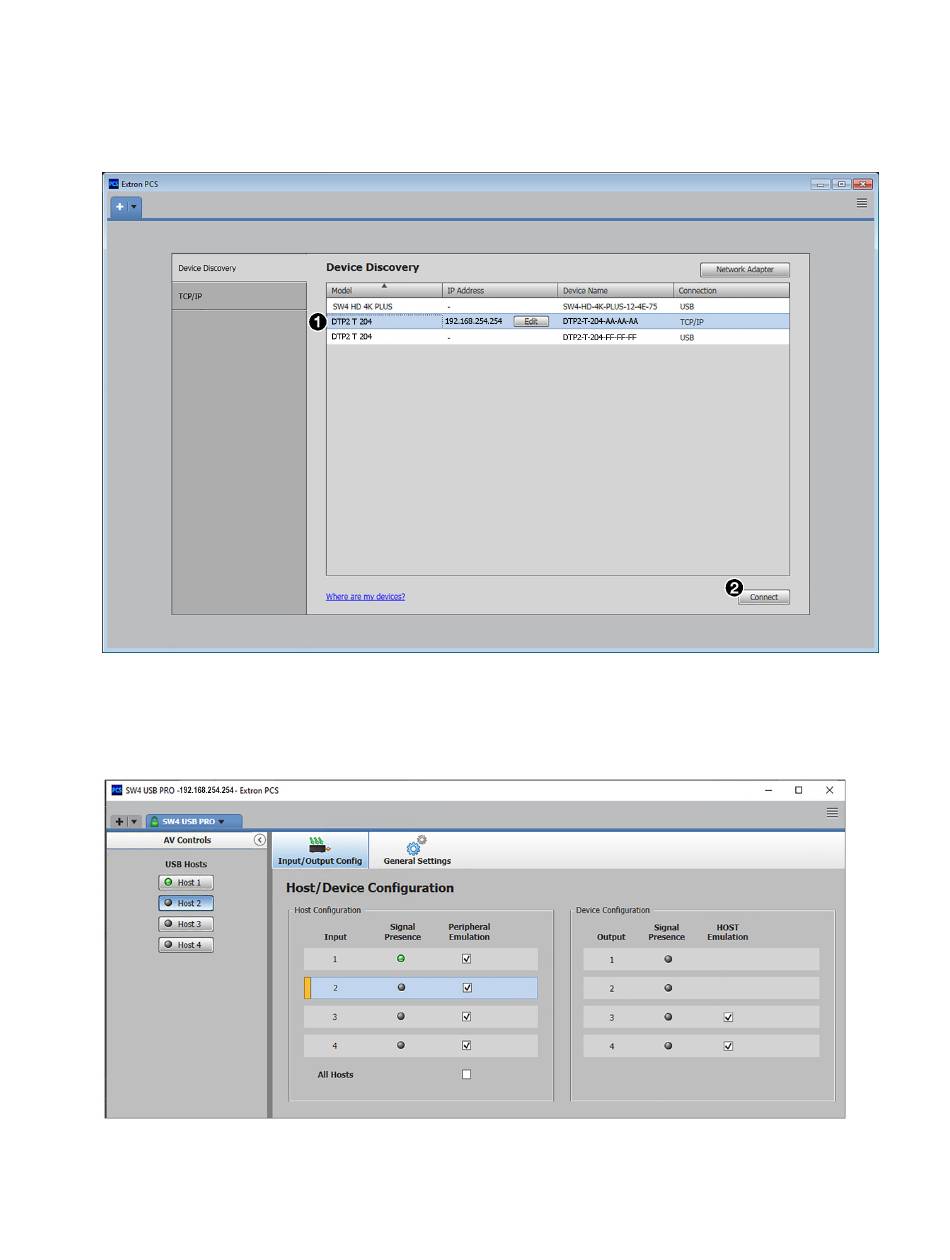

Figure 15. Device Discovery Window
2. Select a device (one of the SW USB Pro switchers) on the network or the USB port (see figure 15,
3. Click Connect (
).
2
The Product Configuration Software opens to the Host/Device Configuration window (see figure 16).
Figure 16. PCS Host/Device Configuration Window
SW USB Pro Series • Remote Configuration and Control
)
