Connecting Multiple SW USB Pro Switchers in a System

The USB specification states that a maximum of five hubs (or five SW USB PRO switchers) can be connected in
a series. Figure 9 shows a single host with a maximum of five SW USB Pro switchers cascaded in a series.
NOTE: Do not exceed five cascaded hubs and a total of 127 peripheral devices in the entire system.
Tier 4
Printer
Tier 5
Camera

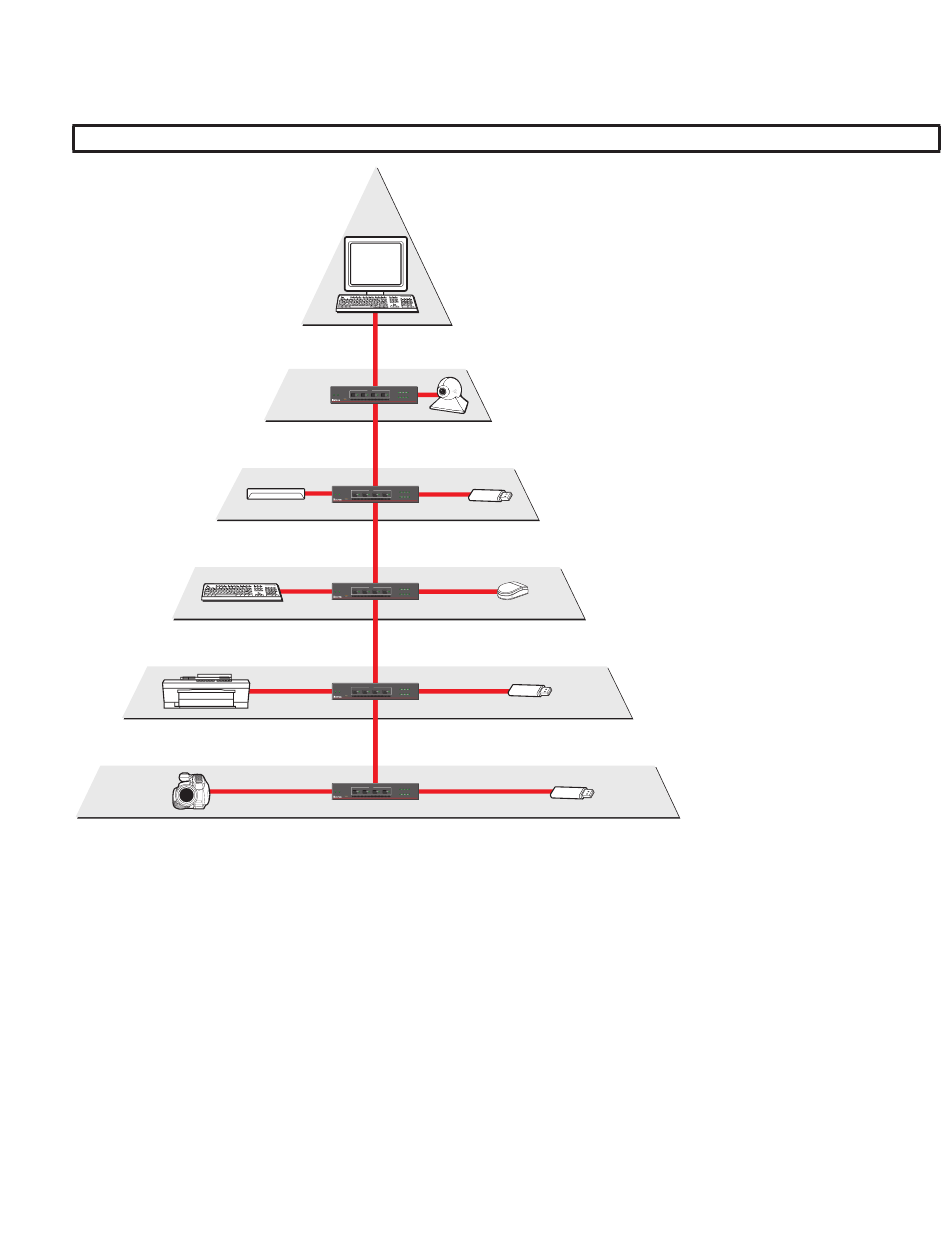

Figure 9. Example of a Host with Five SW USB Pro Switchers Cascaded in a Series
