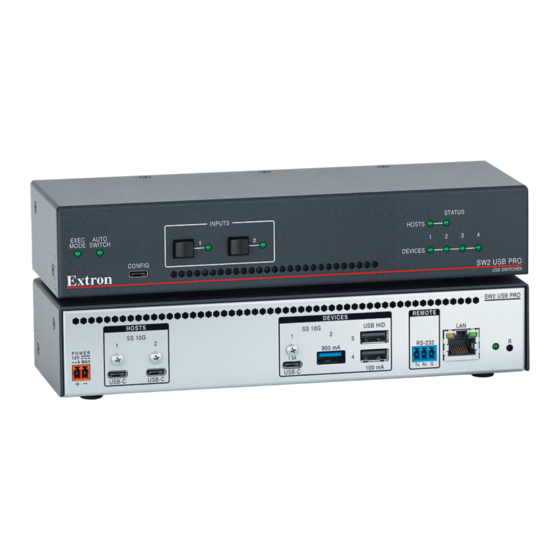

SW USB Pro Series • Setup Guide
The SW USB Pro Series switchers make it possible for two or four host computers to share and switch among up to four
peripheral USB devices, such as USB storage devices, USB cameras, keyboards, and mice. The switchers support USB 3.2,
2.0, and 1.x host and peripheral devices, with data rates up to 10 Gbps. They are compatible with all major computer operating
systems.
The SW USB Pro Series provide control via front panel buttons, USB, Extron Product Control Software (PCS), Ethernet, RS‑232,
and auto‑switching for integration with any control system. Front panel LED indicators provide immediate visual confirmation of
signal presence for each input and output.
Extron
HDMI
Cable Cubby 100
Cable Access Enclosure
USB
Laptop
Extron
SW2 USB Pro
POWER
SuperSpeed
12V
--A MAX
USB Switcher

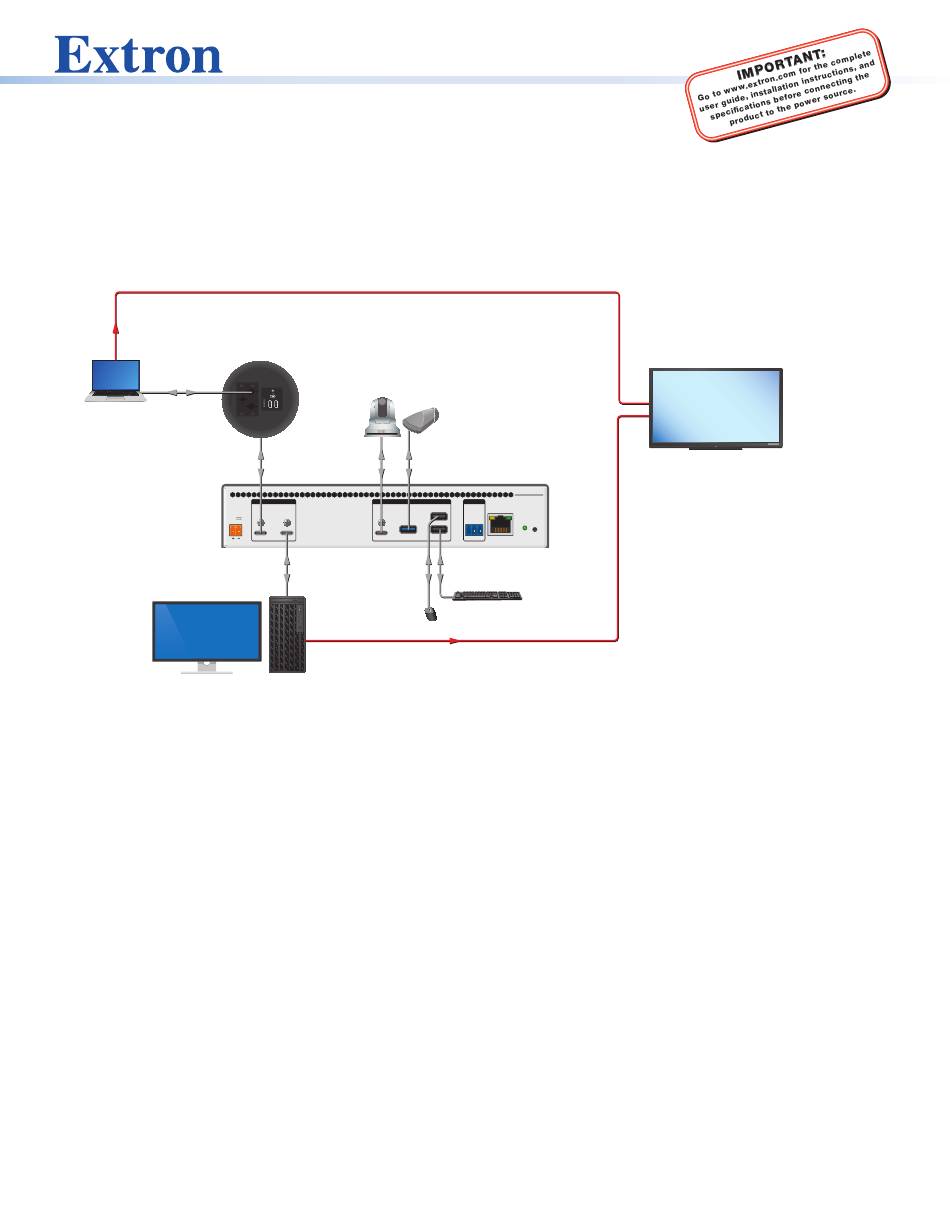

Figure 1.
Application Diagram
This guide provides instructions for an experienced installer to set up and operate these switchers. For full installation,
configuration, and operation details, see the SW USB Pro Series User Guide, available at www.extron.com.
USB
Camera
USB Mic
POWER
STANDBY
USB
USB
USB
HOSTS
DEVICES
SS 10G
SS 10G
USB HID
1
2
1
2
3
900 mA
1.5A
4
USB-C
USB-C
USB-C
100 mA
USB
PC
SW2 USB PRO
REMOTE
LAN
RS-232
R
Tx Rx G
USB
Keyboard
Mouse
HDMI
MODEL 80
FLAT PANEL
Display
1
Advertisement
Table of Contents
Related Manuals for Extron electronics SW USB Pro Series
Summary of Contents for Extron electronics SW USB Pro Series
- Page 1 SW USB Pro Series • Setup Guide The SW USB Pro Series switchers make it possible for two or four host computers to share and switch among up to four peripheral USB devices, such as USB storage devices, USB cameras, keyboards, and mice. The switchers support USB 3.2, 2.0, and 1.x host and peripheral devices, with data rates up to 10 Gbps.
- Page 2 ) and a host computer or control system, or connect the SW USB Pro Ethernet port ( ) to the network via a standard Ethernet cable (see the SW USB Pro Series User Guide, available at www.extron.com). Default LAN settings: Rear panel LAN IP address —...
- Page 3 The input buttons are also used to initiate a system reset and to enable and disable front panel lockout (see the SW USB Pro Series User Guide for more information). Host status LEDs — Light if a host is connected to the corresponding host port, whether or not the input is currently selected.
- Page 4 SW USB Pro Series • Setup Guide (Continued) For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website. www.extron.com © 2021 Extron — All rights reserved.
