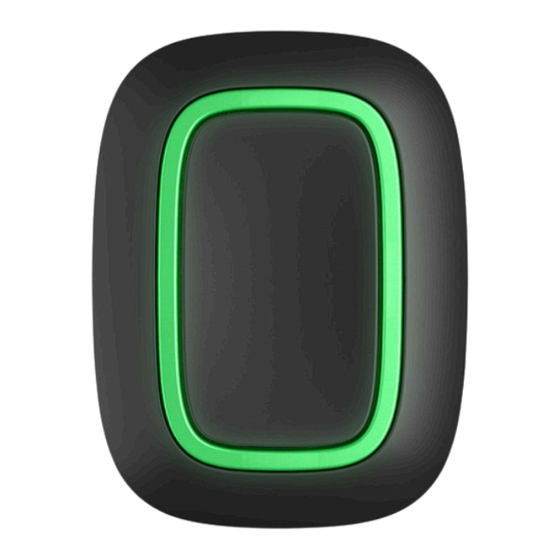

Button S Jeweller user manual
Button S Jeweller is a wireless panic button with accidental press protection.
The device has additional modes: it can control automation devices and mute
fire alarms.
Button S operates within an Ajax system, connected to the
Jeweller
protocol. The communication range in an open space is up to 1,300
meters.
This product line is developed for projects. Only accredited Ajax Systems partners can
sell, install, and administer Superior products.
Superior, Fibra, and Baseline product lines are mutually compatible. This opens up
numerous possibilities for building systems of any configuration.
Functional elements
Updated June 26, 2024
hub
via the protected

Advertisement

loading
Need help?

Need help?

Do you have a question about the Button S Jeweller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX Button S Jeweller

Summary of Contents for AJAX Button S Jeweller

  • Page 1 Button S Jeweller user manual Updated June 26, 2024 Button S Jeweller is a wireless panic button with accidental press protection. The device has additional modes: it can control automation devices and mute fire alarms. Button S operates within an Ajax system, connected to the...
  • Page 2 Radio signal range extenders Hub Plus Hub 2 (2G) ReX 2 Hub 2 (4G) Hub 2 Plus Hub Hybrid (2G) Hub Hybrid (4G) To add the hub to the system, create a virtual space in the Ajax app of the corresponding version.

  • Page 3: Operating Principle

    00:00 00:12 Button S Jeweller is a wireless panic button that operates in one of three modes: Panic, Control, or Mute Fire Alarm. When the button is pressed, it transmits an alarm to users and to the security company’s CMS (central monitoring station).

  • Page 4: Use Cases

    or water leak. You can select the type of alarm in the button settings. The text of alarm notifications depends on the selected type and the event codes transmitted to the CMS. When connecting Button S via the radio signal range extender , Button S does not automatically switch between the radio networks of the radio signal extender and the hub.

  • Page 5: Control Mode

    Socket To bind an automation device action to a long or short press of Button S: 1. Open the Ajax app and go to the Devices tab. 2. Select Button S in the list of devices and go to settings by clicking the gear icon 3.

  • Page 6: Adding To The System

    Pressing the button again mutes the remaining detectors. The interconnected alarms delay time continues — the siren of the triggered Ajax fire detector is muted by pressing. Learn more about Interconnected Fire Detectors Alarm Adding to the system...
  • Page 7 The hub and the device operating at different radio frequencies are incompatible. The radio-frequency range of the device may vary by region. We recommend purchasing and using Ajax devices in the same region. You can check the range of operating radio frequencies with the...
  • Page 8 ), you will be notified when you try to add a new one. The button connected to the hub will appear in the list of hub devices in the Ajax app. Button S works with one hub. When connected to a new hub, the button stops sending events to the old one.
  • Page 9 No connection with the hub or radio signal range extender via Jeweller. The button battery is low. Icons The icons display some Button S states. To access them: 1. Sign in to the Ajax app 2. Select the space. 3. Go to the Devices tab. Icon Meaning Jeweller signal strength.
  • Page 10 Learn more States The states include information about the device and its operating parameters. The states of Button S can be found in Ajax apps: 1. Sign in to the Ajax app 2. Select the space. 3. Go to the Devices tab.
  • Page 11 How battery charge is displayed in Ajax apps How to replace the battery of the button Displays the operating mode of the button. Three modes are available: Panic. Operating mode Control. Mute Fire Alarm. Displays current brightness level of indicator light: Off (LED indication is disabled).
  • Page 12 Device No. The number of the device loop (zone). Settings To change Button S settings in the PRO Ajax apps: 1. Go to the Devices tab. 2. Select Button S from the list. 3. Go to Settings by clicking on the gear icon 4.
  • Page 13 Panic — sends an alarm when pressed. Control — controls automation devices by short or long (3 sec) pressing. Mute Fire Alarm — when pressed, mutes the alarm of Ajax fire detectors. The option is Interconnected Fire available if the Detectors Alarm feature is enabled.
  • Page 14 0.5 seconds between the presses. If the toggle is enabled, pressing a panic button Ajax sirens activates connected to the Alert with a siren if button is pressed system. Button S activates all sirens, regardless of the groups they are in.
  • Page 15 00:00 00:03 The button status is indicated with red or green LED indicators. Category Indication Event The button is not registered in Green LED flashes 6 times. any system. Adding to the system. Lights up green for a few Adding a button to the system. seconds.
  • Page 16 Button placement Button S can be secured on a surface or carried around. How to mount Button S To mount Button S on a surface (e.g. under a table), use Holder 1. Choose a location to install Holder. 2. Press the button to test whether the commands can reach the hub. If not, select another location or use a radio signal range extender When connecting Button S via the radio signal range extender, note that Button S...

  • Page 17: Maintenance

    When the battery has run down, the user will receive a notification in the Ajax app, and the LED indicator will smoothly light up red and go out each time the button is pressed.

  • Page 18: Warranty

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support first. In most cases, technical difficulties can be resolved remotely.
  • Page 19 Subscribe to the newsletter about safe life. No spam Email Subscribe...
